Features:
--120VAC 60Hz & 230VAC 50Hz Input
-- 12V/24V PWM Output
-- Flicker-free
-- Enclosure with junction Box
-- For forward & Recerse Phase,MLV,ELV
-- Metal Iron Junction Box IP66 Design
-- Waterproof Dry / Damp / Wet Location
-- Protection: OCP, OVP, SCP, OTP
-- 5 years warranty
-- UL/cUL 8750 Class 2, CE Approved
-- High Power factor,PF>0.95
-- Full Dimming Range:0-100%
-- Continuous & Smooth & Stable
-- NEMA 3R Rated

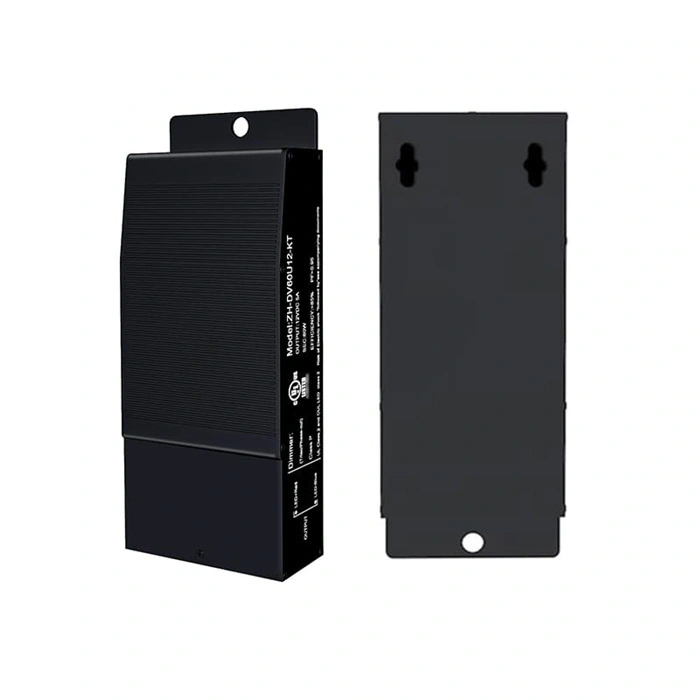

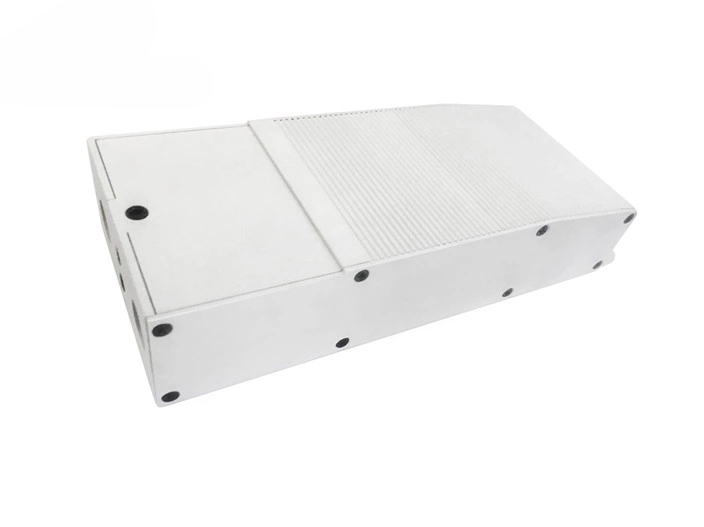

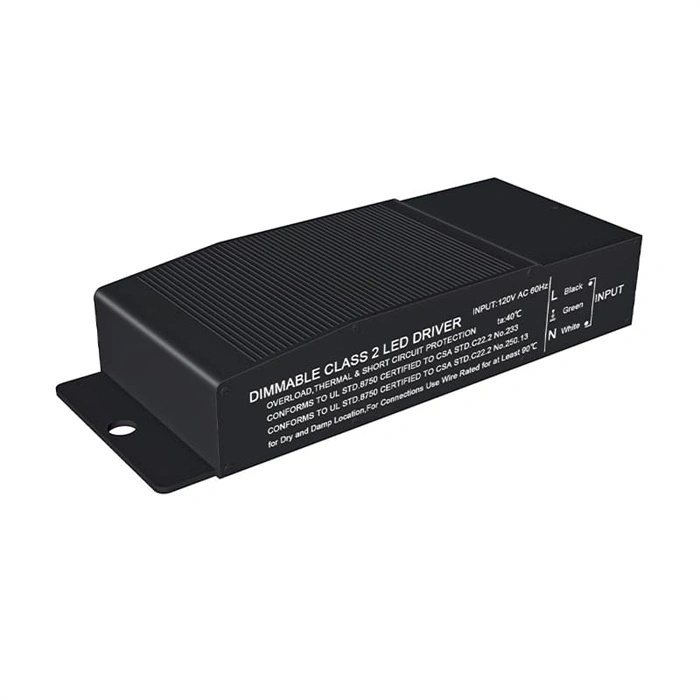

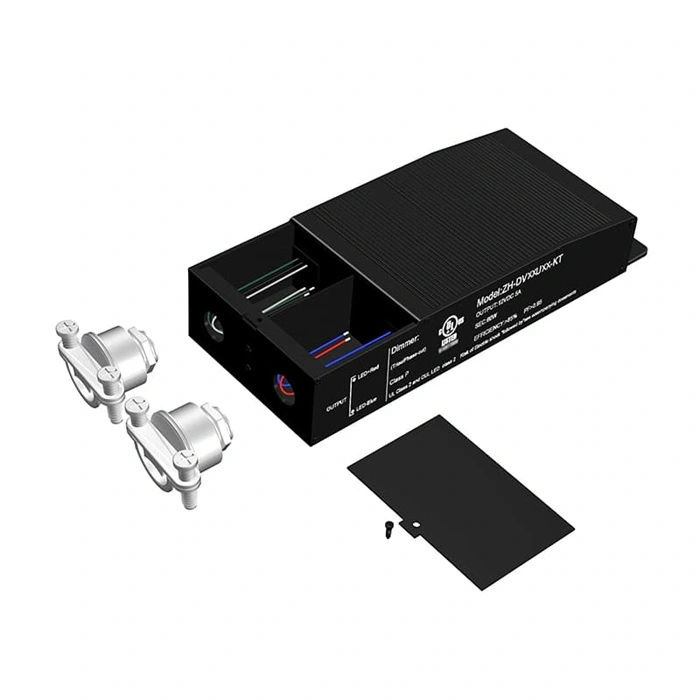

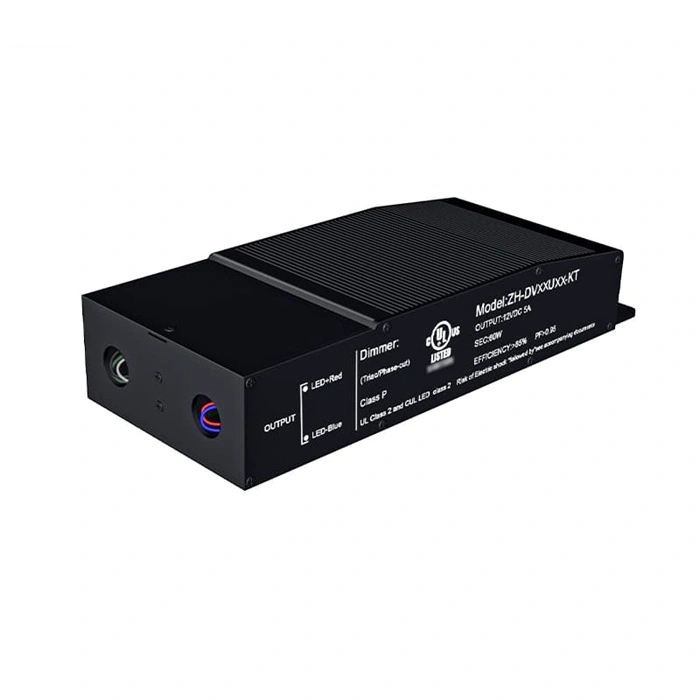

Constant Voltage 24V 96W Triac Dimmable Outdoor Junction Box Led Driver, Input 120VAC North America waterproof led driver certified to meet UL8750 Class 2 safety approvals. The Led Power Supply use low profile aluminum case that included 2 knock-outs to enable easy installation makes led driver the power solutions for led tape/strip, modules, LED bar light. Featuring US Level VI energy efficiency standards of up to 90% and higher, Nema 3R environment Protection Rating, dimmable Led Driver Power Supply can outdoor use and provide outstanding led dimming peformance.
Connect Drawing:
Product Model Number | Max.Watts | Output Voltage(V) | Output Current(A) | Effciency | Warranty | Certificate |
ZH-DV20U12-KT | 20W | 12V | 1.7A | 90% |
5 Years |
UL/cUL 8750 CE Class2 |
ZH-DV20U24-KT |
20W | 24V | 0.84A | 90% |
5 Years |
|
ZH-DV40U12-KT | 40W | 12V | 3.34A | 90% | 5 Years | |
ZH-DV40U24-KT |
40W | 24V |
1.67A |
90% |
5 Years |
|
ZH-DV60U12-KT |
60W |
12V |
5.0A |
90% |
5 Years |
|
ZH-DV60U24-KT |
60W |
24V |
2.5A |
90% |
5 Years |
|
ZH-DV75U24-KT |
75W |
24V |
3.13A |
91% |
5 Years |
|
ZH-DV96U24-KT | 96W |
24V | 4.0A |
91% |
5 Years |
Packing Info: | Pcs/CTN | Dimension/Carton | Dimension/unit | Weight/CTN | Weight/pcs |
OEM package | 25Pcs | 42*25*24.5cm | 229*78*45mm | 19Kg | 0.72Kg |
