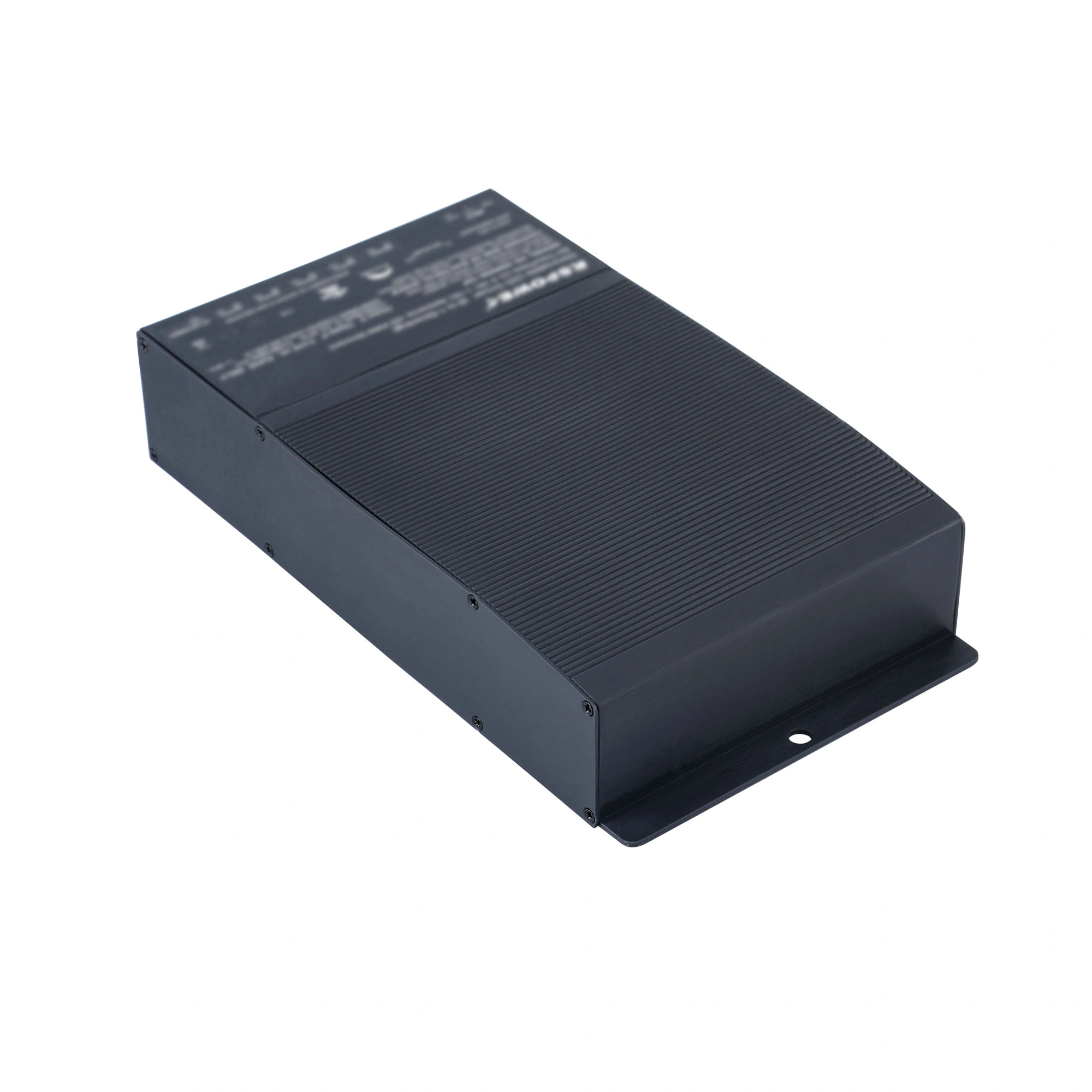

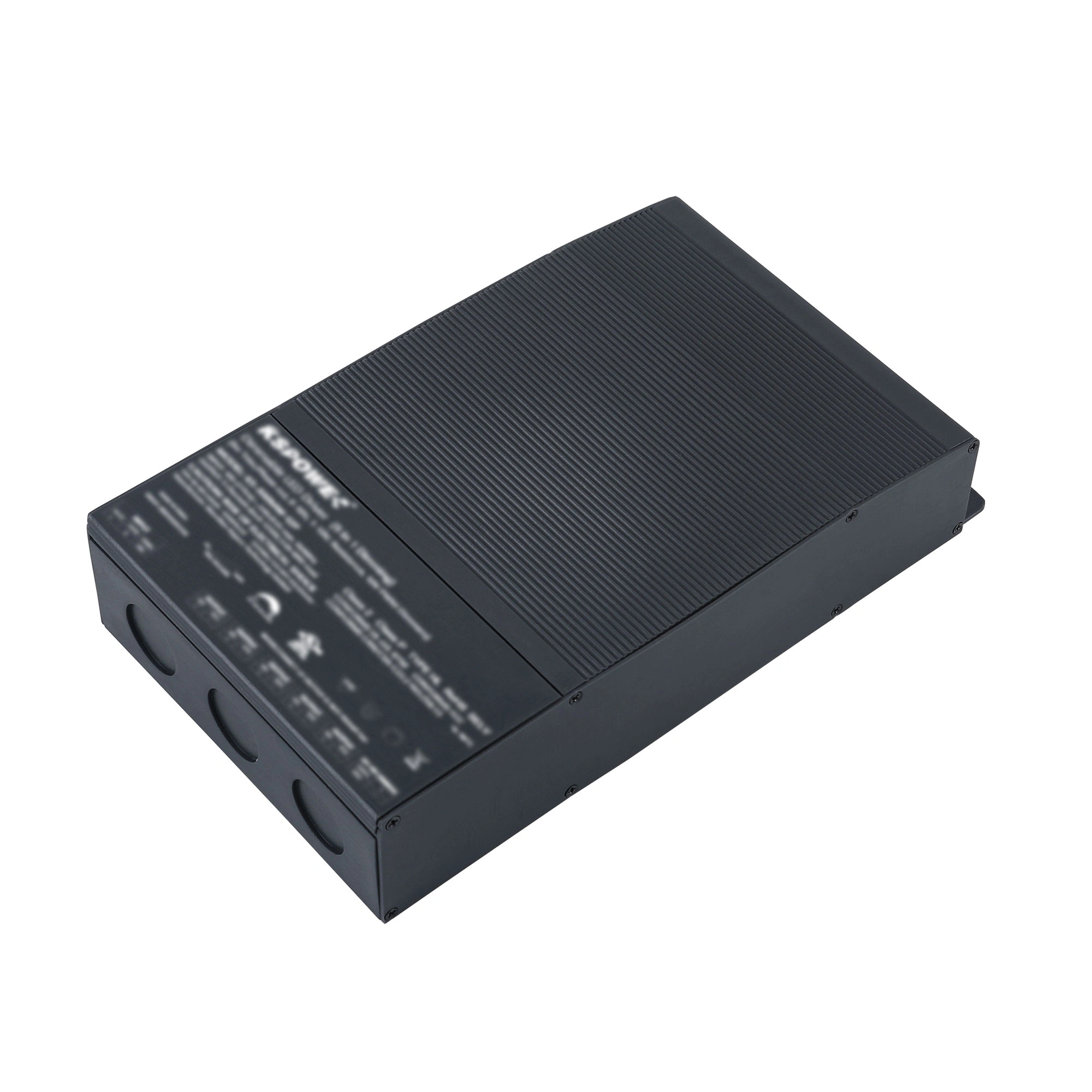

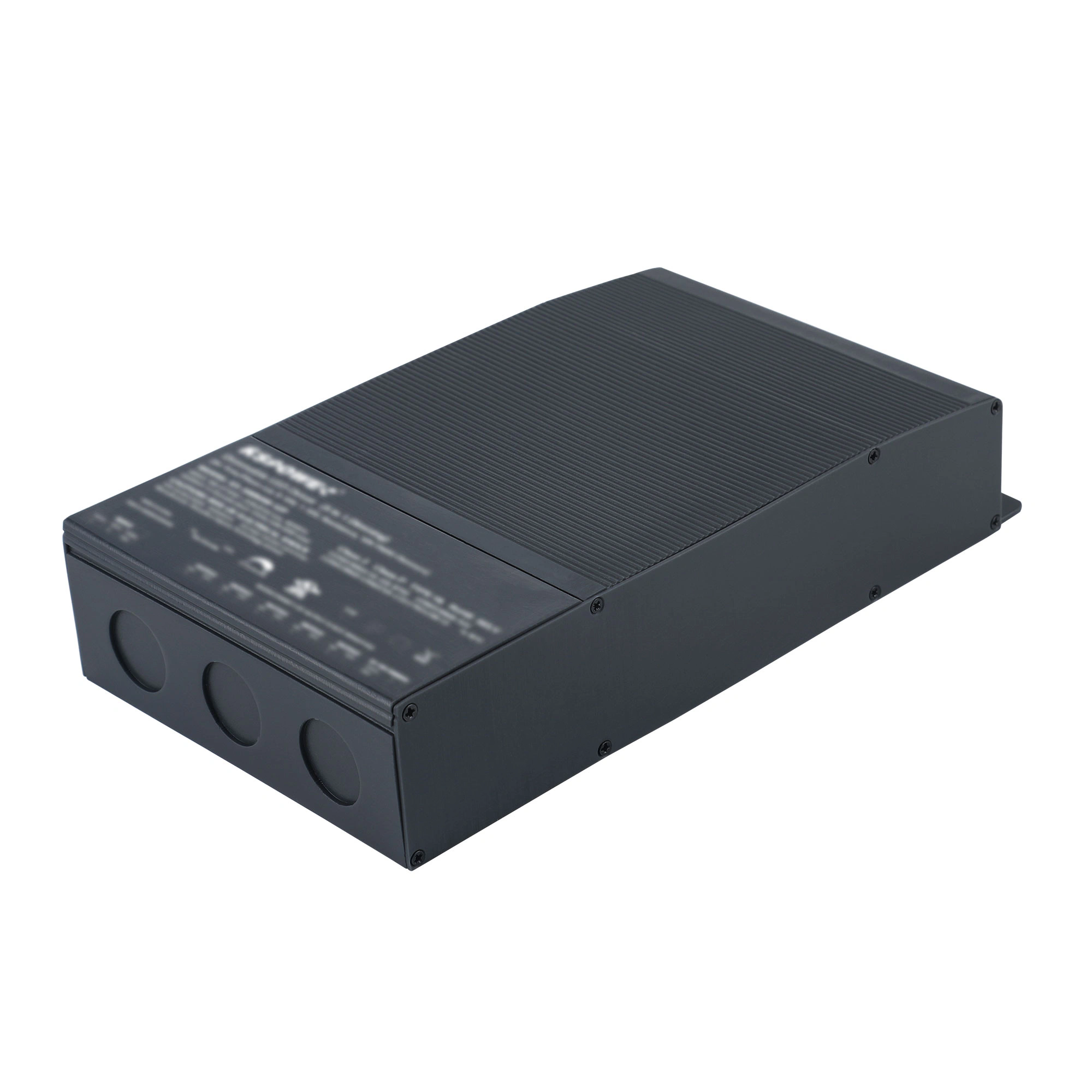

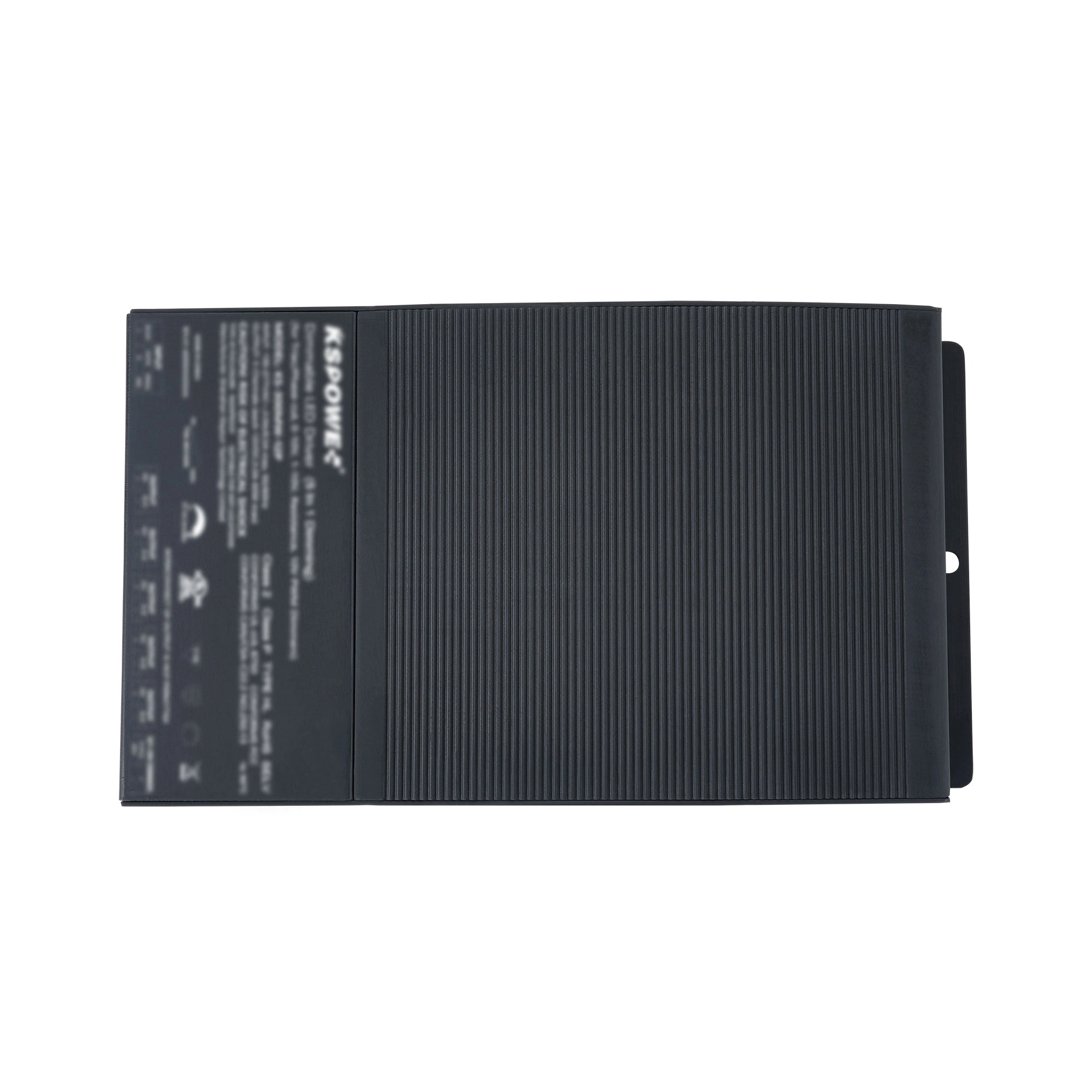

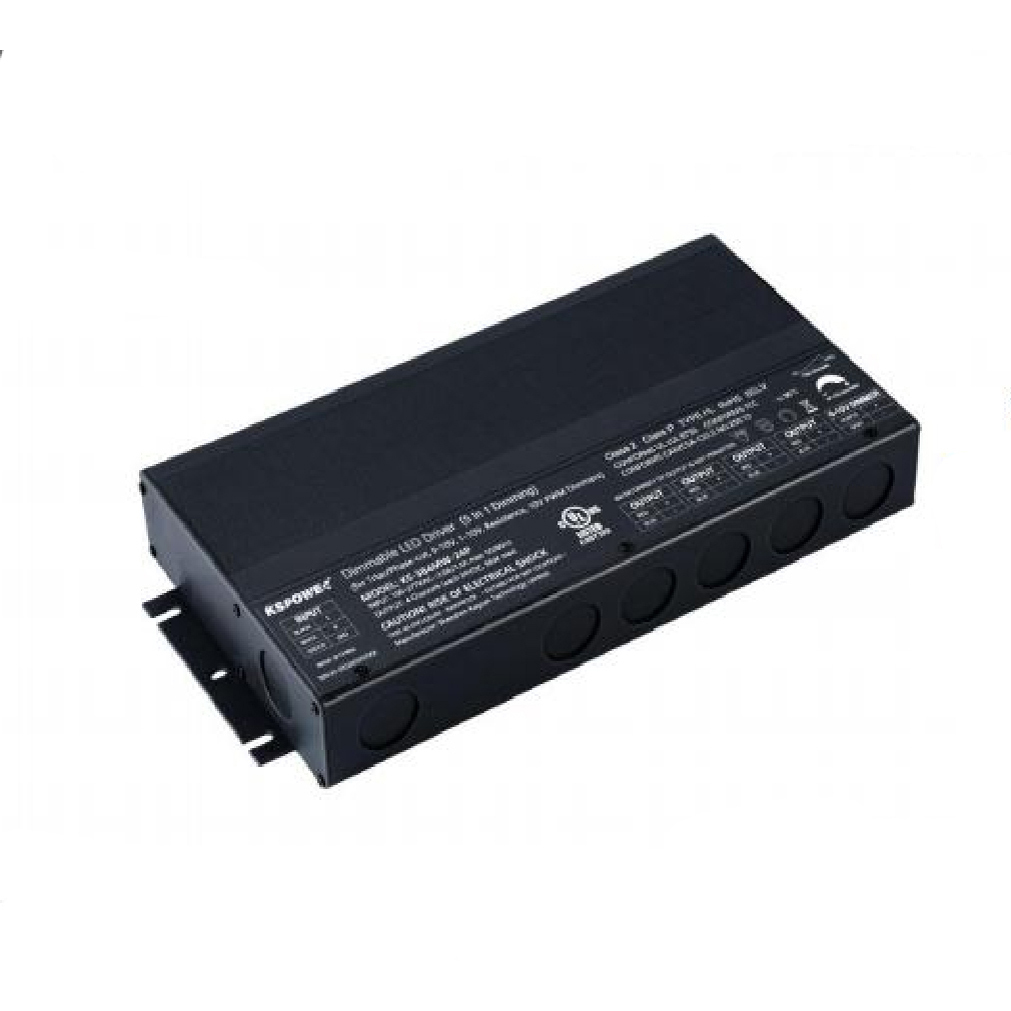

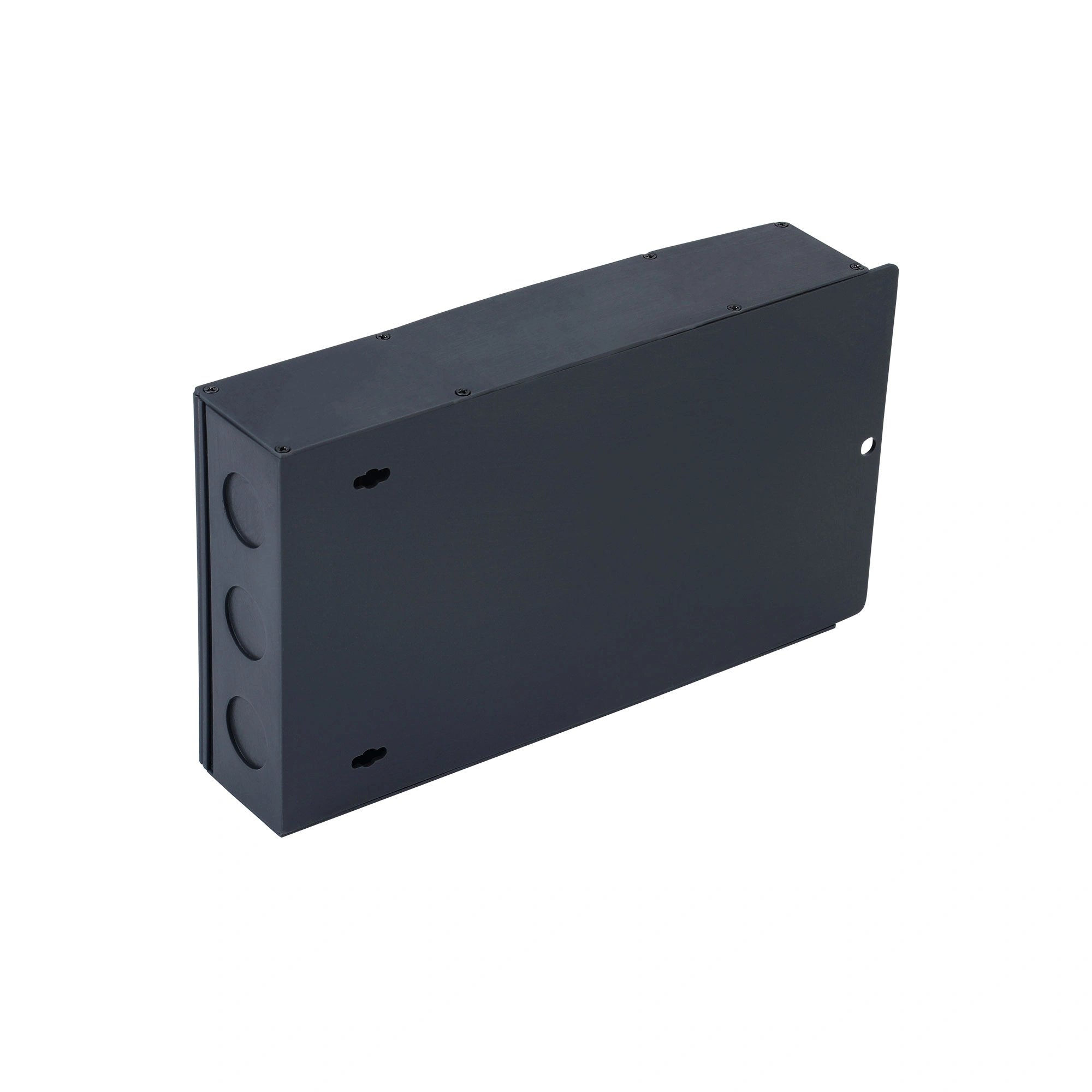

Multiple 12V 3*60W TRIAC or MLV / ELV Phase Dimmable LED driver

No.00603
Multiple TRIAC/Phase cut dimming ◆ TRIAC or MLV / ELV Phase Dimmable Available ◆UL8750 Class 2 UL/cUL listed ◆Protection: OCP, OVP, SCP, OTP ◆Typical lifetime > 50,000 hours ◆IP67 Rated Enclosure for Indoor and Outdoor
Output:
12V 3*60W (180Watt)
24V 3*60W (180Watt)
Dimmable Options:
MLV and reverse phase/trailing edge
ELV
TRIAC dimmers.
Output Current:
12V (3*V5A)
24V (3*2.5A)
  • Multiple 12V 3*60W TRIAC or MLV / ELV Phase Dimmable LED driver
  • Multiple 12V 3*60W TRIAC or MLV / ELV Phase Dimmable LED driver
  • Multiple 12V 3*60W TRIAC or MLV / ELV Phase Dimmable LED driver
  • Multiple 12V 3*60W TRIAC or MLV / ELV Phase Dimmable LED driver
  • Multiple 12V 3*60W TRIAC or MLV / ELV Phase Dimmable LED driver
  • Multiple 12V 3*60W TRIAC or MLV / ELV Phase Dimmable LED driver
Description

Multiple Channel Triac/Phase-cut Dimmable LED Driver

The Multiple 12V 3*60W phase cut dimmable led driver 180 Watt is one multiple channel solution, accept universal AC input voltage range from 100V to 277V, output voltage 12Volt 24Volt optional with greater operating efficiency and PFC function. The phase dim led power supply use low profile metal aluminum case with junction box makes the ac dimmable led power supply solutions for LED strips, LED sign, billboard and landscape lighting. The constant voltage led driver offers 3-channel 60W and meet UL Class 2 Class P SELV listed safety environment protection for indoor or outdoor use, the led lights power supply provide 5 years warranty and outstanding led dimming performance.


Features:

  • Multiple Channel Triac/phase-cut Dimming & Constant Voltage Led Driver
  • Driver Type: Class 2 Class P
  • Dimming:TRIAC or MLV / ELV Phase Dimmable Available
  • Multiple Channel Triac/Phase-cut Dimming & Constant Voltage Led Driver
  • Environmental: Dry and Damp, Wet location
  • Current Limiting Overload Protection
  • Smooth, flicker-free dimming to 1%, Constant power overload protection
  • Load: 0.01-100%
  • 5-Years Warranty
  • UL/cUL CE FCC RoHS Listed, SELV, Type HL
  • Compatible with a wide variety of LED products, including high-density and COB

Specification:

Input Voltage 100~277V AC 47~63Hz
Power Factor Build in active PFC, typical power factor>0.95, THD<10%@120V Max. load
NO. KS-180MW-12T KS-180MW-24T
Output Voltage 12V 24V
Rated Current 5-channel x 5.0A 5-channel x 2.5A
Rated Power 180W 3-channel 60W Class 2 (unloaded channels permitted)
Output Dimming Method Uses PWM method for dimmed low voltage output
Output Ripple (Peak-to-Peak) <5%
Storage TEMP. Humidity -40~+80℃(-40°F to 176°F),10~95%RH
Dim Functions 0-10V, 1-10V, 10V PWM, Resistance dimmers
Dimming Curve Linear
Flicker California Title 24 / JA8



Reliability:

1. Outdoor-rated NEMA 3R enclosure with corrosion-resistant stainless steel screws
2. Protected with a 5-year warranty

Application:

The multi-channel 0-10V dimmable led power supplies features switching different output mode, can be compatible with more different types of LED lamps, DC-DC design LED fixture, such as MR16, PAR, wall washer, linear lighting, LED strip/type.



Dimming Connect Drawing:

Using TRIAC/Phase cut dimming

1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.

2.Work with forward phase/leading edge, MLV and reverse phase/trailing edge ,ELV, TRIAC dimmers.

3.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
