24W Series Fixed Adapter

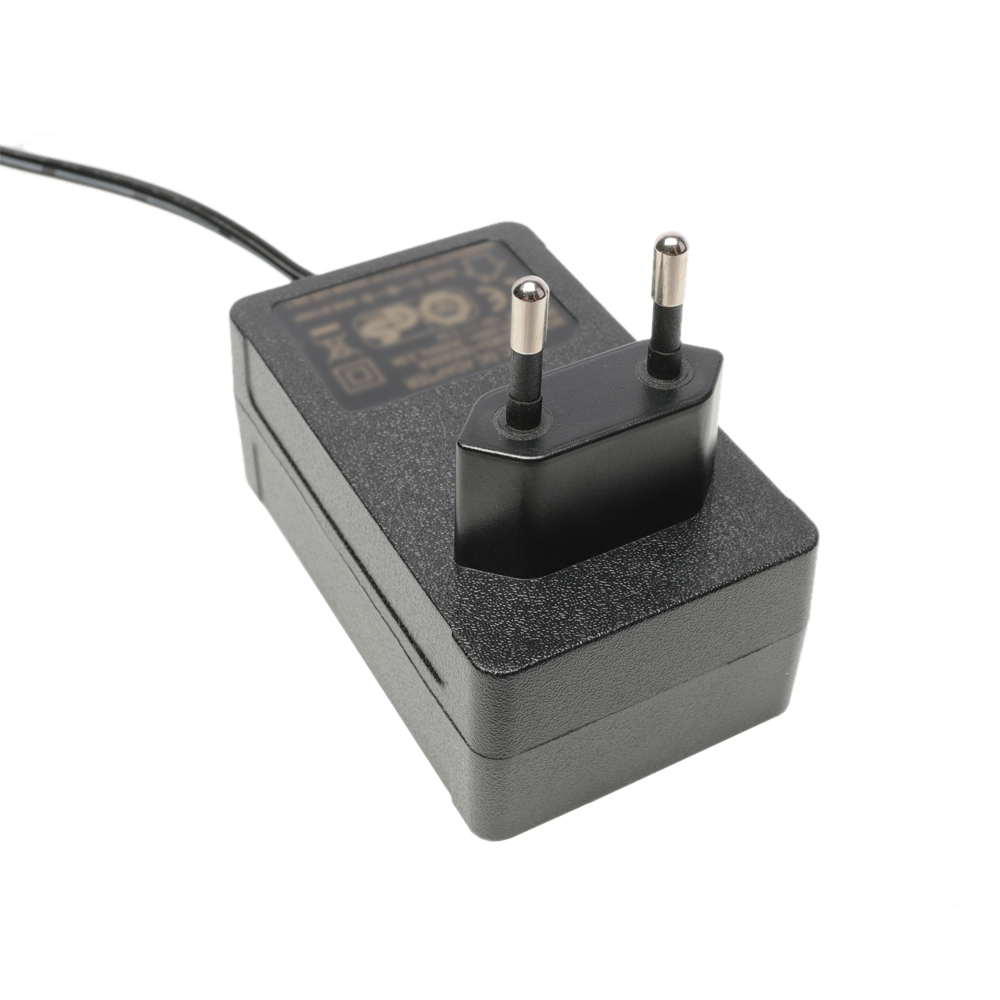

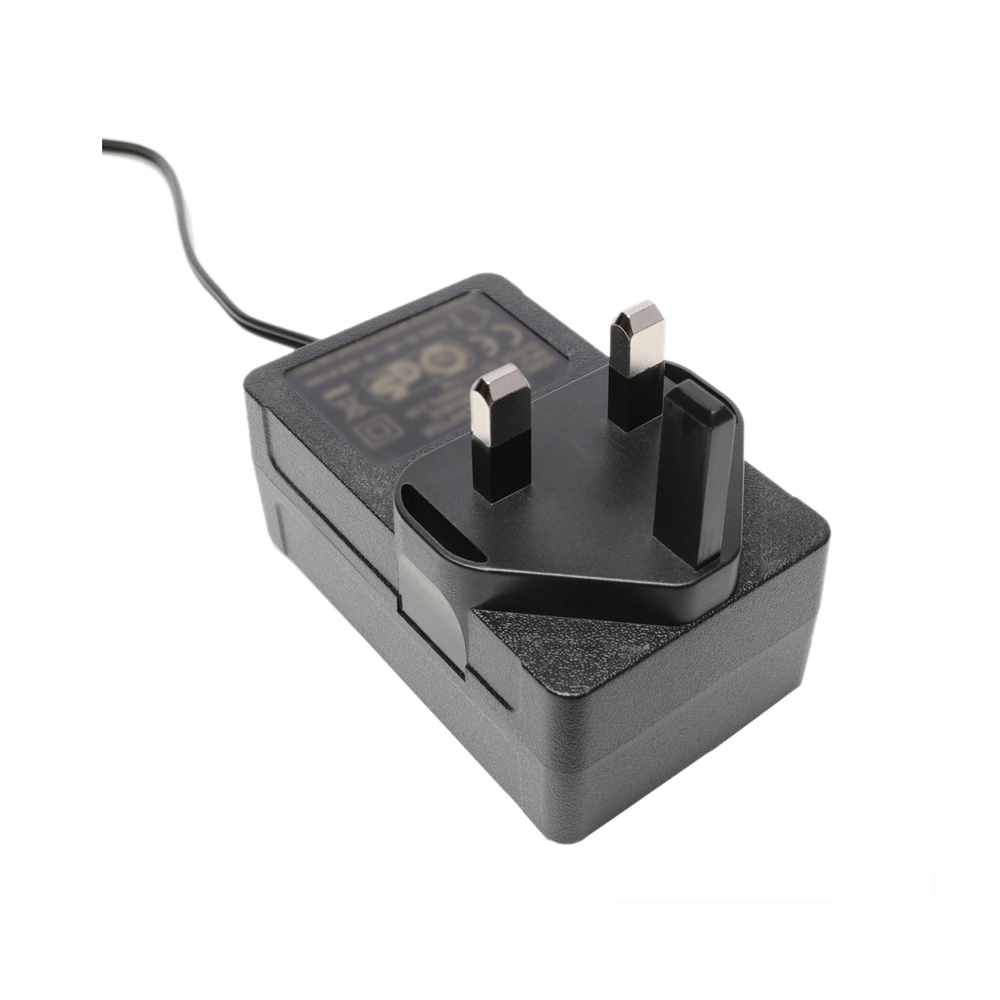

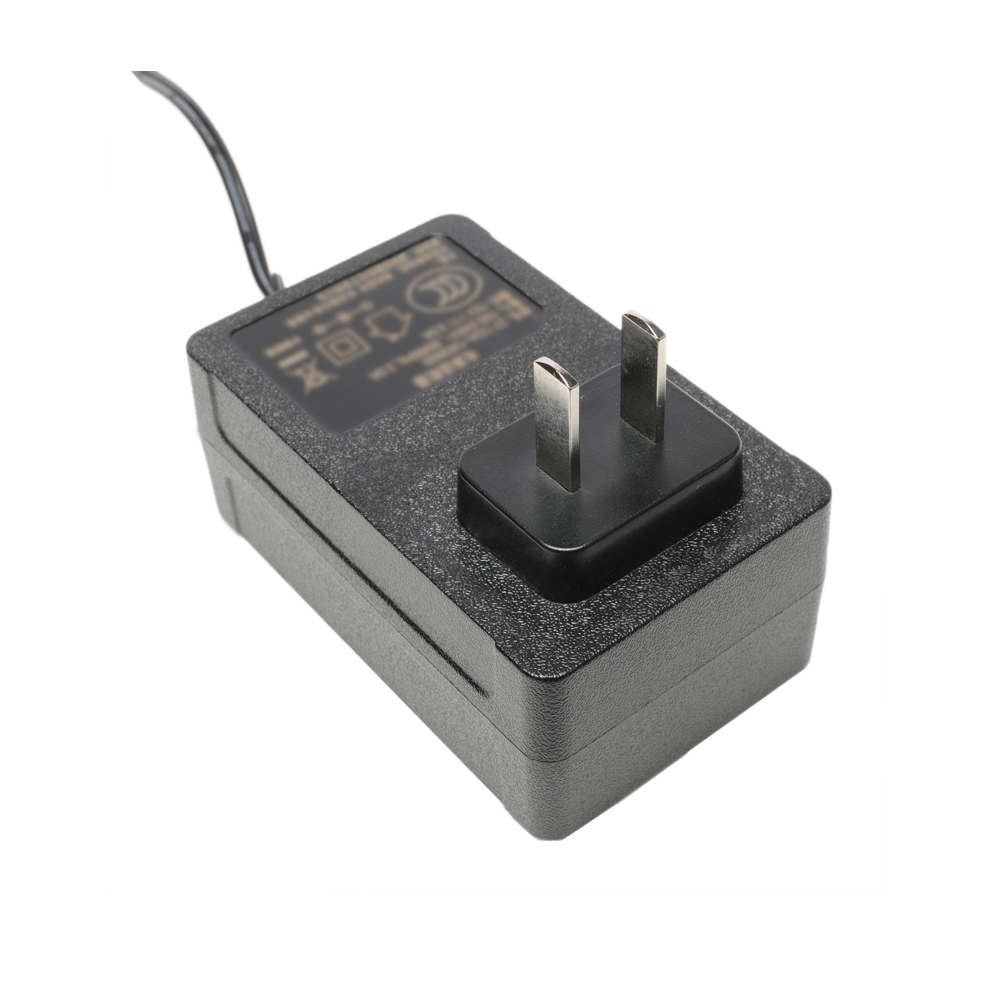

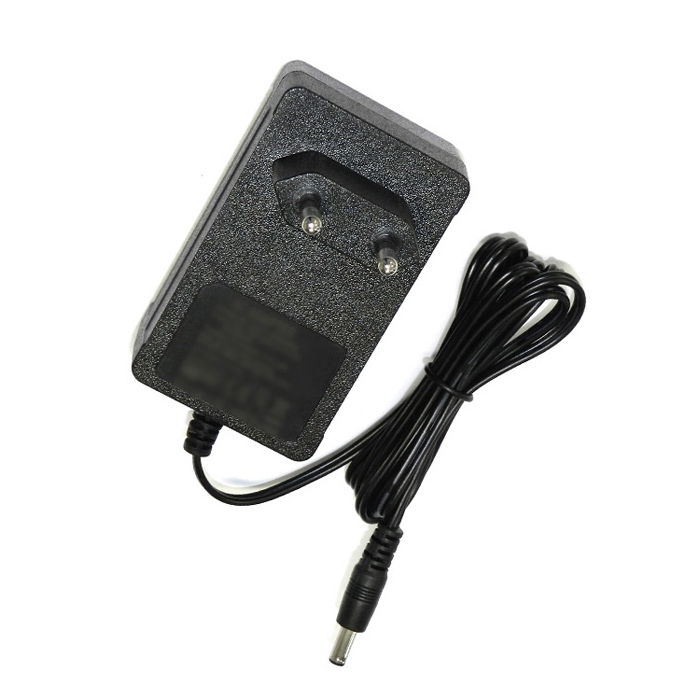

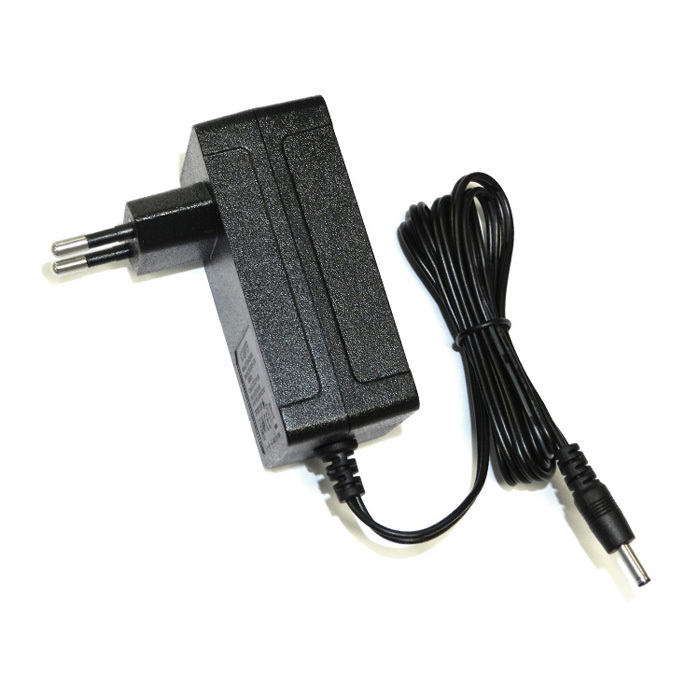

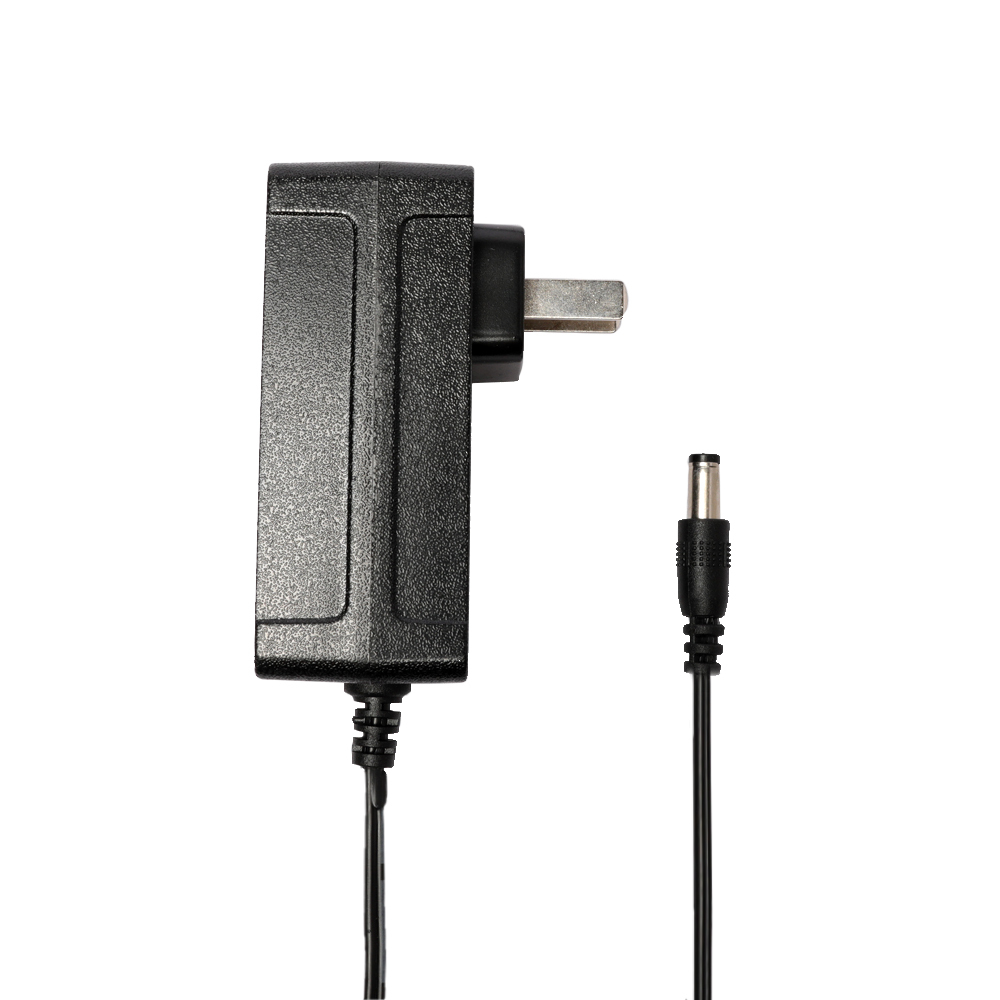

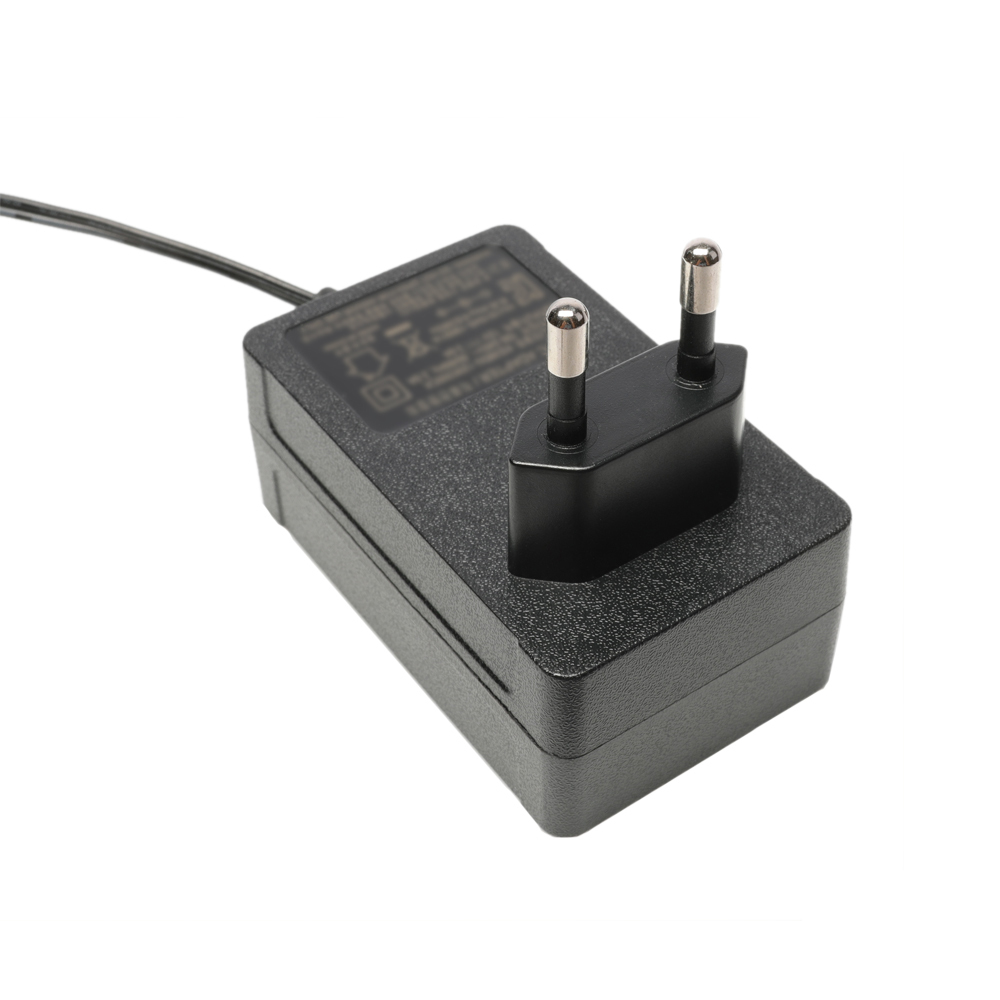

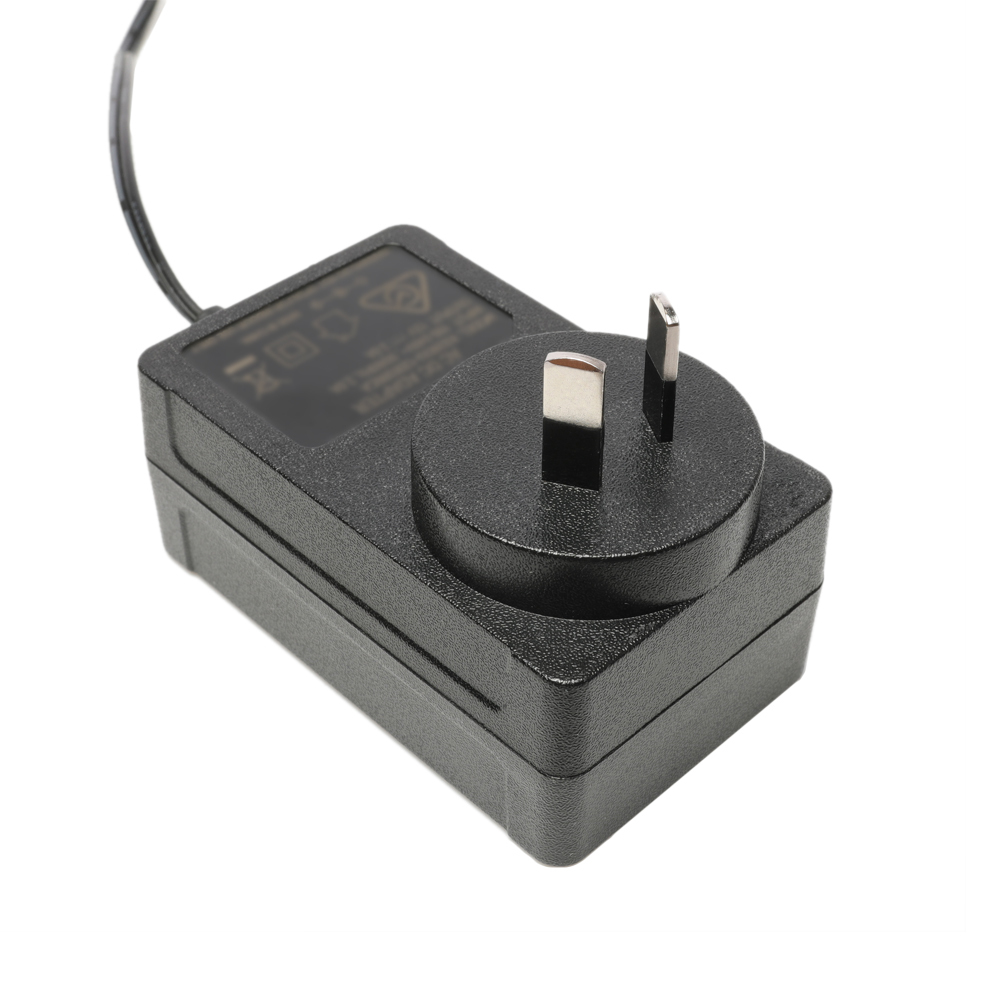

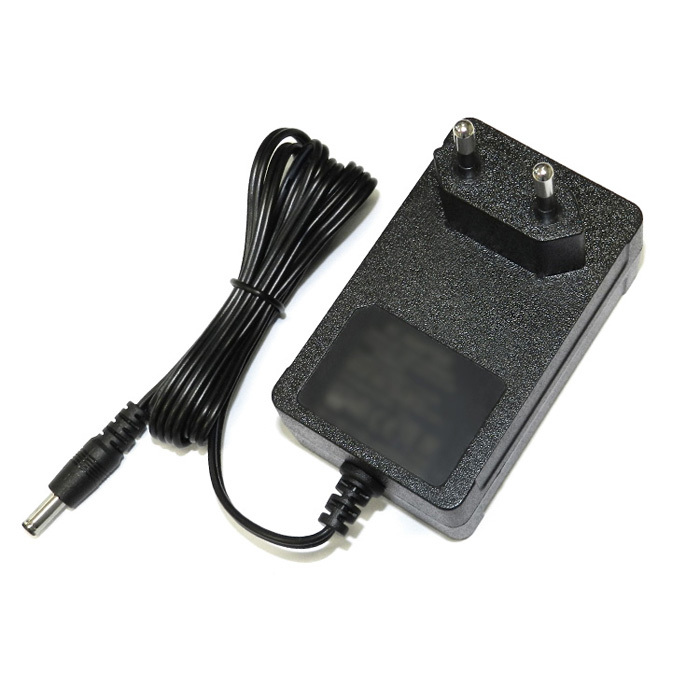

12V 1.25A 18W wall mounted Adapter with US AUS EU UK JP KR CN AC plug Fixed wall adapter

Item No.: 00178
12V 1.25A 18W wall-mounted Adapter
>Input Voltage:100-240VAC
>Rated Frequency:50/60Hz
>DC cable lenth:1.2M/1.5M/2.0M
>Dimension:77*47*43mm
>Energy Efficiency Level:VI
>MTBF:50000Hrs
>Warranty:3 Years
  • AC Plug:
    US
    AUS
    EU
    JP
    CN
    KR
Description Common Data Product Structure Packing & Shipping
Description

Product Description

12V 2A 24W wall mounted Adapter. US AUS UK EU CN KR JP ac plug can choose.This safety mark Power Supply is equipped with an AC plug EU type and Class 2 rated without earth pin, accepting the universal AC input voltage range. Featuring the working efficiency of level VI, low no-load power consumption below 0.1W, Universal AC DC Adapter provides safety protections for over current, over voltage and short circuit.

Features

◆ 12V 1.25A 18W wall mounted Adapter

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Compact Size, fully enclosed plastic case

◆ LED indicator for power on

◆ 100% full load burn-in test

◆ 3 years Warranty

Common Data

Model No.KS39DU-1200125

place of originChina

Output typeDC

Connection methodwall-mounted

UsageLaptop LED LCD...

Output TypeSingle Output

CertificationTUV GS UL CE KC PSE CCC UKCA...

ColorBlack / White

TypeOEM

ConnectionDesktop

Warranty3 Years

MaterialPC

Input100-240VAC 50-60HZ

EfficiencyLevel VI

ProtectionsOCP OVP SCP

DC ConnectorMale 5.5*2.5mm Or Custom

DC Cord1.2m Or Custom

AC PlugsUS/ UK/ AU/ EU/ KR/ CN (optional)

Input:

100-240V AC±10%50 / 60Hz

Work Environment:

0℃-40℃5%-90%RH

Storage Environment:

-20℃-85%℃5%-95%RH

Energy Efficiency:

Level VI

No Load Power Consumption:

<0.1〜0.21W

Ripple & Noise(max):

<120mVp-p

Line Regulation:

±2%

Load Regulation:

±5%

Material:

PC + ABS

Dimension(L*W*H):

77*47*31(mm)

AC plug:

US UK EU AUS KR CN JP optional

Color:

Black/White

Safety Certificates:

UL CUL CE KC TUV GS SAA RCM CB FCC RoHS PSE CCC VI

Safety Standards:

UL1310, UL62368, CSA22.2, TUV IEC/EN62368, AS/NZS 62368, GB4943, J62368(H22), K60950

Product Structure

Packing & Shipping
Packing Info: Pcs/CTN Dimension/Carton Dimension/unit Weight/CTN Weight/Pcs
Adapter 60Pcs 36*35.2*25cm 105*44*82mm 11Kg 0.155Kg
