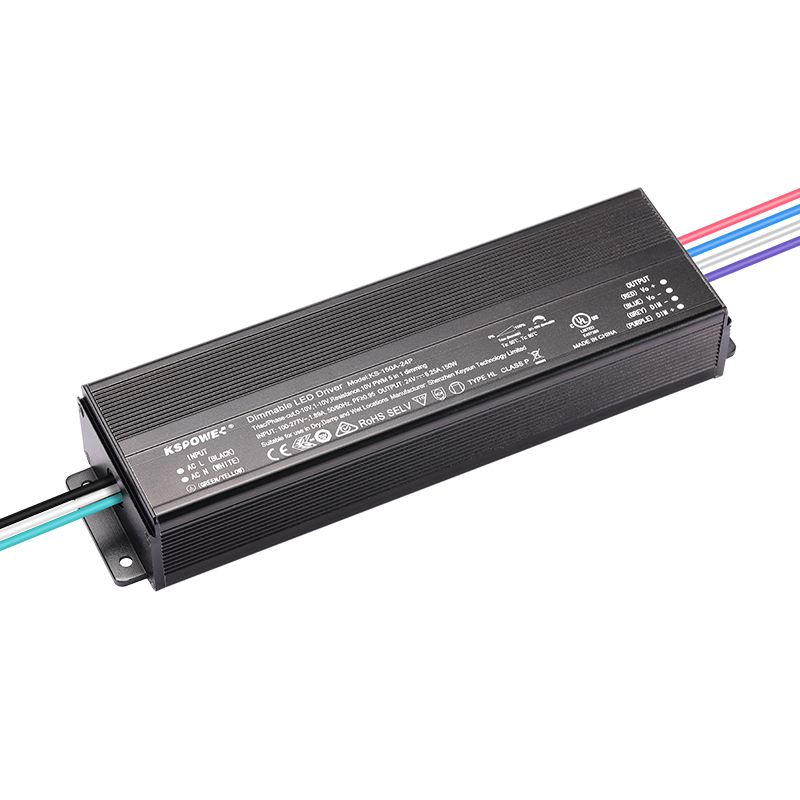

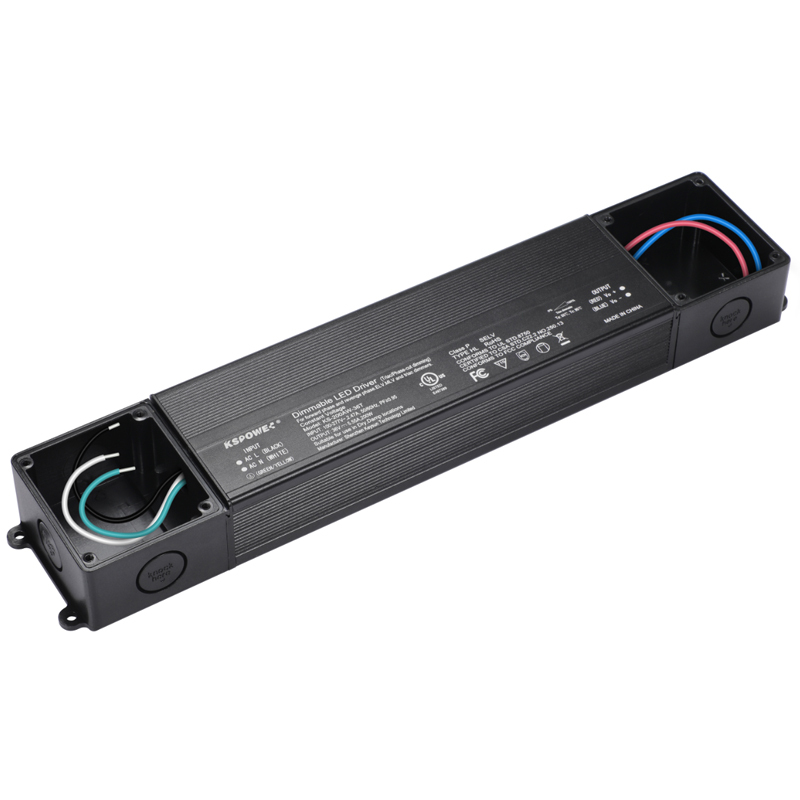

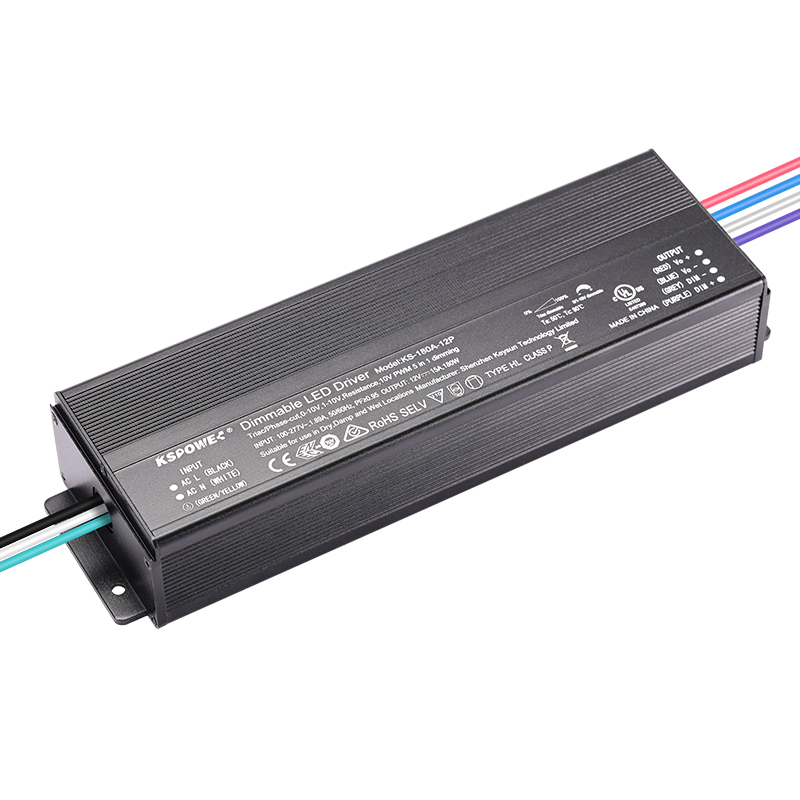

12V/24V/36V/48V 150W 5 in 1 Dimmable Junction Box LED Driver UL/cUL CE GS FCC RoHS LPS Listed

No.00134
12V24V/36V/48V 150W 5 In 1 Dimmable LED Driver 0-10V, 1-10V, TRIAC dimmable, 10V PWM signal, resistance. input voltage 100~277 VAC 47~63Hz.Featuring PFC function of up to 0.95 and higher, IP65 environment protection rating for indoor or outdoor use
Output:
12V150W
24V150W
36V150W
48V150W
Model No.:
KS-150AW-12
KS-150AW-24
KS-150AW-36
KS-150AW-48
Warranty & Dimmable functions:
5 Years
0-10v, 1-10v, 10v PWM signal, resistance4 in 1 dimmable
  • 12V/24V/36V/48V 150W 5 in 1 Dimmable Junction Box LED Driver UL/cUL CE GS FCC RoHS LPS Listed
  • 12V/24V/36V/48V 150W 5 in 1 Dimmable Junction Box LED Driver UL/cUL CE GS FCC RoHS LPS Listed
  • 12V/24V/36V/48V 150W 5 in 1 Dimmable Junction Box LED Driver UL/cUL CE GS FCC RoHS LPS Listed
  • 12V/24V/36V/48V 150W 5 in 1 Dimmable Junction Box LED Driver UL/cUL CE GS FCC RoHS LPS Listed
  • 12V/24V/36V/48V 150W 5 in 1 Dimmable Junction Box LED Driver UL/cUL CE GS FCC RoHS LPS Listed
  • 12V/24V/36V/48V 150W 5 in 1 Dimmable Junction Box LED Driver UL/cUL CE GS FCC RoHS LPS Listed
Description

Dimmable functions:

0-10V, 1-10V, TRIAC dimmable, 10V PWM signal, resistance

5 In 1 Dimmable LED Driver 150 Watt 12V/24V/36V/48V is black color, universal AC input voltage range from 100V-277VAC Constant Voltage LED Driver certified to meet UL cUL and CE GS FCC RoHS LPS Class P ENEC SELV safety approvals. The led pwm dimmable Power Supply use low profile aluminum case with junction box makes led dimmable driver the power solutions for LED strips, LED sign, billboard and landscape lightingFeaturing PFC function of up to 0.95 and higher, IP65 environment protection rating for indoor or outdoor use, the series 5 in 1 dimmable led power supply provide 5 years warranty and outstanding led dimming peformance.

Product Attributes

Model No.KS-150AW-XX

BrandKSPOWER

place of originChina

Output Power150W

Output typeSingle

The output voltage12V/24V/36V/48V

Power Supply ModeConstant Voltage Source

Efficiency92%

MaterialAluminum Case

Power Factor@Max. Load>0.95

ColorBlack

Input100v-277vac

Warranty5 Years

ProtectionsOCP OVP SCP LPS

Envir. Protection RatingIndoor Or Outdoor Use

Output TypePwm Output

CertificationTuv Gs Ce UL cUL

UsageLed Strip Light, Led Puck Light, Module Light

Features

-- IP65 Design and UL Dry / Damp / Wet Location

-- Single channel & PWM style output

-- TYPE HL for use in a Class I hazardous location

-- Flicker-free

-- Continuous Smooth

-- Protection: OCP, OVP, SCP, OTP

-- Limited Power Source

-- UL/cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved

-- Perfectly suitable for all kind of outdoor LED strip lighting, architectural, decorative and signage applications etc

◆ 100% full load burn-in test

◆ 3 years Warranty

Dimming Connect Drawing:
