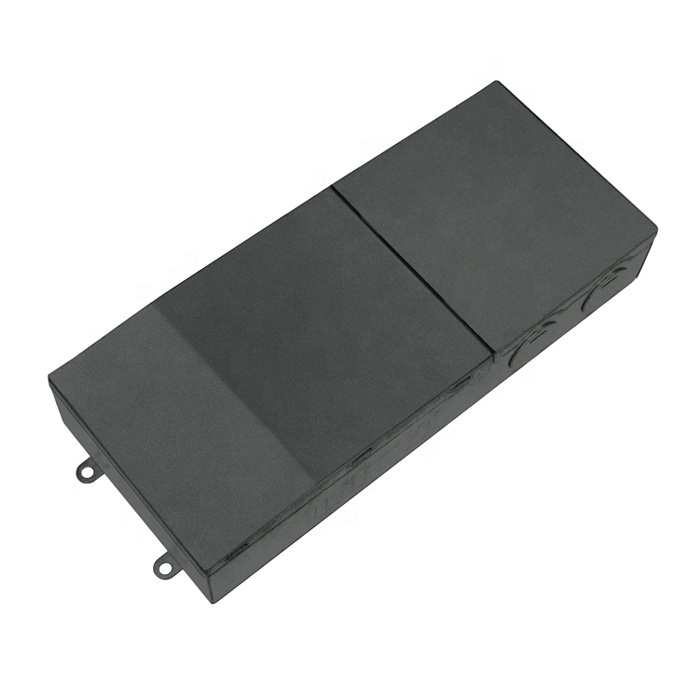

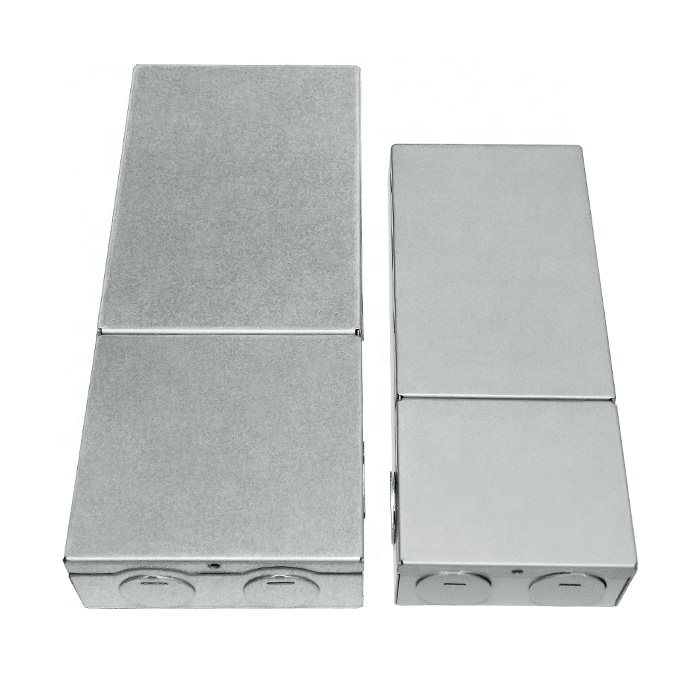

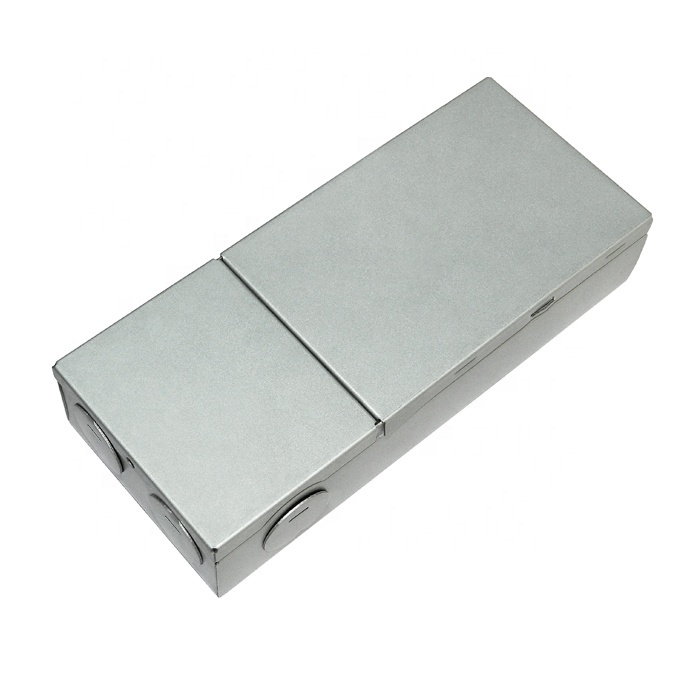

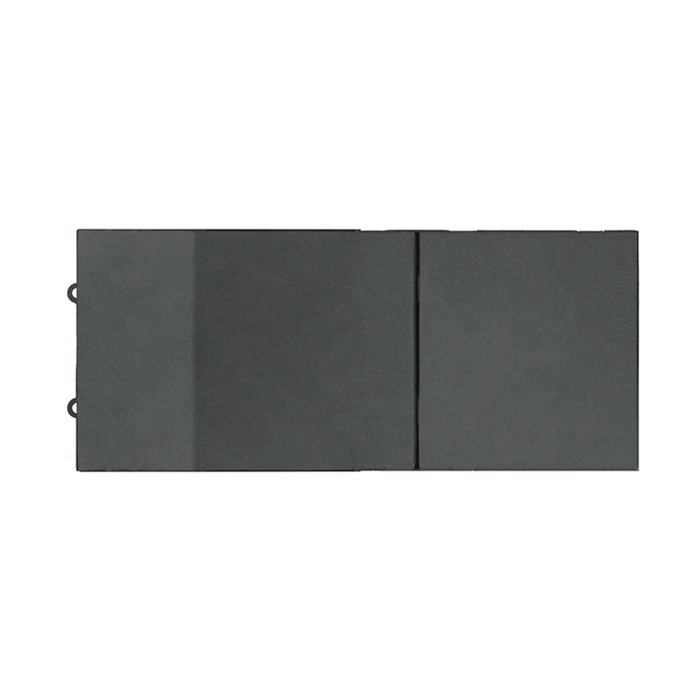

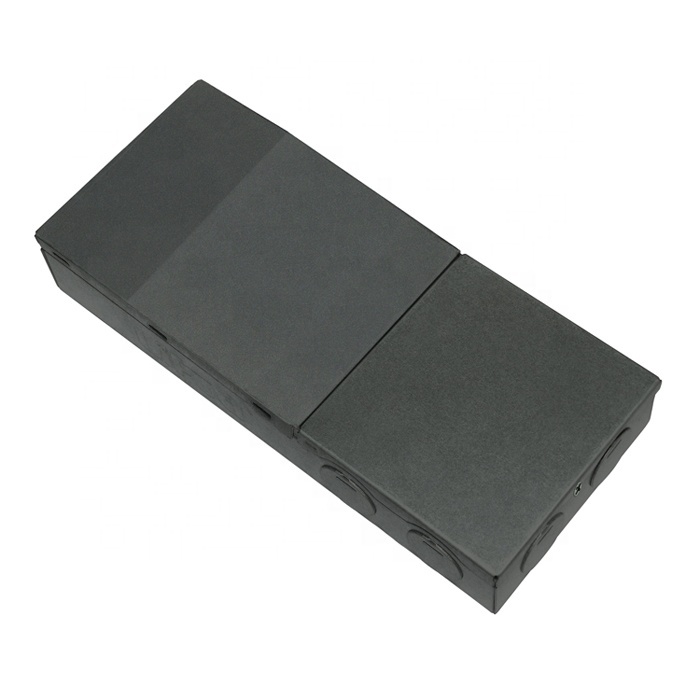

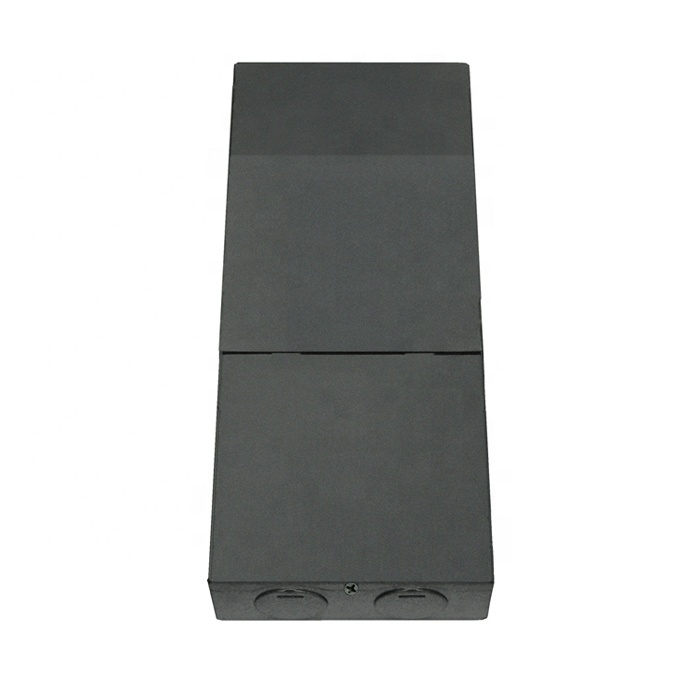

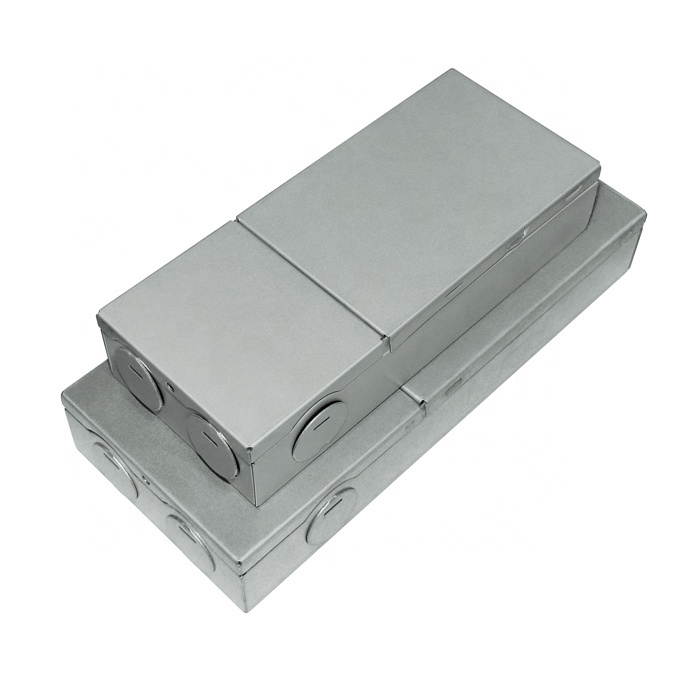

24V 60W junction box slim led driver ETL Class 2

12V/24V 60W junction box slim led driver ETL Class 2

No.00205

-- Class 2 Power Units -- High PFC and Efficiency (up to 92%) -- Flicker-free -- Metal Iron Junction Box IP20 Design -- Dry / Damp / Wet Location -- Protection: OCP, OVP, SCP, OTP -- 5 years warranty -- ETL/cETL, FCC, RoHS, Class 2, Class P Approve

Warranty:

5Years

OutPut:

12V 60W

24V 60W

Description

Non-dimmable LED Driver 100-120VAC Input voltage, 60W 12V or 24VDC output North America indoor led driver certified to meet ETL/cETL Class 2 safety approvals. The led Power Supply use low profile iron case with junction box to enable easy installation makes led driver the power solutions for led tape/strip, modules, LED bar light. Featuring US Level VI energy efficiency standards of up to 90% and higher, IP20 environment Protection Rating, non dimmable Led Driver Power Supply (with junction box) can indoor use and provide outstanding high PFC peformance.

Model No.: KS-ECA60W24

Brand: KSPower

place of origin: China

Output Power: 60W

Output type: Single

The output voltage:24V or 12V

Power Supply Mode: Constant Voltage Source

Efficiency: 92%

Material: Aluminum Case

Power Factor@Max. Load: >0.95

Color: Black/White/Silver

Input: 100v-120Vac

Warranty: 5 Years

Protections: OCP OVP SCP LPS

Envir. Protection Rating: Indoor Or Outdoor Use

Output Type: Pwm Output

Certification: ETL cETL Class 2 Class P FCC RoHS

Usage: Led Strip Light, Led Puck Light, Module Light

Features

-- Class 2 Power Units

-- High PFC and Efficiency (up to 92%)

-- Flicker-free

-- Metal Iron Junction Box IP20 Design

-- Dry / Damp / Wet Location

-- Protection: OCP, OVP, SCP, OTP

-- 5 years warranty

-- ETL/cETL, FCC, RoHS, Class 2, Class P Approved

Connect Drawing:
