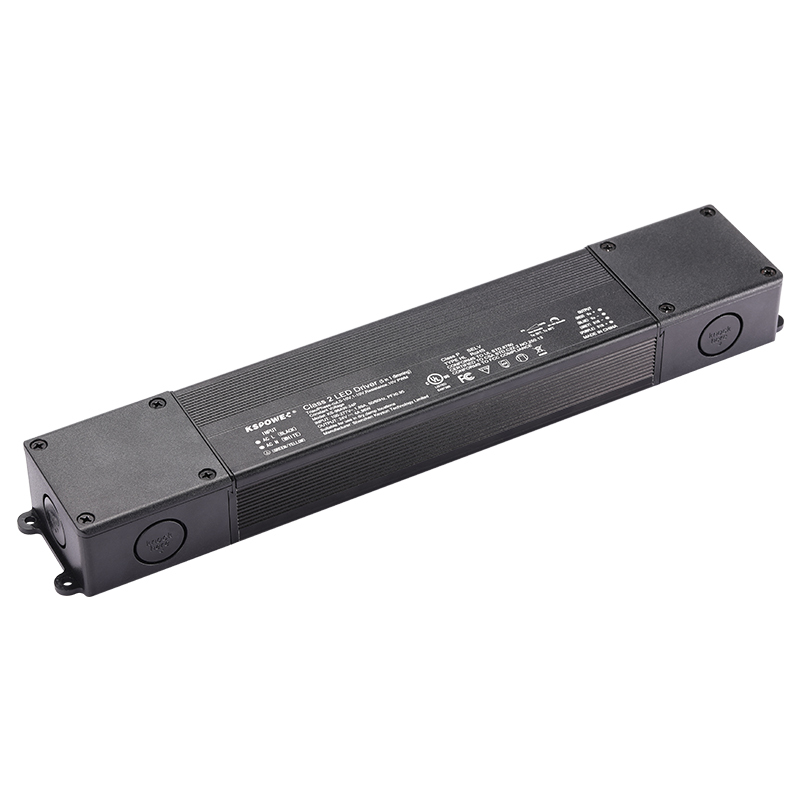

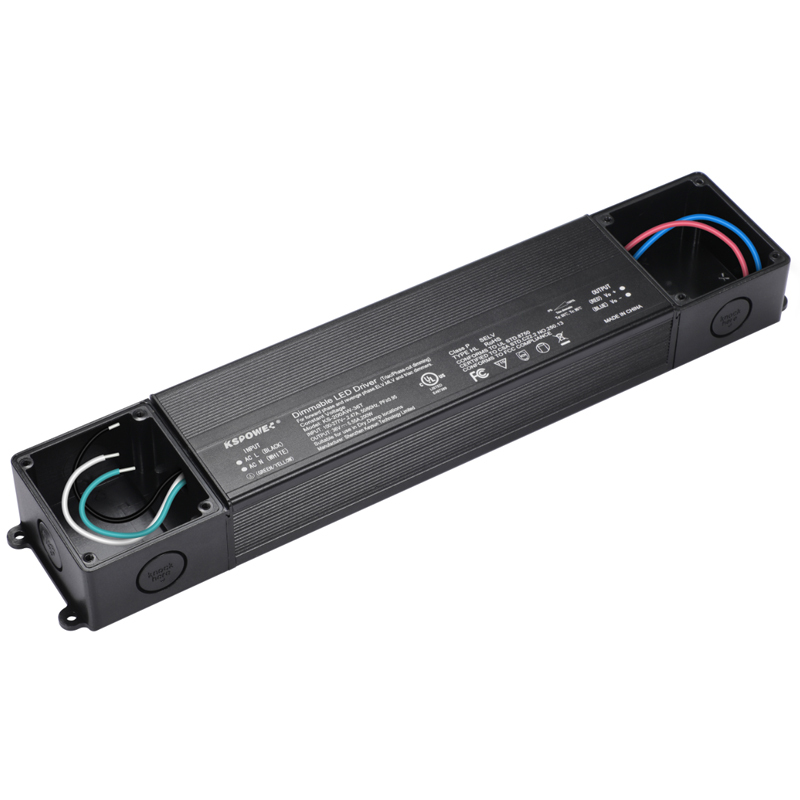

Class 2 UL8750 12V 60W 0-10V 1-10V PWM Resistance Dimmable LED driver 4 in 1 dimming with junction Box

No.00320
◆0-10V 1-10V PWM Resistance 4 in 1 Dimmable ◆UL8750 Class 2 UL/cUL listed ◆Universal AC input voltage 100-277VAC ◆Built-in active PFC function ◆Protection: OCP, OVP, SCP, OTP ◆Typical lifetime > 50,000 hours ◆IP65 Rated Enclosure for Indoor and Outd
Output:
12V60W
24V60W
36V60W
48V60W
Dimmable Options:
Triac/Phase-cut Dimmable
Non-dimmable
4 in 1 dimmable
5 in 1 dimmable
Color:
Black
White
  • Class 2 UL8750 12V 60W 0-10V 1-10V PWM Resistance Dimmable LED driver 4 in 1 dimming with junction Box
  • Class 2 UL8750 12V 60W 0-10V 1-10V PWM Resistance Dimmable LED driver 4 in 1 dimming with junction Box
  • Class 2 UL8750 12V 60W 0-10V 1-10V PWM Resistance Dimmable LED driver 4 in 1 dimming with junction Box
  • Class 2 UL8750 12V 60W 0-10V 1-10V PWM Resistance Dimmable LED driver 4 in 1 dimming with junction Box
  • Class 2 UL8750 12V 60W 0-10V 1-10V PWM Resistance Dimmable LED driver 4 in 1 dimming with junction Box
  • Class 2 UL8750 12V 60W 0-10V 1-10V PWM Resistance Dimmable LED driver 4 in 1 dimming with junction Box
Description

0-10V 1-10V PWM Resistance 4 in 1 Dimmable LED Driver 60W 12V is one black color, universal AC input voltage range from 100V-277VAC Constant Voltage LED Driver certified to meet UL cUL and CE GS FCC RoHS safety approvals. The led dimmable Power Supply use low profile aluminum case with junction box makes led dimmable driver the power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PFC function of up to 0.95 and higher, IP67 environment Protection Rating for indoor or outdoor use, Our products provide 5 years warranty and outstanding led dimming peformance.

Product Attributes

Model No.KS-60AW-12O

BrandKSPOWER

place of originChina

Output Power60W

Output typeSingle

The output voltage12V

Power Supply ModeConstant Voltage Source

Efficiency93%

MaterialAluminum Case

PFC Max.>0.98

ColorBlack

Input100v-277vac

Warranty5 Years

ProtectionsOCO OVP SCP LPS

Envir. Protection RatingIndoor Or Outdoor Use

Output TypePwm Output

CertificationTUV GS CE UL

UsageLed Strip Light, Led Puck Light, Module Light


Features

Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use

Single Channel & Constant Voltage mode

Output Voltage: 12Volt, 24Volt, 36Volt, or 48Volt options

Driver Type: Class 2 Class P

Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box

Dimming:  TRIAC or MLV / ELV Phase Dimmable Available

Environmental: Dry and Damp

Wiring Compartments with Knock-Outs for Clean and Easy Installation

Current Limiting Overload Protection

Flicker-Free

Smooth Ripple Free Output Voltage

IP65 Rated Enclosure for Indoor and Outdoor Use

5-Years Warranty

UL/cUL CE FCC RoHS ENEC GS Listed, SELV,

Dimming Connect Drawing:
