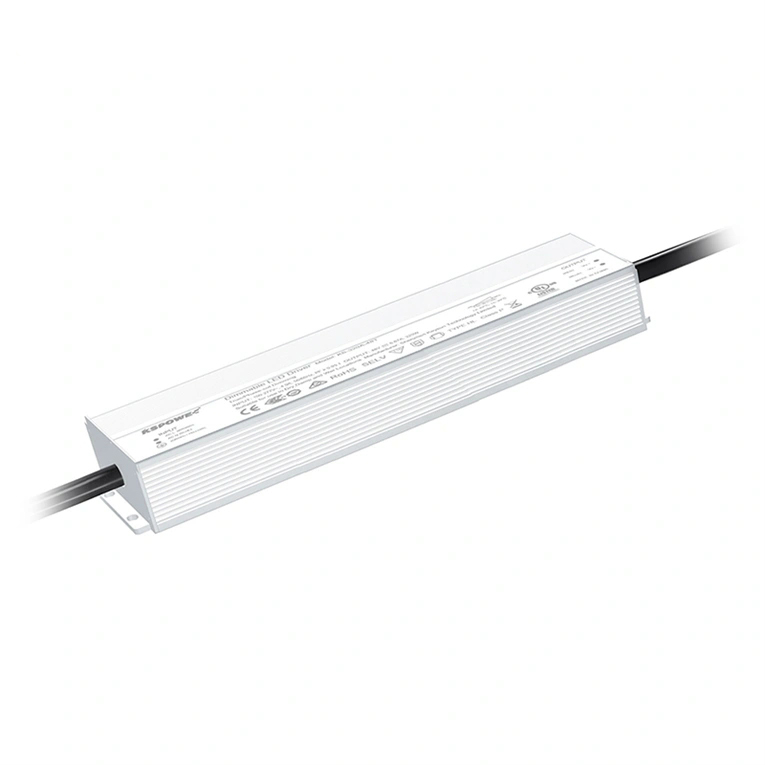

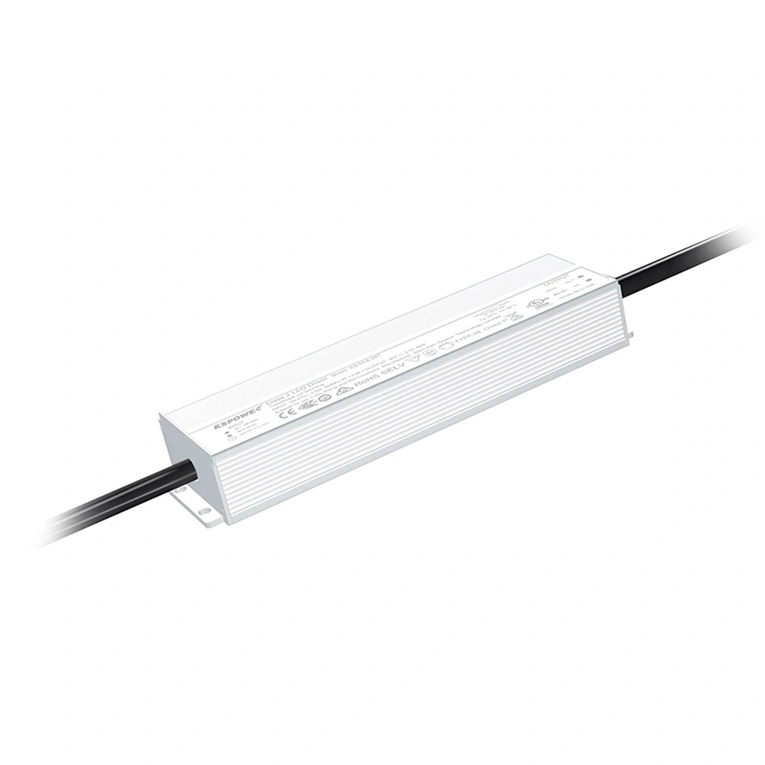

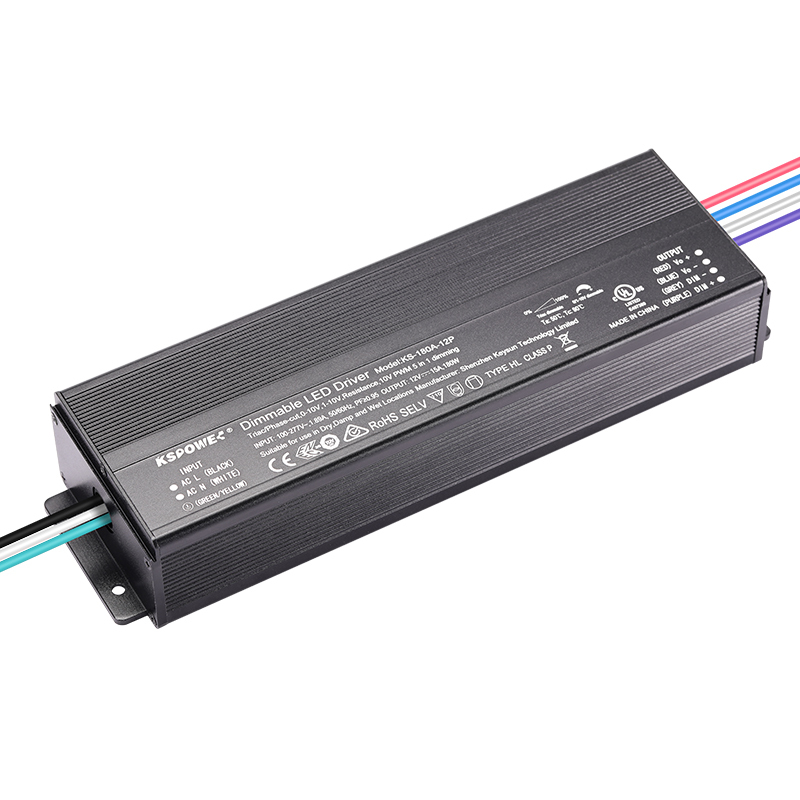

5 in 1 dimmable LED Driver UL8750 12V 180W 0-10V 1-10V 10V PWM Resistance Dimmable LED driver with junction Box

Item No.: 00341
5 in 1 dimming
◆0-10V,1-10V,TRIAC dimmable,10V PWM signal,resistance
◆UL8750 Class P UL/cUL listed
◆Universal AC input voltage 100-277VAC
◆Protection: OCP, OVP, SCP, OTP
◆Typical lifetime > 50,000 hours
◆IP67 Rated Enclosure for Indoor and Outdoor
  • Output:
    12V 180W
  • Dimmable Options:
    5 in 1 dimmable
    4 in 1 dimmable
    Triac/Phase-cut Dimmable
    Non-dimmable
  • Color:
    Black
    White
  • Model number:
    KS-180AW-12P
    KS-180AW-12T
    KS-180AW-24O
    KS-180AW-12
Description Model In the list Product Structure Packing & Shipping
Description
0-10V, 1-10V, Phase-cut, 10V PWM Signal, Resistor 5 in 1 Dimmable LED Driver
12V 180W
5 In 1 Dimmable LED Driver is black or White color, universal AC input voltage range from 100V-277VAC Constant Voltage LED Driver certified to meet UL cUL and CE GS FCC RoHS LPS Class P ENEC SELV safety approvals. The led pwm dimmable Power Supply use low profile aluminum case with junction box makes led dimmable driver the power solutions for LED strips, LED sign, billboard and landscape lightingFeaturing PFC function of up to 0.95 and higher, IP65 environment protection rating for indoor or outdoor use, the series 5 in 1 dimmable led power supply provide 5 years warranty and outstanding led dimming peformance.


Product Attributes

Model No.KS-180AW-12P

BrandKSPOWER

place of originChina

Output Power180W

Output typeSingle

The output voltage12V

Power Supply ModeConstant Voltage Source

Efficiency93%

MaterialAluminum Case

PFC Max.>0.98

ColorBlack

Input100v-277vac

Warranty5 Years

ProtectionsOCO OVP SCP LPS

Envir. Protection RatingIndoor Or Outdoor Use

Output TypePwm Output

CertificationTUV GS CE UL cUL

UsageLed Strip Light, Led Puck Light, Module Light


Features:
Dimmable Functions: 0-10V, 1-10V, TRIAC dimmable, 10V PWM signal, resistance
Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
Constant Voltage mode
Output Voltage: 12Volt, 24Volt, 36Volt, or 48Volt options
Driver Type: Class P
Enclosure:LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
Dimming:  TRIAC or MLV / ELV Phase Dimmable Available
Environmental: Dry and Damp
Wiring Compartments with Knock-Outs for Clean and Easy Installation
Current Limiting Overload Protection
Flicker-Free
Smooth Ripple Free Output Voltage
IP65 Rated Enclosure for Indoor and Outdoor Use
5-Years Warranty
UL/cUL CE FCC RoHS ENEC GS Listed.SELV.

Dimming Connect Drawing:

Model In the list
Product Model Number Max.Watts Output Voltage(V) Output Current(A) PF Warranty
KS-180AW-12P
180W
12V
15A 0.98(115VAC)
5 Years

Product Structure
Packing & Shipping
Packing Info: Pcs/CTN Dimension/Carton Dimension/unit Weight/CTN Weight/pcs
OEM package 15Pcs 40*10*16cm 382*65*45mm 22Kg 1.4KG
