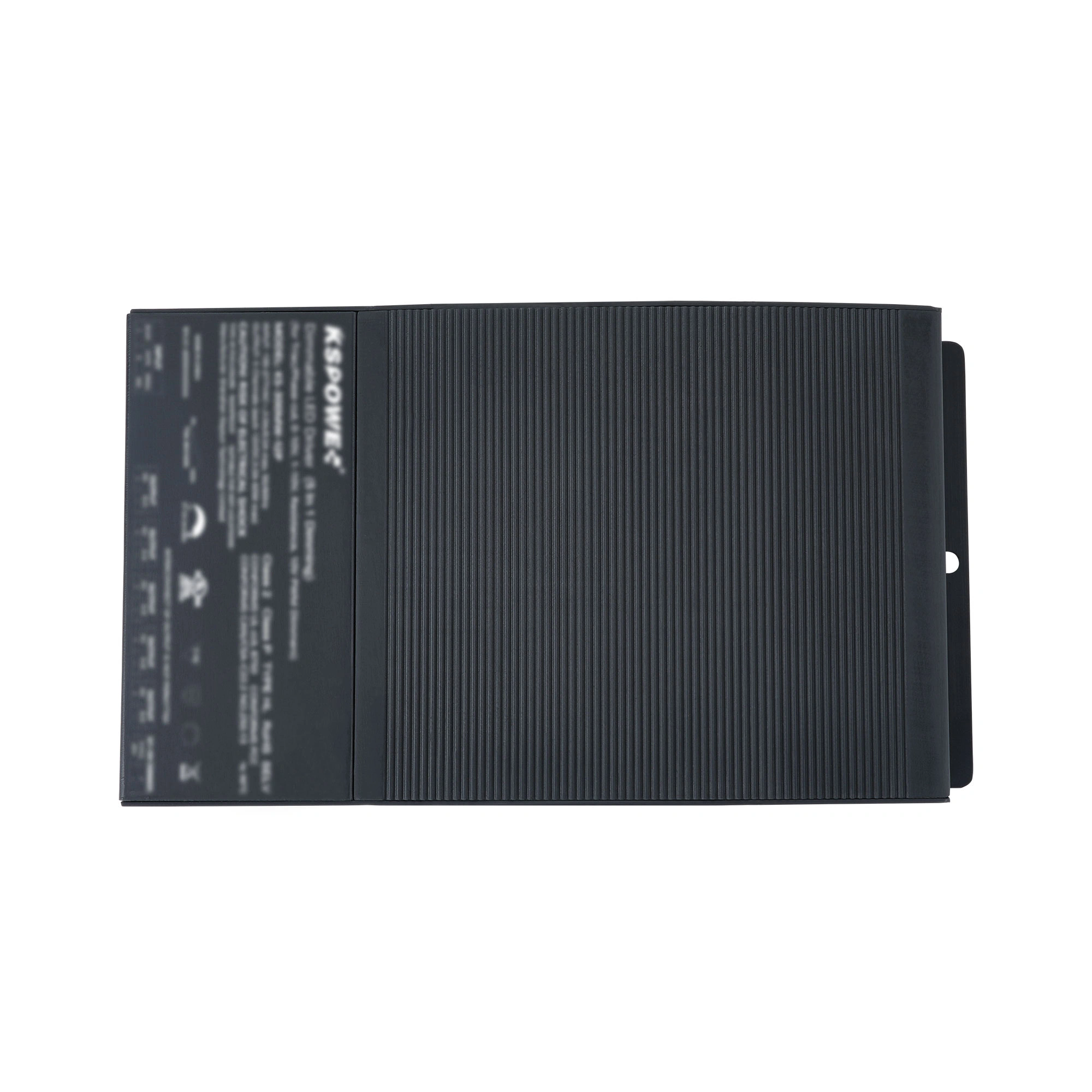

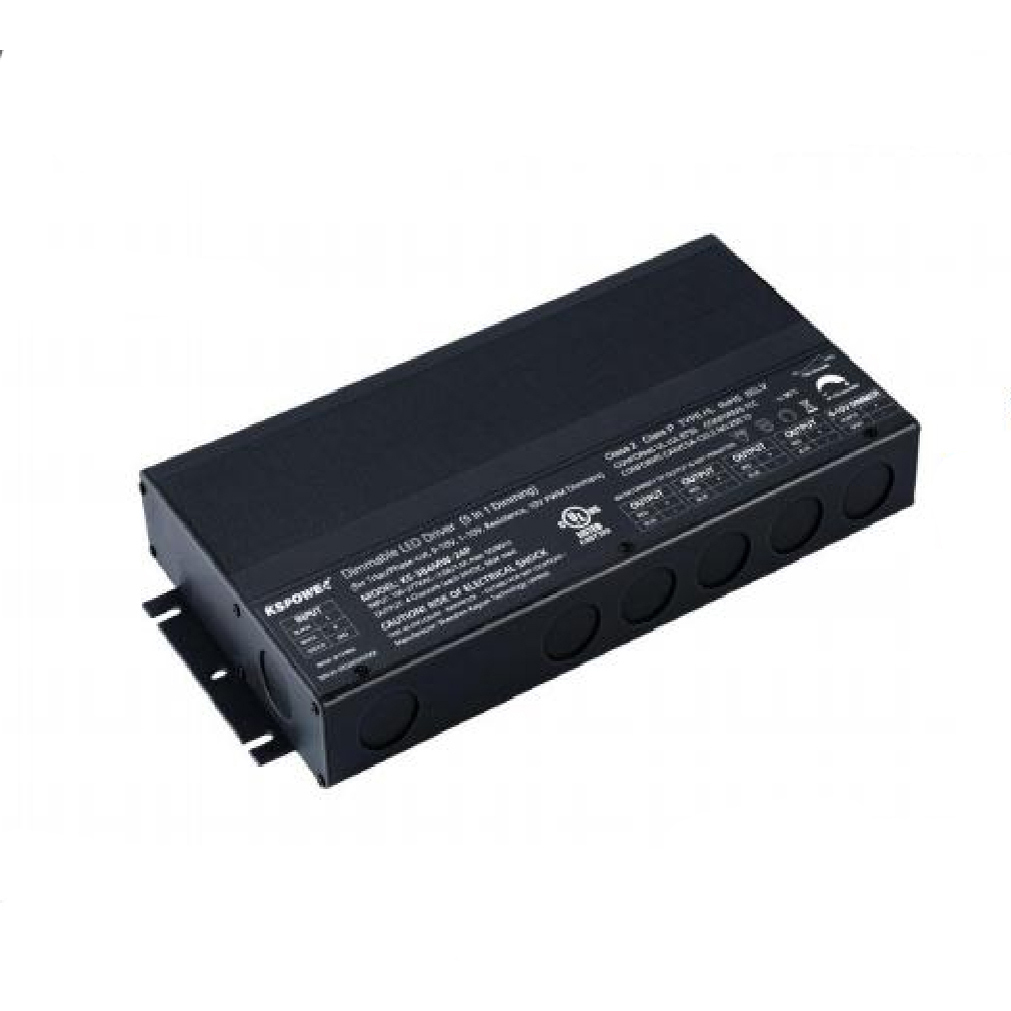

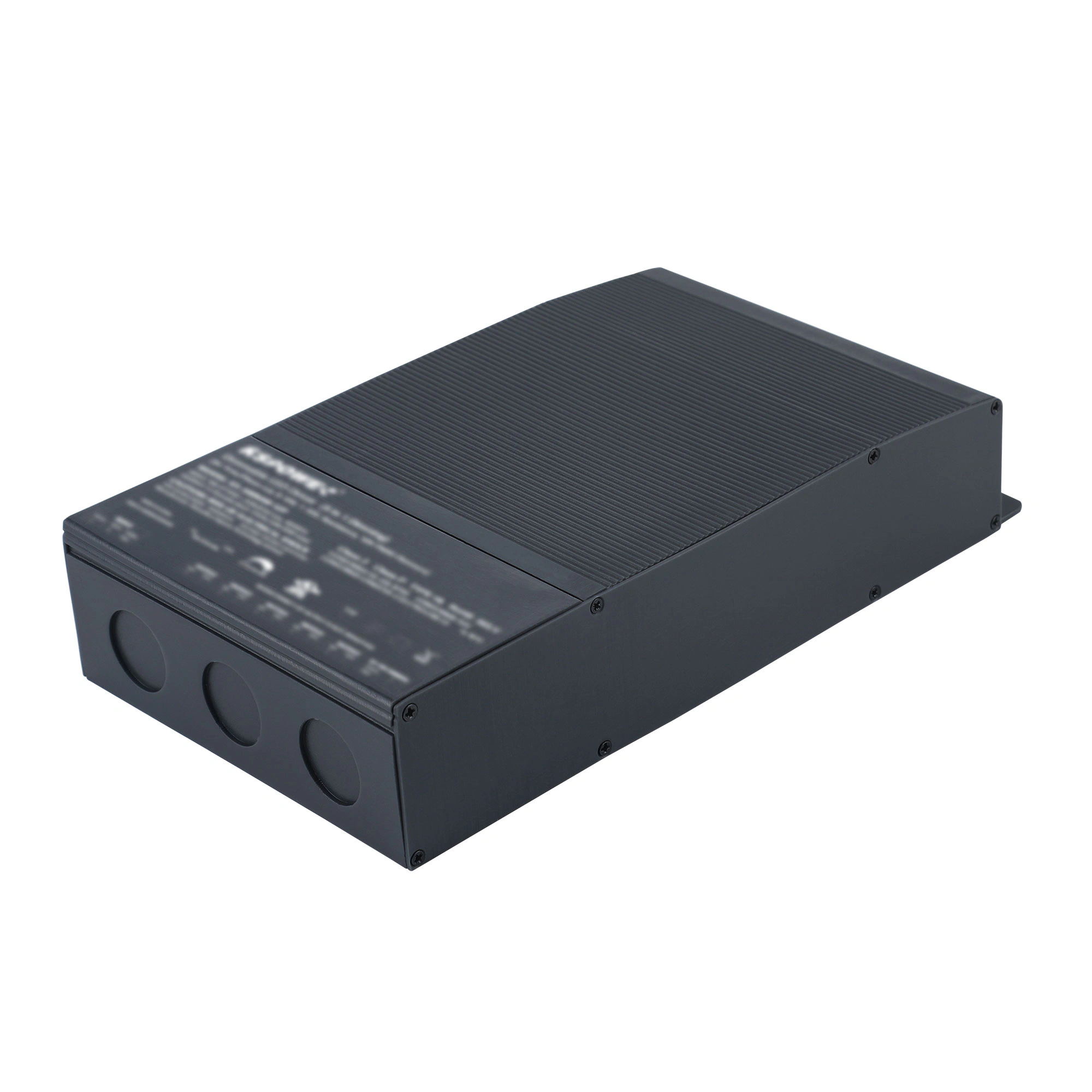

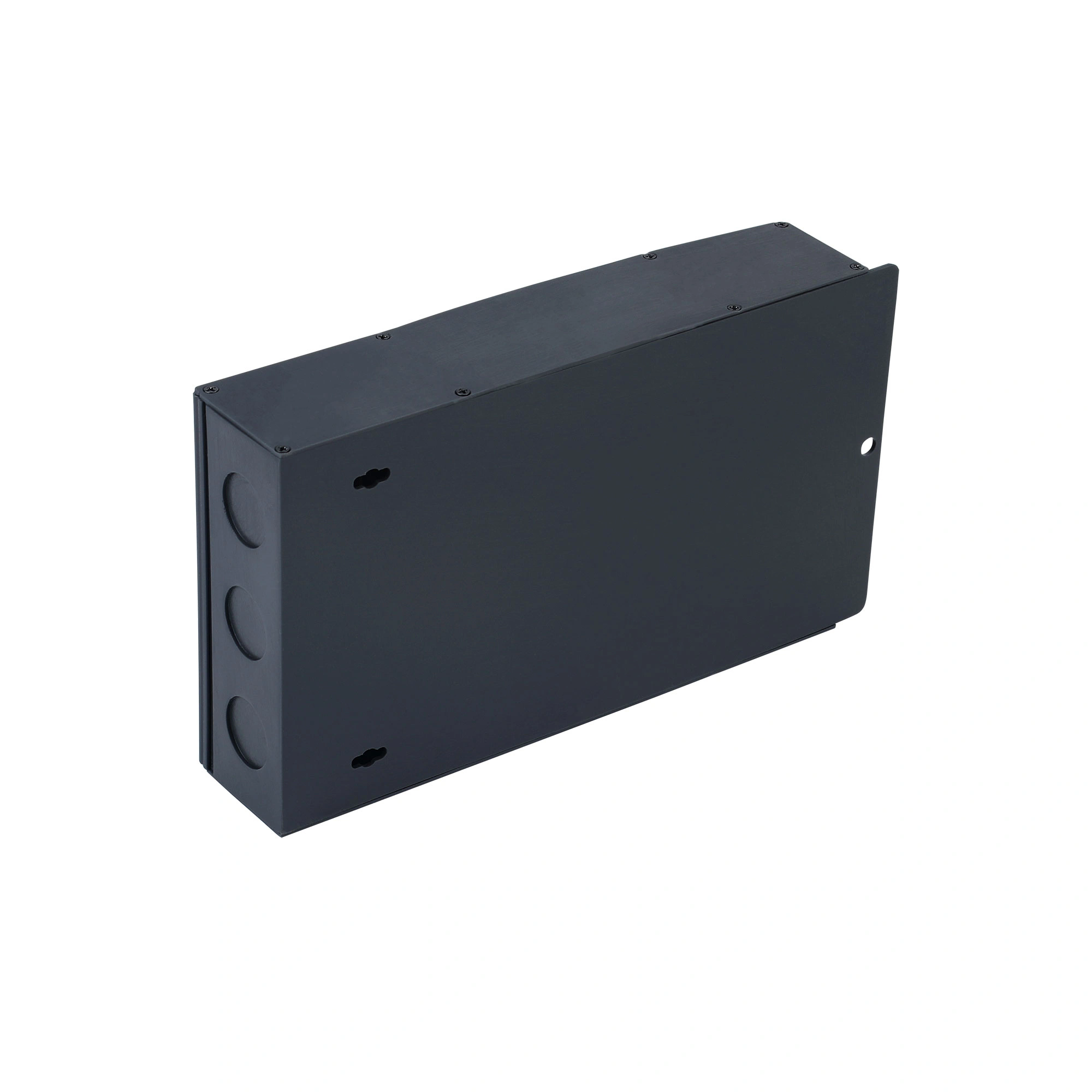

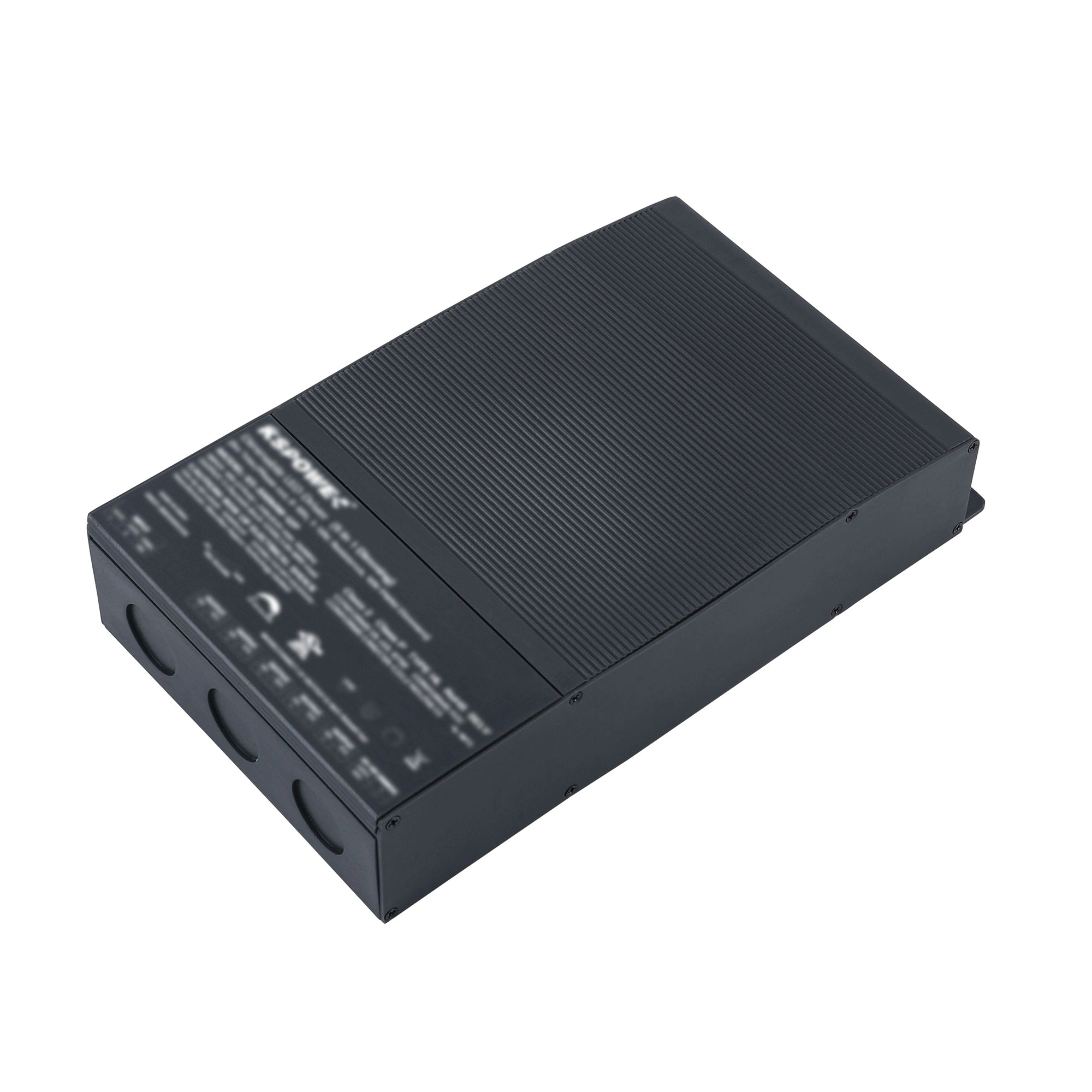

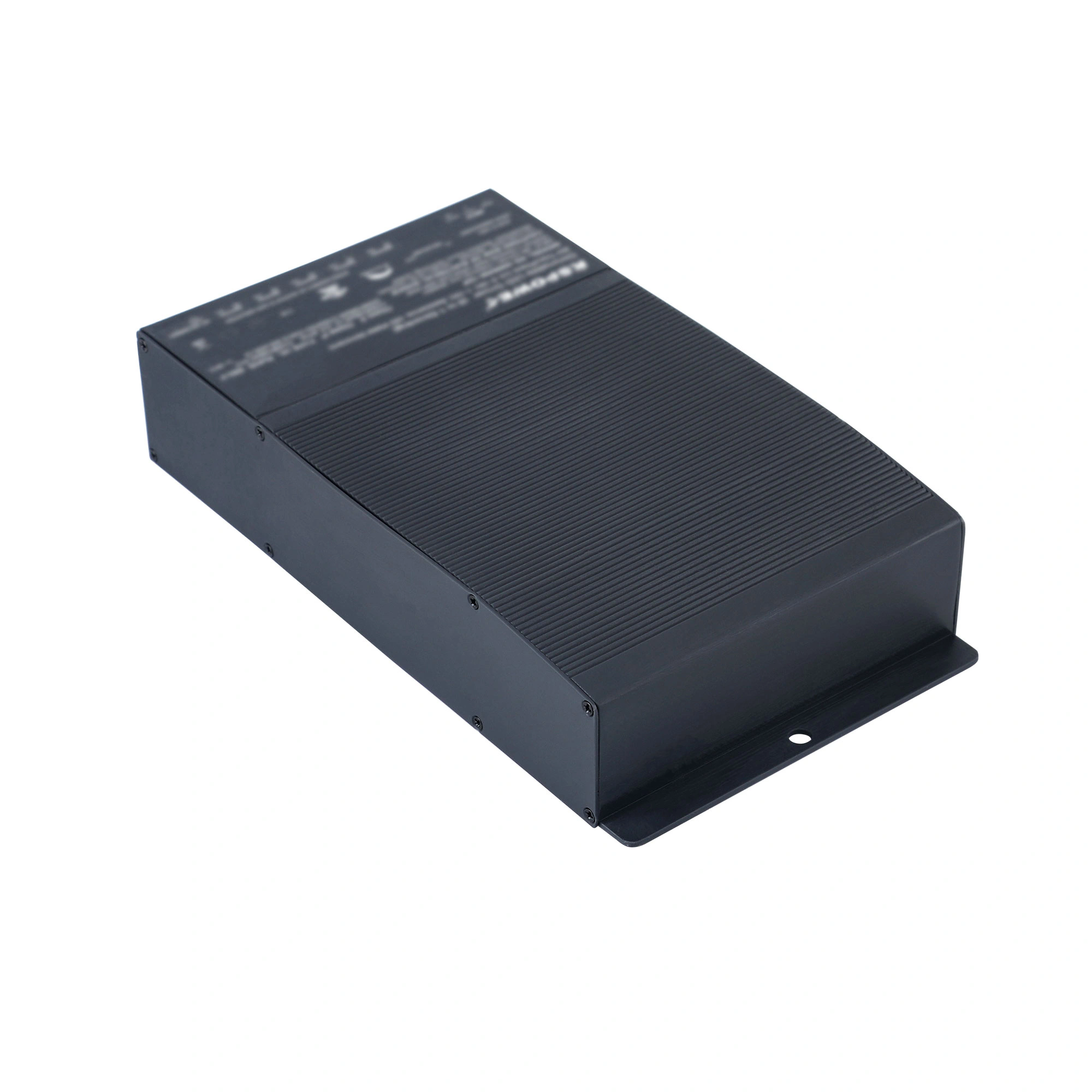

0-10V, 1-10V, Phase-cut, 10V PWM Signal, Resistor 5 in 1 Dimmable LED Driver
The Multi 24V 3*60W 5 In 1 Dimmable LED Driver is multiple channel solution LED driver, universal AC input voltage range from 100V-277VAC Constant Voltage LED Driver. It's with greater operating efficiency and PFC function. The 0-10V Triac dim led power supply use low profile metal aluminum case with junction box makes the dimmable led power supply solutions for LED strips, LED sign, billboard and landscape lighting. The constant voltage led driver offers 5-channel 60W and meet UL Class 2 Class P SELV listed safety environment protection for indoor or outdoor use, the led lights power supply provide 5 years warranty and outstanding led dimming performance.
Features:
Specification:
Input Voltage | 100~277V AC 47~63Hz | |||
Power Factor | Build in active PFC, typical power factor>0.95, THD<10%@120V Max. load | |||
NO. | ZHMP-180MW12 | ZHMP-180MW24 | ||
Output Voltage | 12V | 24V | ||
Rated Current | 3-channel x 5.0A | 3-channel x 2.5A | ||
Rated Power | 180W 3-channel 60W Class 2 (unloaded channels permitted) | |||
Output Dimming Method | Uses PWM method for dimmed low voltage output | |||
Output Ripple (Peak-to-Peak) | <5% | |||
Storage TEMP. Humidity | -40~+80℃(-40°F to 176°F),10~95%RH | |||
Dim Functions | Forward phase&reverse phase, MLV, ELV dim, 0-10V, 1-10V, 10V PWM, Resistance dimmers | |||
Dimming Curve | Linear | |||
Flicker | California Title 24 / JA8 |
Dimming Connect Drawing:
