5 in 1 Dimmable Led Driver

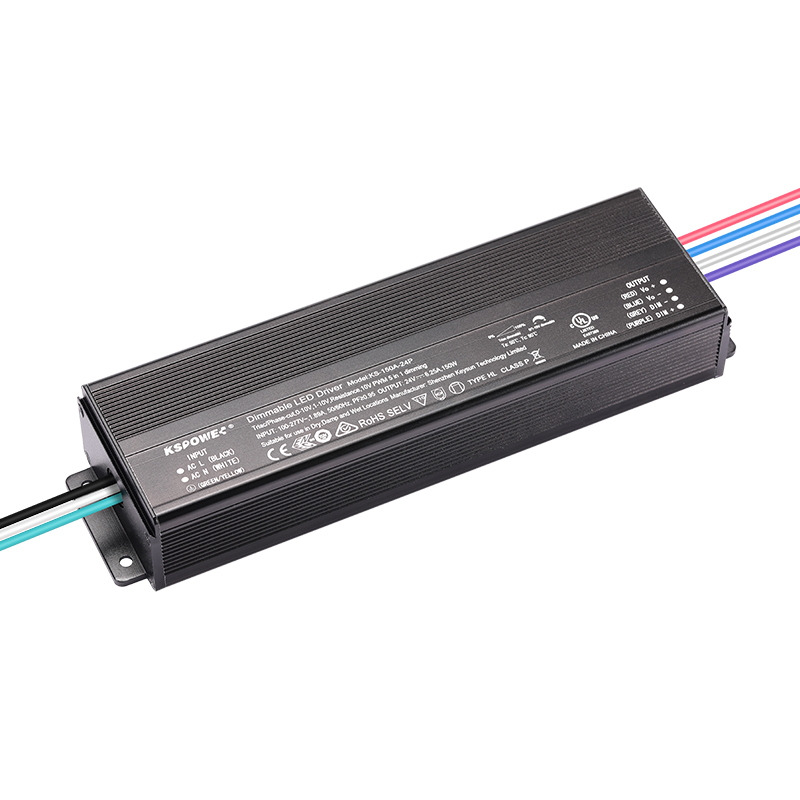

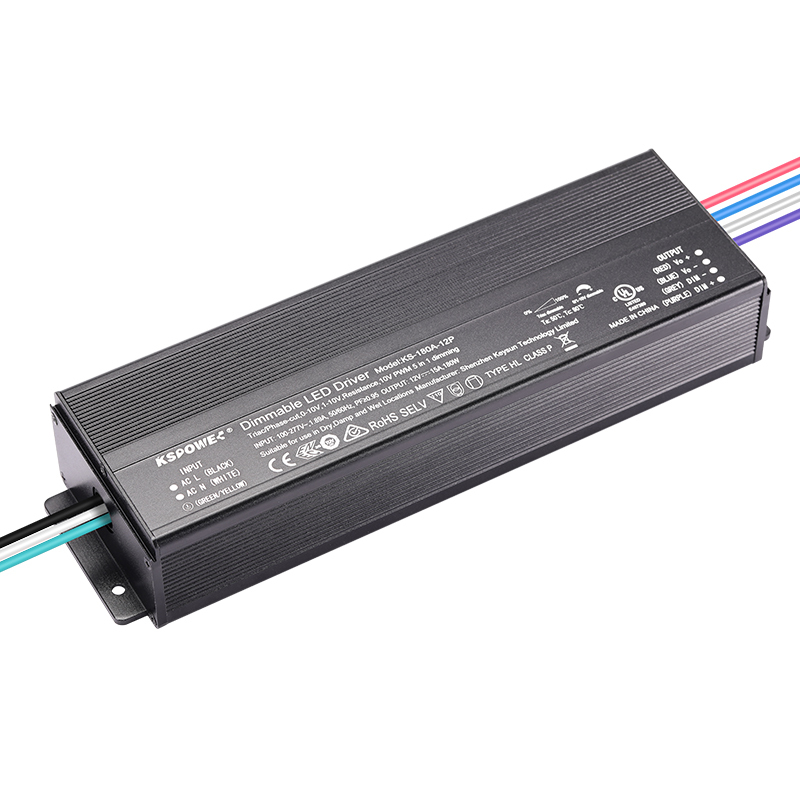

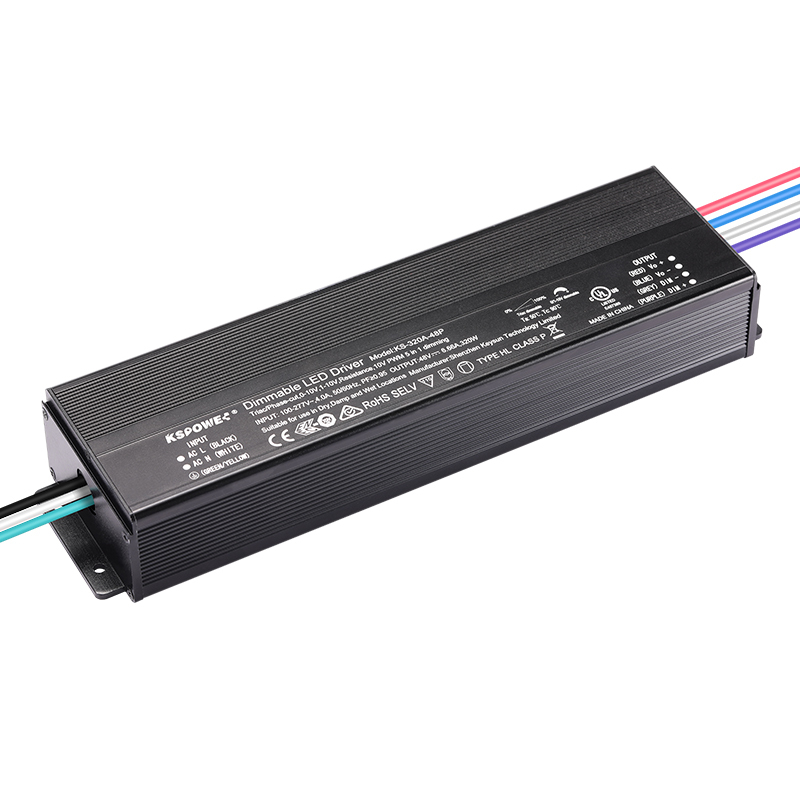

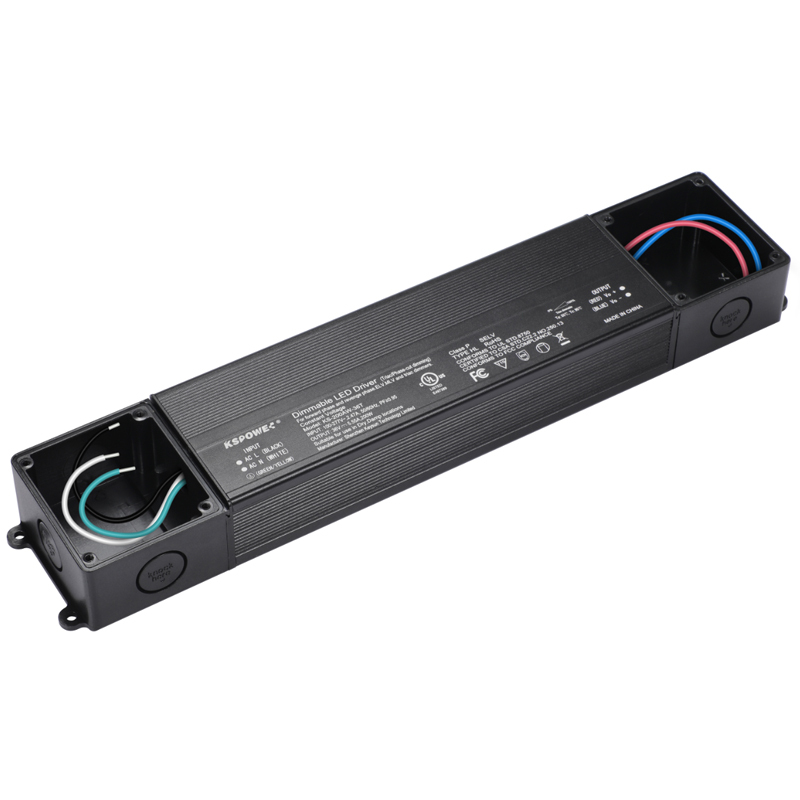

24V/36V/48/ 300W 5 in 1 Dimmable Junction Box LED Driver UL/cUL CE GS FCC RoHS LPS Listed

Item No.: 00128
24V/36V/48V 320W 5 In 1 Dimmable LED Driver 0-10V, 1-10V, TRIAC dimmable, 10V PWM signal, resistance. input voltage 100~277 VAC 47~63Hz.Featuring PFC function of up to 0.95 and higher, IP65 environment protection rating for indoor or outdoor use
  • Output:
    24V300W
    36V300W
    48V300W
  • Model No.:
    KS-300AW-24
    KS-300AW-36
    KS-300AW-48
  • Warranty:
    5Years
Description Model In the list Product Structure Packing & Shipping
Description

Dimmable functions:

0-10V, 1-10V, TRIAC dimmable, 10V PWM signal, resistance.

5 In 1 Dimmable LED Driver 320 Watt 24V/36V/48V is black color, universal AC input voltage range from 100V-277VAC Constant Voltage LED Driver certified to meet UL cUL and CE GS FCC RoHS LPS Class P ENEC SELV safety approvals. The led pwm dimmable Power Supply use low profile aluminum case with junction box makes led dimmable driver the power solutions for LED strips, LED sign, billboard and landscape lightingFeaturing PFC function of up to 0.95 and higher, IP65 environment protection rating for indoor or outdoor use, the series 4 in 1 dimmable led power supply provide 5 years warranty and outstanding led dimming peformance.

Product Attributes

Model No.KS-300AW-XX

BrandKSPOWER

place of originChina

Output Power300W

Output typeSingle

The output voltage24V/36V/48V

Power Supply ModeConstant Voltage Source

Efficiency92%

MaterialAluminum Case

Power [email protected] Load>0.95

ColorBlack

Input100v-277vac

Warranty5 Years

ProtectionsOcp Ovp Scp Lps

Envir. Protection RatingIndoor Or Outdoor Use

Output TypePwm Output

CertificationTuv Gs Ce Ul cUL

UsageLed Strip Light, Led Puck Light, Module Light

Features

-- IP65 Design and UL Dry / Damp / Wet Location

-- Single channel & PWM style output

-- TYPE HL for use in a Class I hazardous location

-- Flicker-free

-- Continuous Smooth

-- Protection: OCP, OVP, SCP, OTP

-- Limited Power Source

-- UL/cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved

-- Perfectly suitable for all kind of outdoor LED strip lighting, architectural, decorative and signage applications etc

◆ 100% full load burn-in test

◆ 3 years Warranty

Dimming Connect Drawing:

Model In the list
Product Model Number Max.Watts Output Voltage(V) Output Current(A) PF Warranty
KS-300XX-24#
300W 24V 12.5A 0.98(115VAC)
5 Years
KS-300XX-36# 300W 36V 8.33A 0.98(115VAC)
5 Years
KS-300XX-48# 300W 48V 6.25A 0.98(115VAC)
5 Years
Product Structure



Packing & Shipping
Packing Info: Pcs/CTN Dimension/Carton Dimension/unit Weight/CTN Weight/pcs
OEM package 15Pcs 40*40*16.5cm 38.2*65*45mm 22Kg 1.4KG
