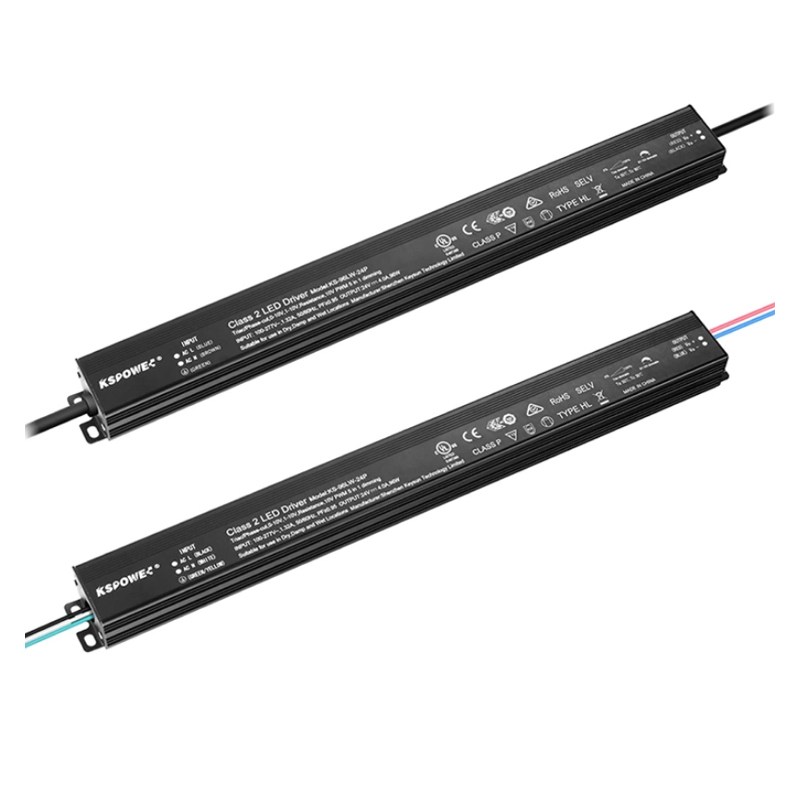

Class 2 UL8750 24V 40W 0-10V 1-10V PWM Resistance Dimmable LED driver 4 in 1 dimming with junction Box

No.00315
◆0-10V 1-10V PWM Resistance 4 in 1 Dimmable ◆UL8750 Class 2 UL/cUL listed ◆Universal AC input voltage 100-277VAC ◆Built-in active PFC function ◆Protection: OCP, OVP, SCP, OTP ◆Typical lifetime > 50,000 hours ◆IP65 Rated Enclosure for Indoor and Outd
Output:
12V40W
24V40W
36V40W
48V40W
Dimmable Options:
Triac/Phase-cut Dimmable
Non-dimmable
4 in 1 dimmable
5 in 1 dimmable
  • Class 2 UL8750 24V 40W 0-10V 1-10V PWM Resistance Dimmable LED driver 4 in 1 dimming with junction Box
  • Class 2 UL8750 24V 40W 0-10V 1-10V PWM Resistance Dimmable LED driver 4 in 1 dimming with junction Box
  • Class 2 UL8750 24V 40W 0-10V 1-10V PWM Resistance Dimmable LED driver 4 in 1 dimming with junction Box
  • Class 2 UL8750 24V 40W 0-10V 1-10V PWM Resistance Dimmable LED driver 4 in 1 dimming with junction Box
  • Class 2 UL8750 24V 40W 0-10V 1-10V PWM Resistance Dimmable LED driver 4 in 1 dimming with junction Box
Description

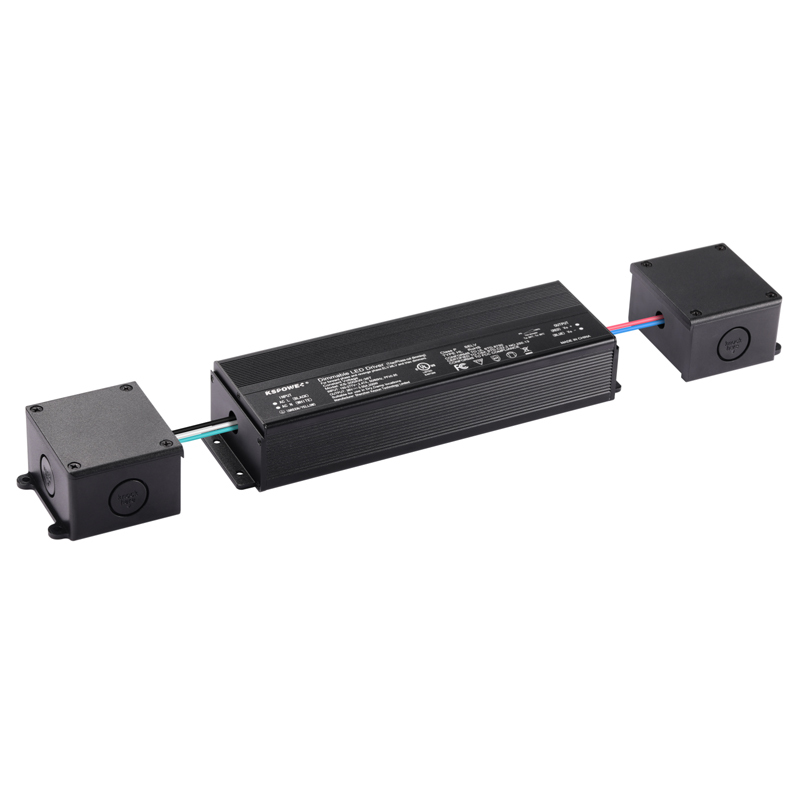

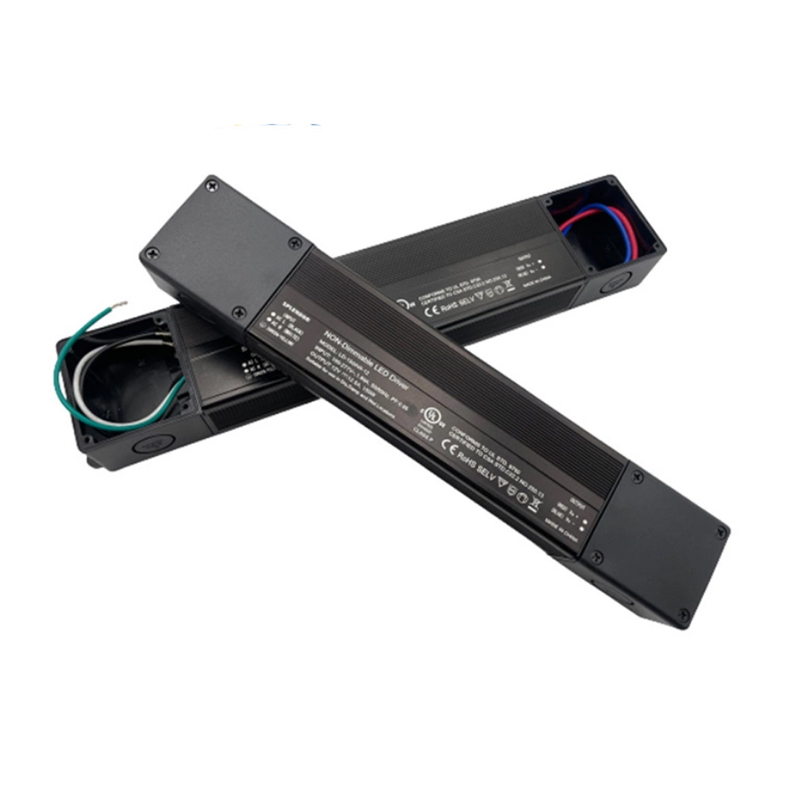

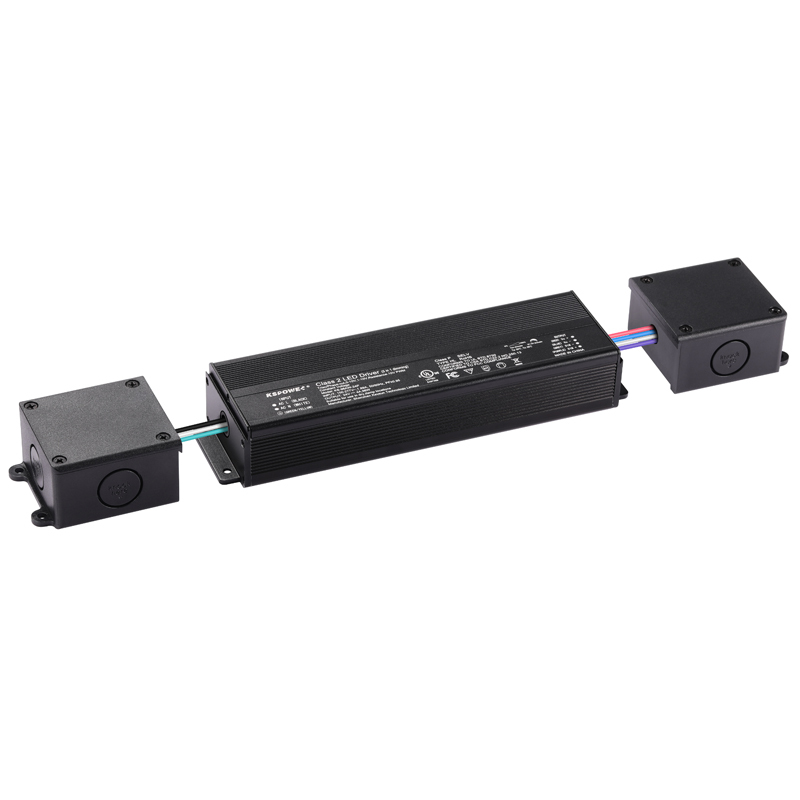

0-10V 1-10V PWM Resistance 4 in 1 Dimmable LED Driver 40W 24V is one black color, universal AC input voltage range from 100V-277VAC Constant Voltage LED Driver certified to meet UL cUL and CE GS FCC RoHS safety approvals. The led dimmable Power Supply use low profile aluminum case with junction box makes led dimmable driver the power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PFC function of up to 0.95 and higher, IP65 environment Protection Rating for indoor or outdoor use, Our products provide 5 years warranty and outstanding led dimming peformance.

Product Attributes

Model No.KS-40AW-24O

BrandKSPOWER

place of originChina

Output Power40W

Output typeSingle

The output voltage24V

Power Supply ModeConstant Voltage Source

Efficiency92%

MaterialAluminum Case

PFC Max.>0.95

ColorBlack

Input100v-277vac

Warranty5 Years

ProtectionsOCO OVP SCP LPS

Envir. Protection RatingIndoor Or Outdoor Use

Output TypePwm Output

CertificationTUV GS CE UL

UsageLed Strip Light, Led Puck Light, Module Light


Features

 IP65 Design and UL Dry / Damp / Wet Location

Single channel & PWM style output

TYPE HL for use in a Class I hazardous location

 Flicker-free

Continuous Smooth

 Protection: OCP, OVP, SCP, OTP

 Limited Power Source

 UL/cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved

 Perfectly suitable for all kind of outdoor LED strip lighting, architectural, decorative and signage applications etc

◆ 100% full load burn-in test

◆ 5 years Warranty

Dimming Connect Drawing:
