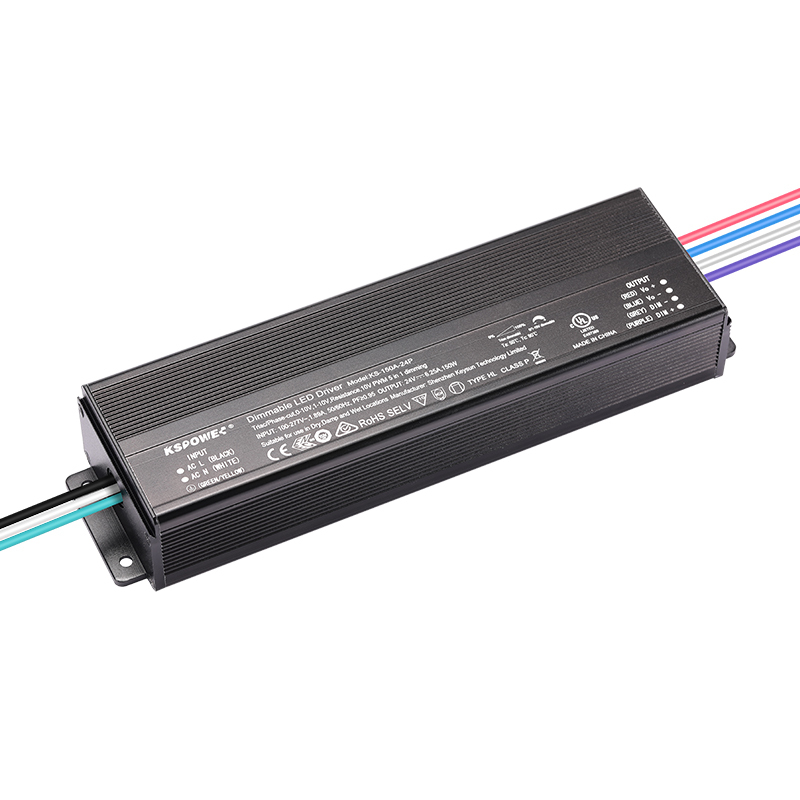

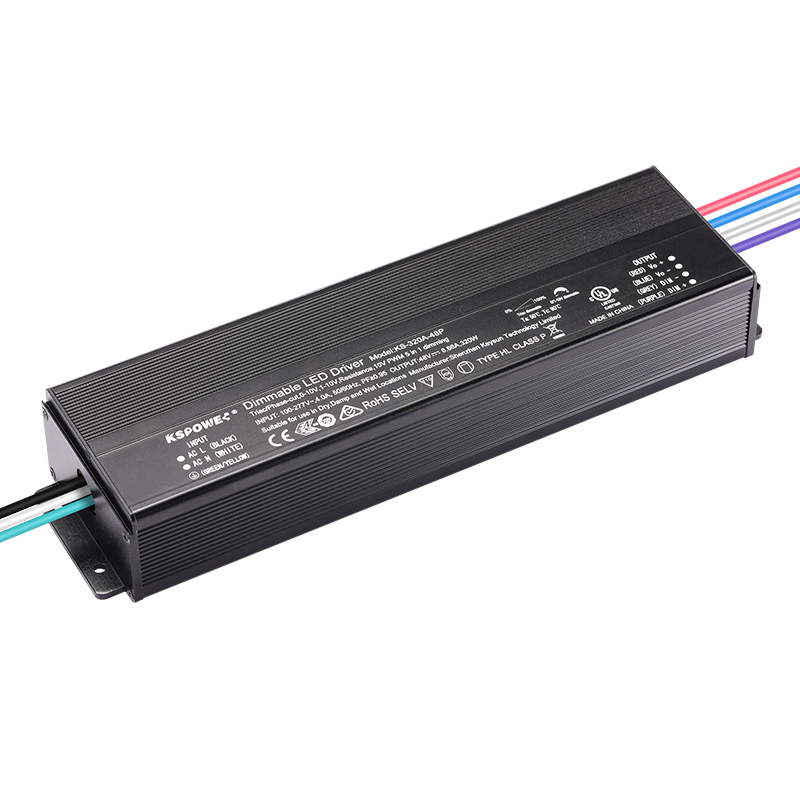

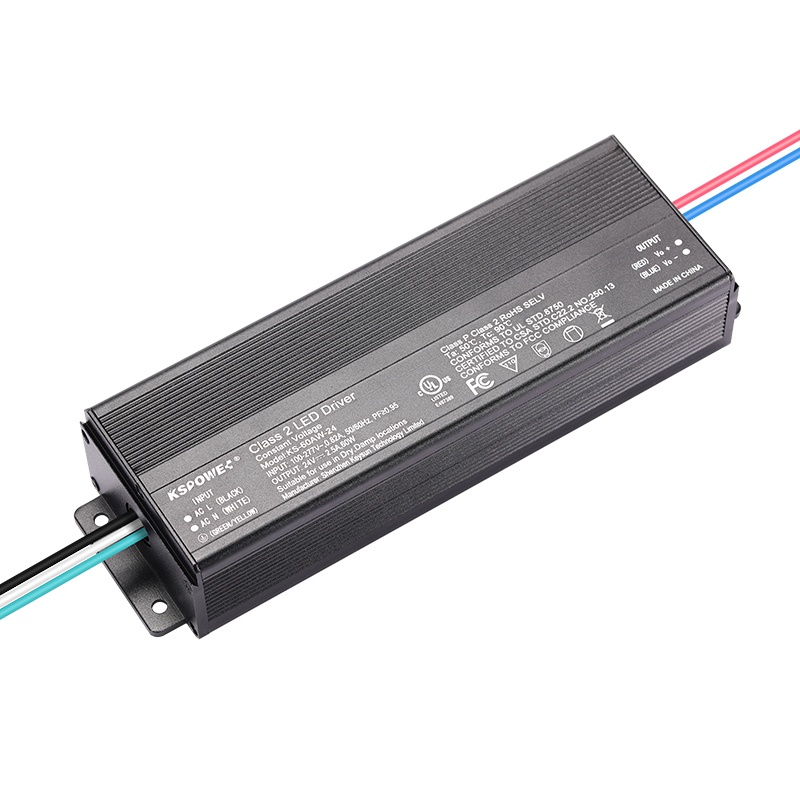

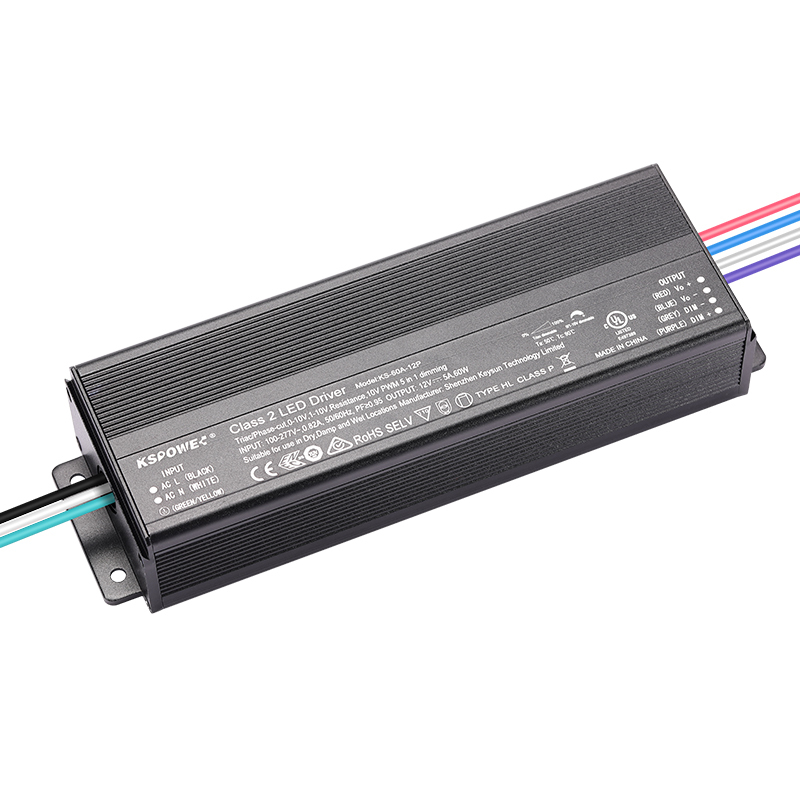

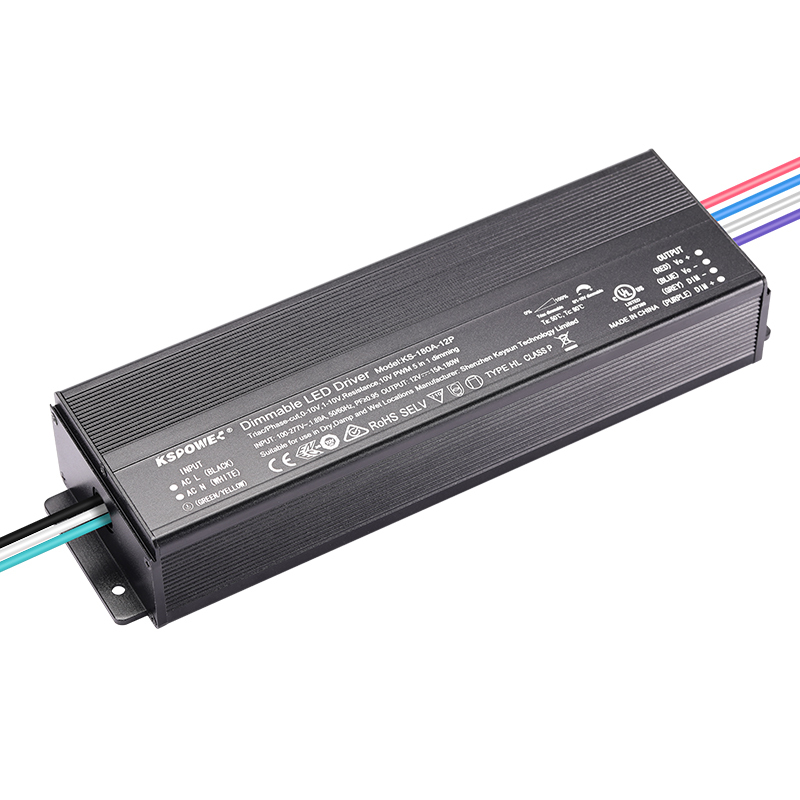

Triac Phase-cut Dimmable LED Driver 300W 24V is one black color, universal AC input voltage range from 100V-277VAC Constant Voltage LED Driver certified to meet UL cUL and CE GS FCC RoHS safety approvals. The led dimmable Power Supply use low profile aluminum case with junction box makes led dimmable driver the power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PFC function of up to 0.95 and higher, IP65 environment Protection Rating for indoor or outdoor use, Our products provide 5 years warranty and outstanding led dimming peformance.
Model No.: KS-300AW-24T
Brand: KSPOWER
place of origin: China
Output Power: 300W
Output type: Single
The output voltage: 24V
Power Supply Mode: Constant Voltage Source
Efficiency: 92%
Material: Aluminum Case
PFC Max.: >0.95
Color: Black
Input: 100v-277vac
Warranty: 5 Years
Protections: OCO OVP SCP LPS
Envir. Protection Rating: Indoor Or Outdoor Use
Output Type: Pwm Output
Certification: TUV GS CE UL
Usage: Led Strip Light, Led Puck Light, Module Light
Features
◆ IP65 Design and UL Dry / Damp / Wet Location
◆Single channel & PWM style output
◆TYPE HL for use in a Class I hazardous location
◆ Flicker-free
◆Continuous Smooth
◆ Protection: OCP, OVP, SCP, OTP
◆ Limited Power Source
◆ UL/cUL, RoHS, CE, ENEC, GS, Class P, SAA Approved
◆ Perfectly suitable for all kind of outdoor LED strip lighting, architectural, decorative and signage applications etc
◆ 100% full load burn-in test
◆ 5 years Warranty
Dimming Connect Drawing:
| Product Model Number | Max.Watts | Output Voltage(V) | Output Current(A) | PF | Warranty |
| KS-300AW-24T |
300W | 24V | 12.5A | 0.95(115VAC) |
5 Years |
| KS-300AW-36T |
300W | 36V | 8.33A | 0.95(115VAC) |
5 Years |
| KS-300AW-48T | 300W | 48V | 6.25A | 0.95(115VAC) | 5 Years |
| Packing Info: | Pcs/CTN | Dimension/Carton | Dimension/unit | Weight/CTN | Weight/pcs |
| OEM package | 15Pcs | 40*40*16.5cm | 38.2*65*45mm | 22Kg | 1.4KG |
