: IP20
:
:
:
:
:
:
:
:
:

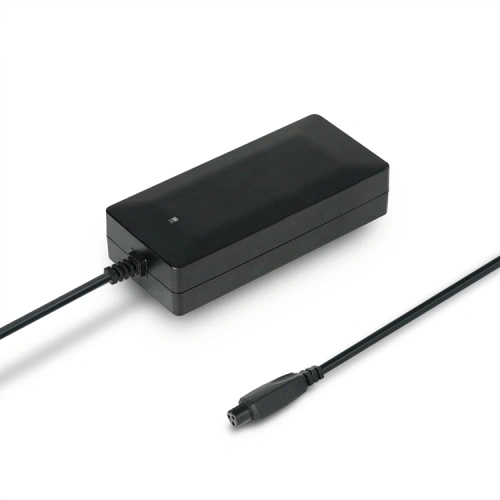

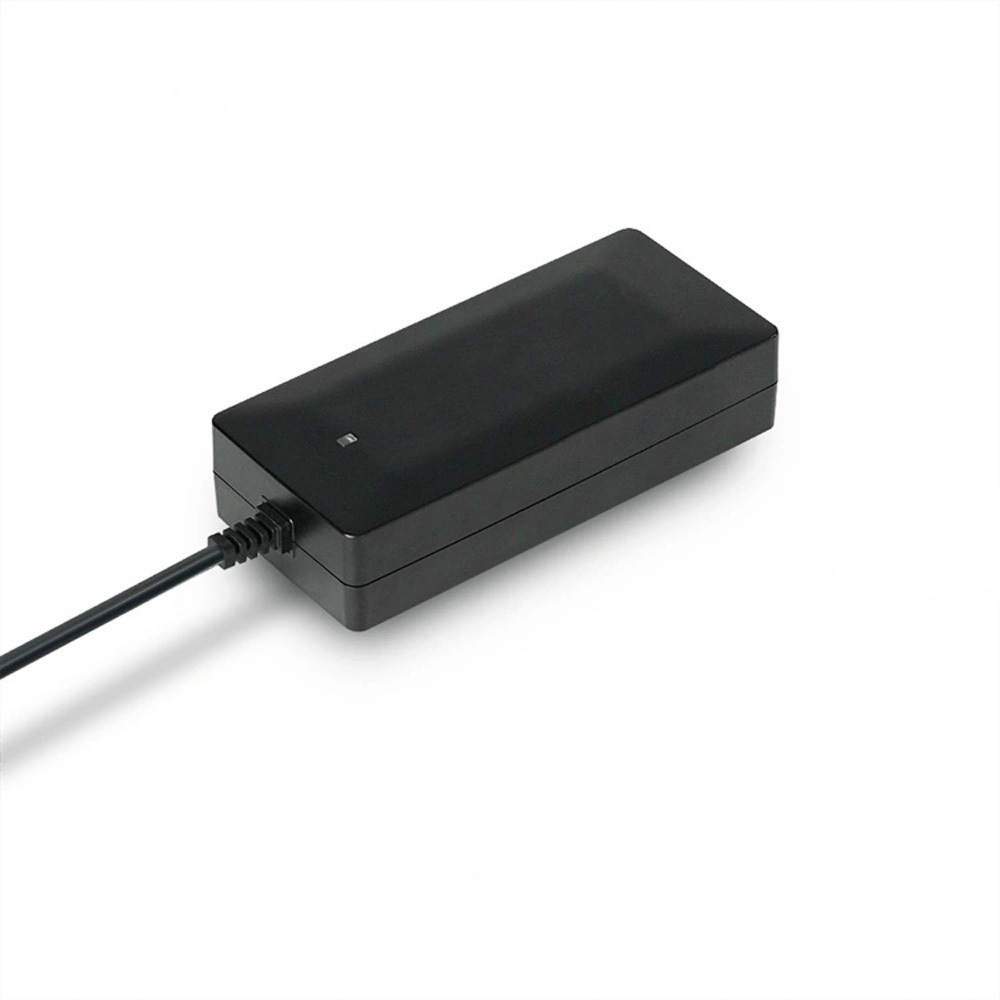

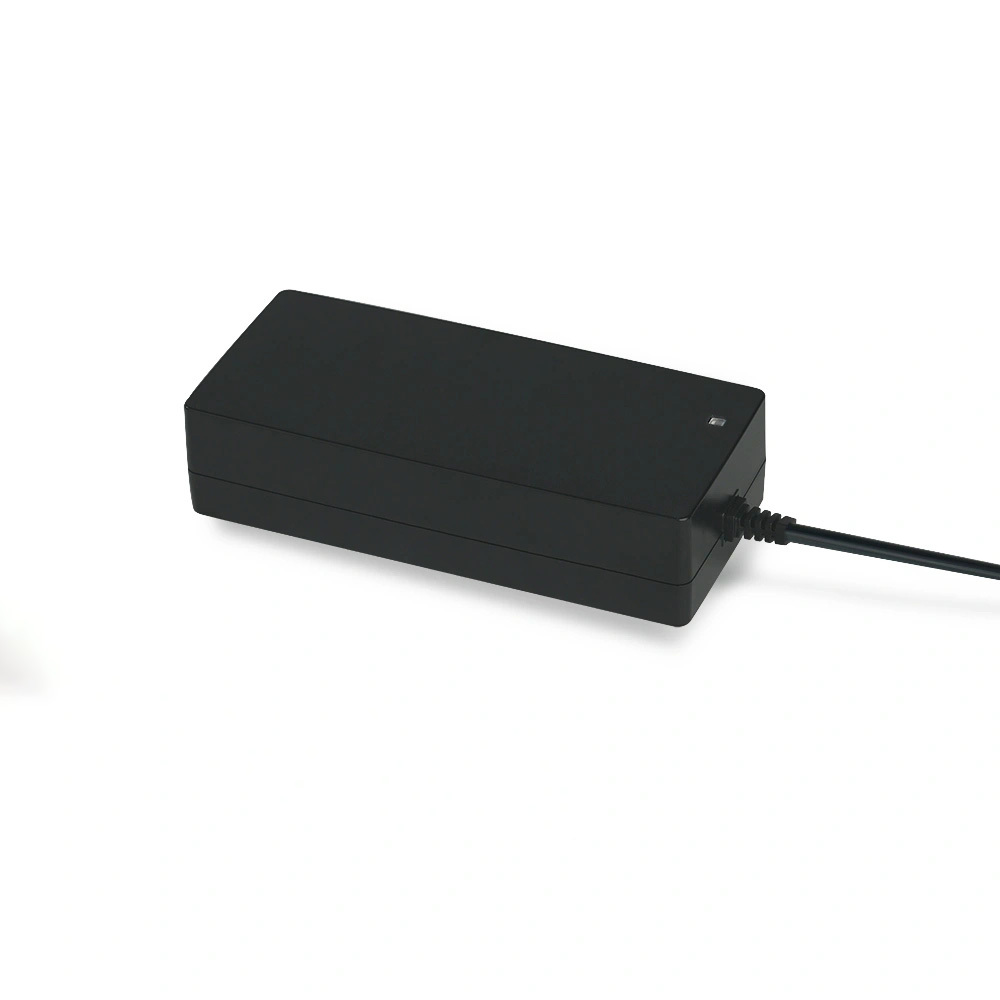

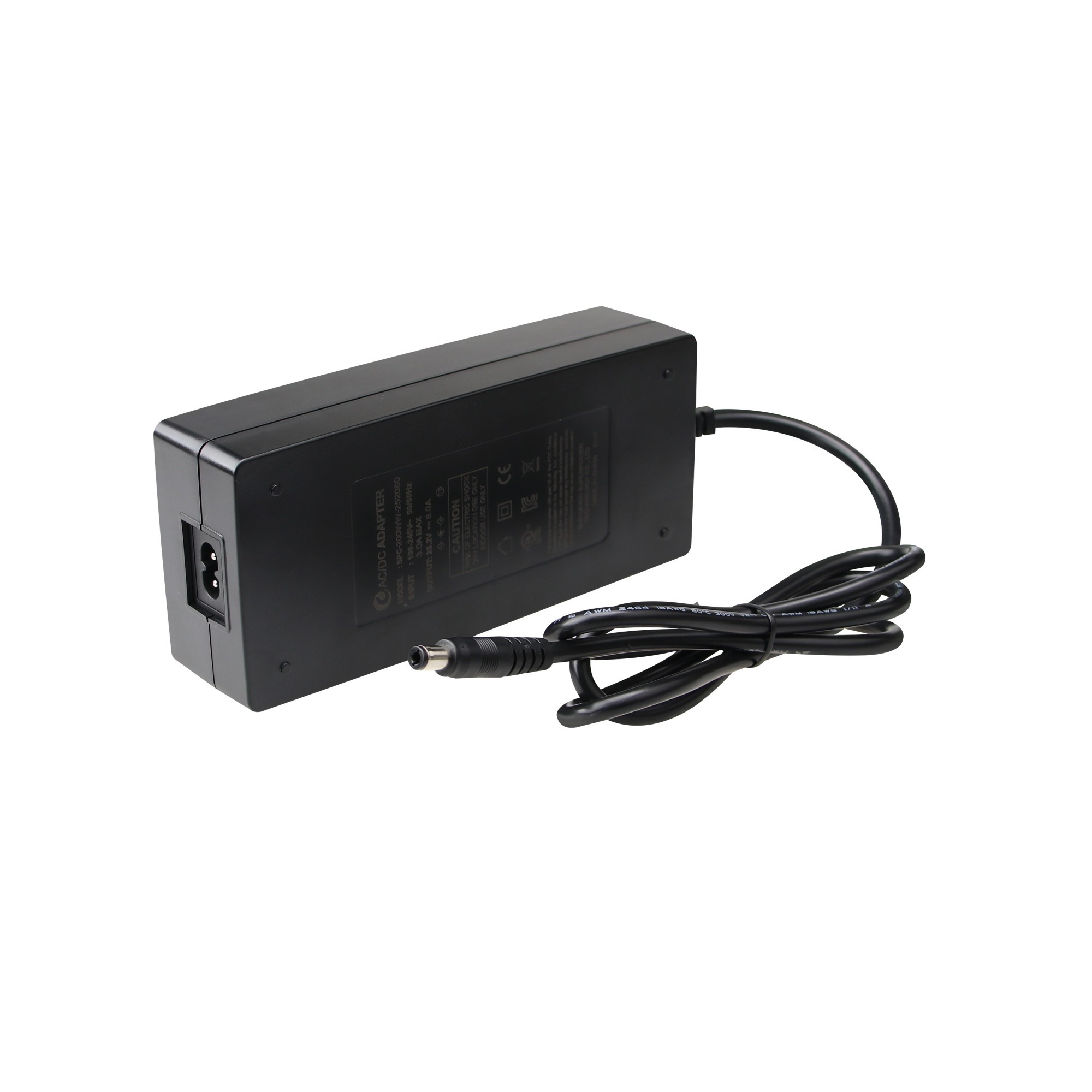

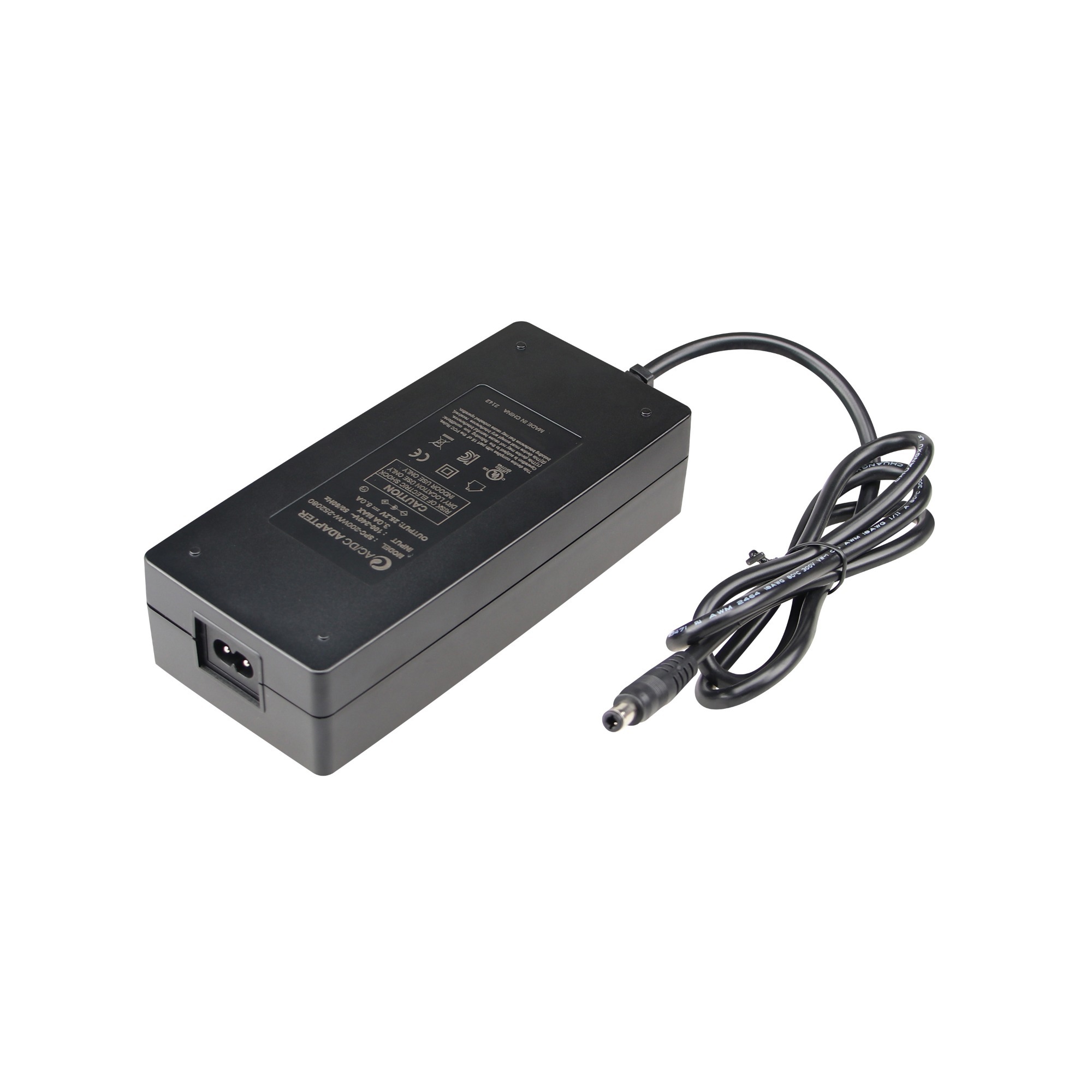

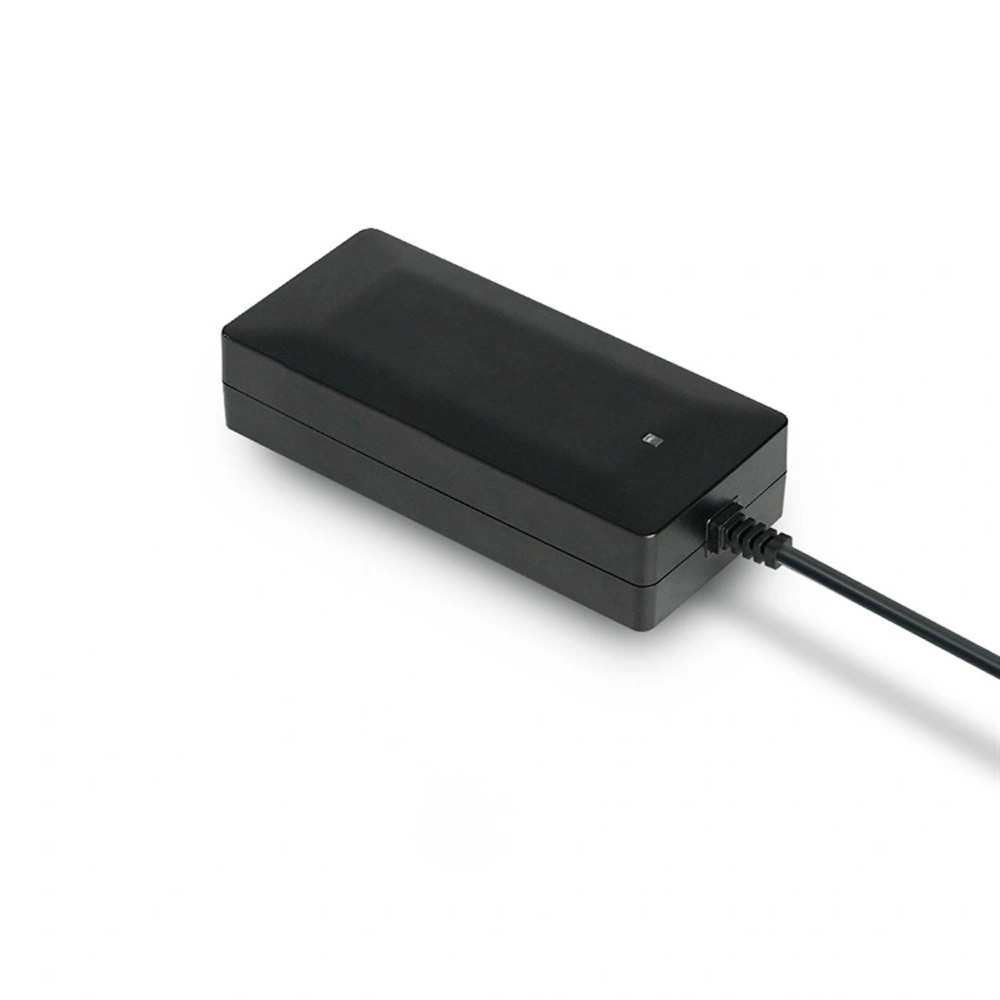

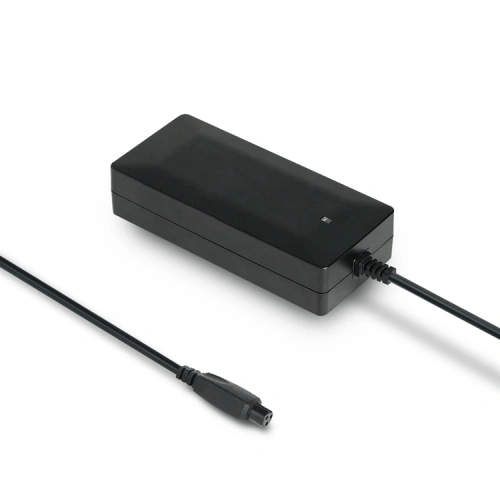

| 120W Series Lithium battery charger | |||||||
| Use for | LiFePO4 Battery charging | ||||||
| Various Protection | OCP OVP OTP Short Circuit and polarity | ||||||
| Charging Mode | 4 Stages, Pre-charge Trickle, CC, CV, Full | ||||||
| The advantages of our charger | |||||||
| Safe: | Multi-protection,Over current/Over Voltage/Over Temperature protection, Short Circuit and polarity protection | ||||||
| Smart: | Out upon automatic identifying,no output on no-load,visible LED charge status indication | ||||||
| Efficient: | Charge efficiency 93%-95% | ||||||
| Design features: | Non-fan design,Low failure rate,Fully enclosed dustproof structure,metal case strong and durable | ||||||
| Warranty: | Usingcertified long-life compinents 3years warranty | ||||||
 |
Before charging Read the instruction >Standby:Green LED blink 1S ON,1S OFF >Pre-charge:Red LED always on. >Fast charging:Red LED always on. >Full:Green LED alwasys on. >Power failure:Red light flashes |
 |
 |
 |
|
Widely uesed for:
Electric bicycles Electric scooters
Electric golf carts
Electric motorcycles
Electric vehicles
Electric unmanned aircraft
Electric two wheeled vehicle
Electric tricycle
Electric patrol car
|
Electric cars Electric forklift
Electric pallet truck
Electric four wheeled vehicles
Electric tools
Electric sightseeing cars Electric sweeper, etc
Electric sanitation vehicle |
 |
| Input voltage : 100VAC~ 240VAC 50HZ/60HZ | Output Voltage | Output Current | |||
| Item No. | Nominal Votage | Voltage Range | Li-ion | LiFePO4 | Max(A) |
120W Series |
12V | 12.6V~16.8V | 12.6V / 16.8V | 14.6V | 6A |
| 24V | 25.2~29.4V | 25.2V / 29.4V | 29.2V | 3A | |
| 36V | 42V | 42 | 43.8 | 2A | |
| 48V | 50.4~58.8V | 50.4V / 54.6V / 58.8V | 58.4V | 5A | |
| Weight | 0.43Kg | ||||
| Dimension | 159*73*38mm |
||||
| Efficiency | >92% @230V | ||||
| Accuracy |
1% |
||||
| Certification | CE、UL、KC、PSE、FCC、SAA |
||||
| Cooling |
Natural Cooling | ||||
| Protection |
Over current, Over Voltage, Over Temperature, Short Circuit and polarity |
||||
| Packing Info: | Pcs/CTN | Dimension/Carton | Weight/CTN | Weight/Pcs |
| 120W Series | 24Pcs | 44*39*34cm | 11Kg | 0.43Kg |
