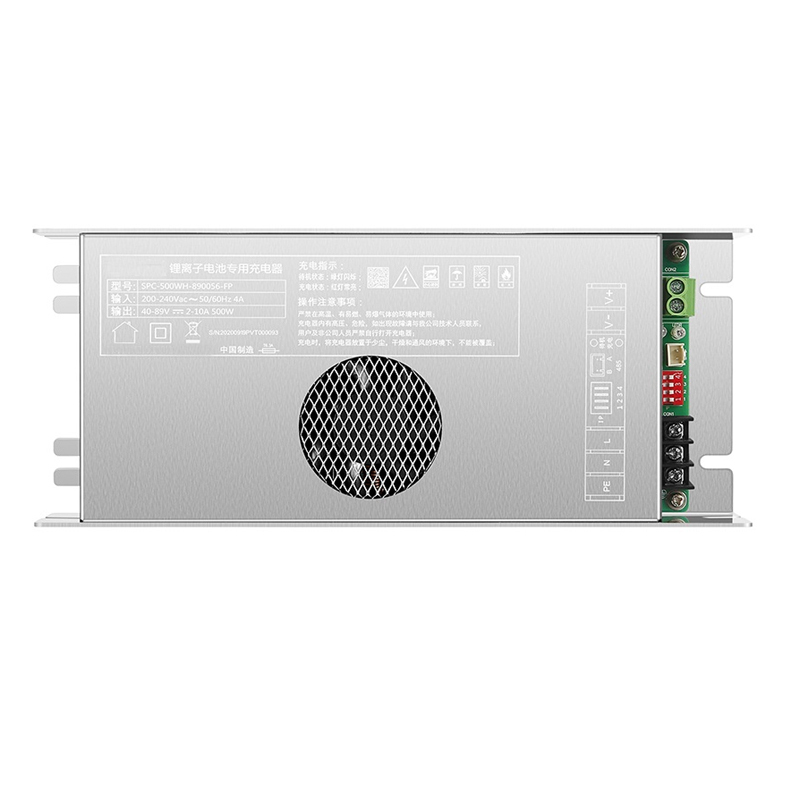

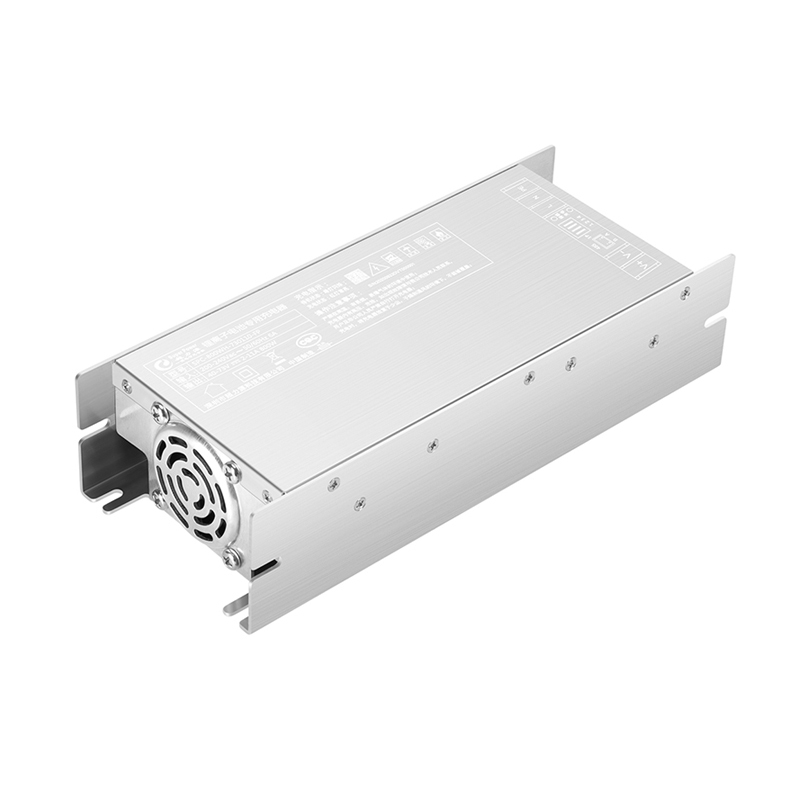

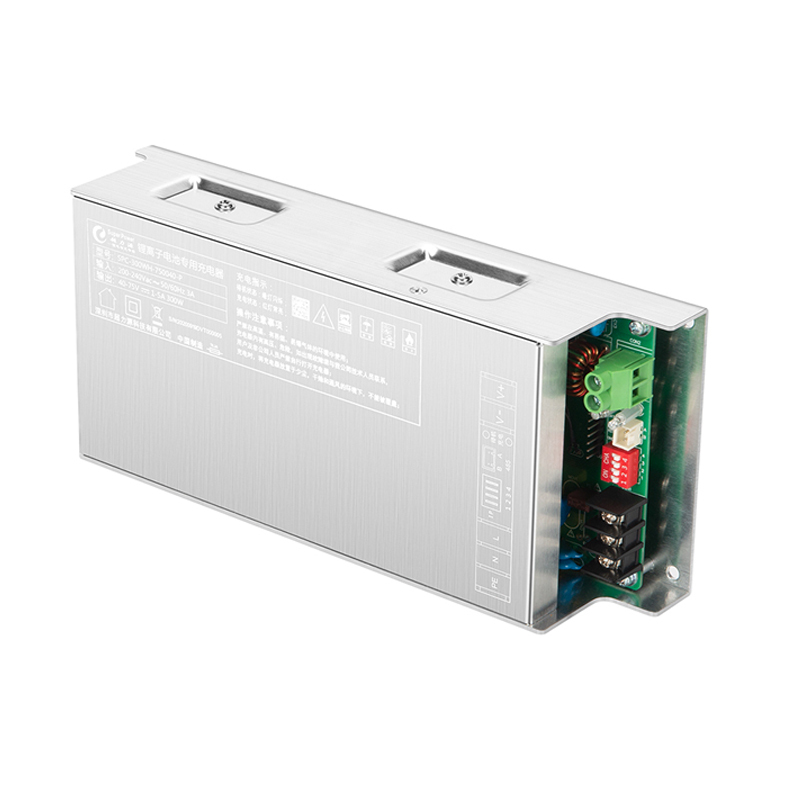

40-73V 800W 2-11A Lithium-ion charger for battery swap station

No.00552
40-75V 800W 10A Lithium-ion charger >Input Voltage:200-240VAC >Rated Frequency:50/60Hz >Dimension:226*98*53 >Warranty:3 Years >485
Color:
Black
Sliver
  • 40-73V 800W 2-11A Lithium-ion charger for battery swap station
  • 40-73V 800W 2-11A Lithium-ion charger for battery swap station
  • 40-73V 800W 2-11A Lithium-ion charger for battery swap station
Description
Battery Swapping Cabinet Power Supply
Meet CB, CE, CQC Certificates etc.
Product details
Input Voltage 200-240Vac / 50Hz
Output Power 800W
Output rated current 11A
Output voltage range 40 ~ 73V
Output current range 2 ~ 11A
Battery Nominal Voltage 48 / 60 / 72V
Output efficiency 93%
Output voltage accuracy 1‰
Output current accuracy 1‰
PFC 0.95
Communication RS485 / CANbus
Protections Over current protection, Over voltage protection, Over temperature protection, Short-circuit protection, Polarity protection, Timing protection
IECEE Test 60335-2-29:2016 ; IEC 60335-1:2010+A1+A2
EMC Test EN 55014-1:2017 , EN 61000-3-2:2014 , EN 61000-3-3:2013, EN 55014-2:2015
Dimension 236*98*55mm
More models with different output voltage & current are available
