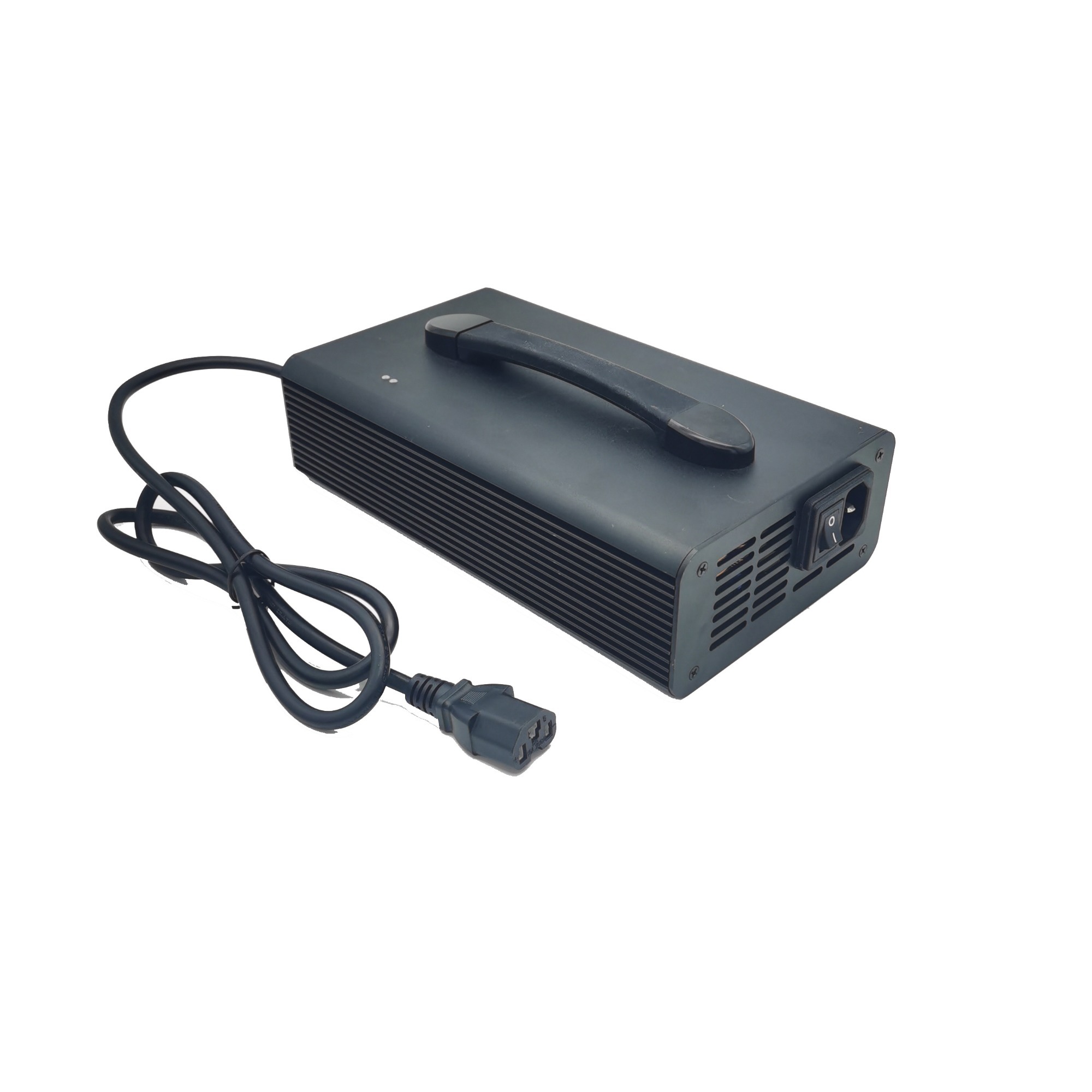

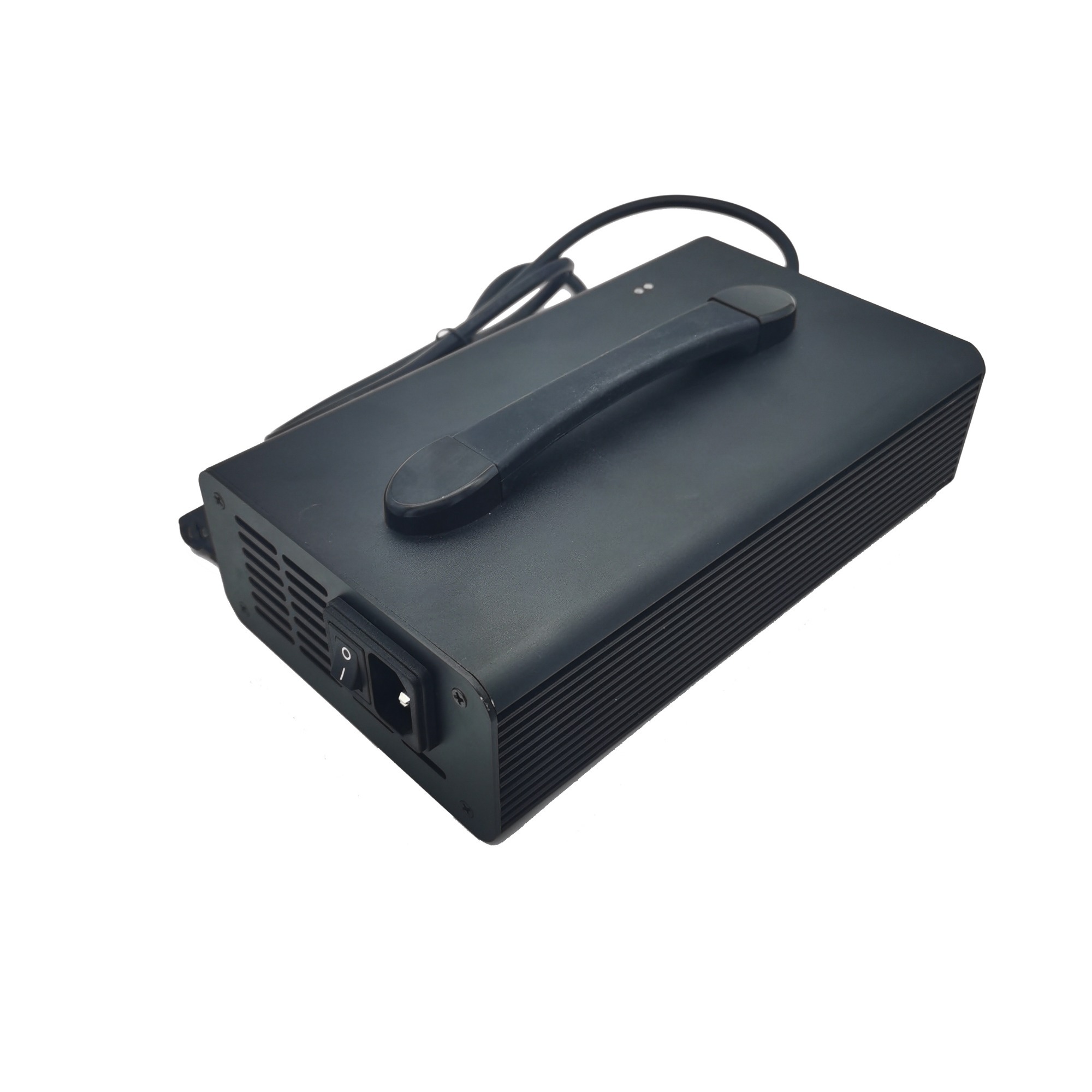

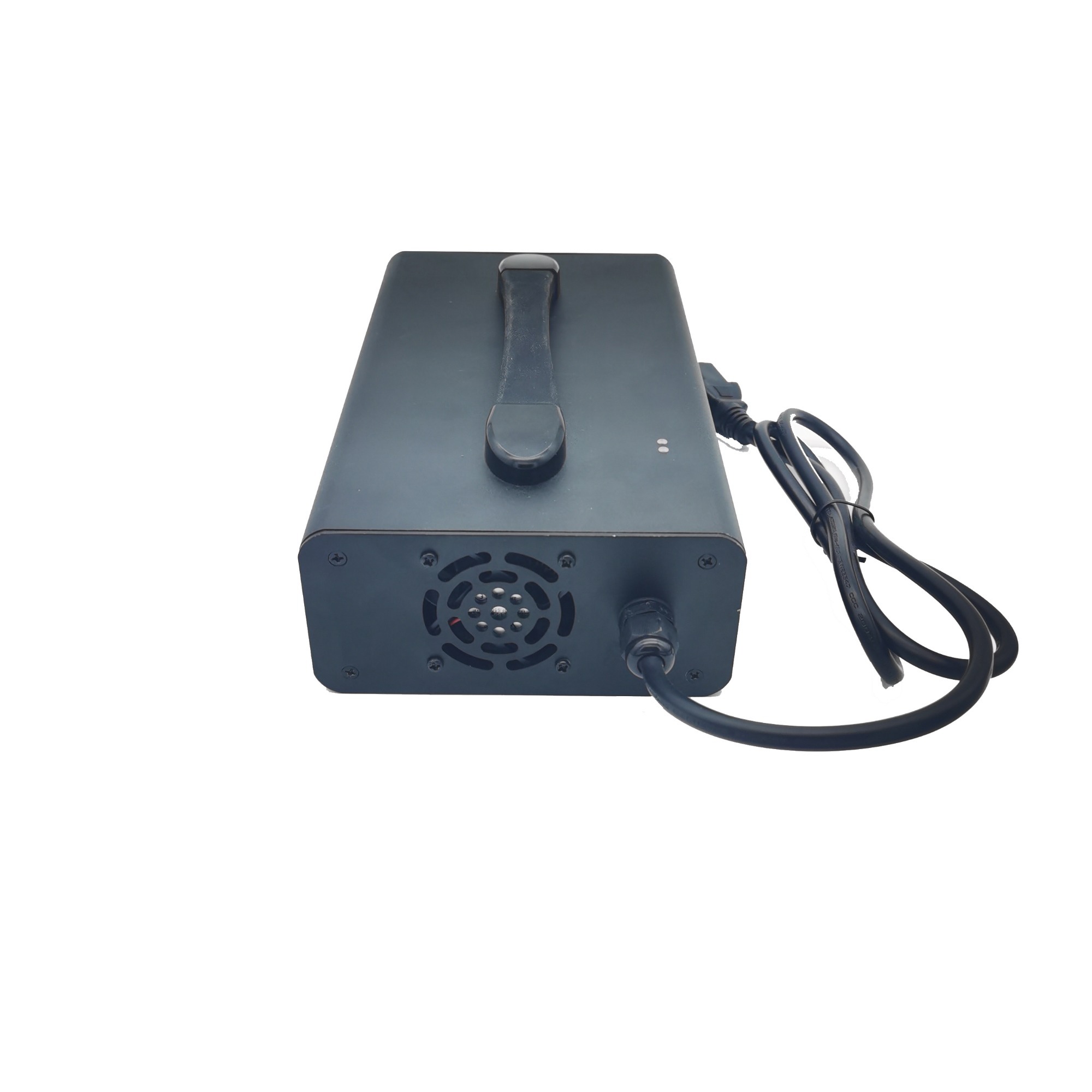

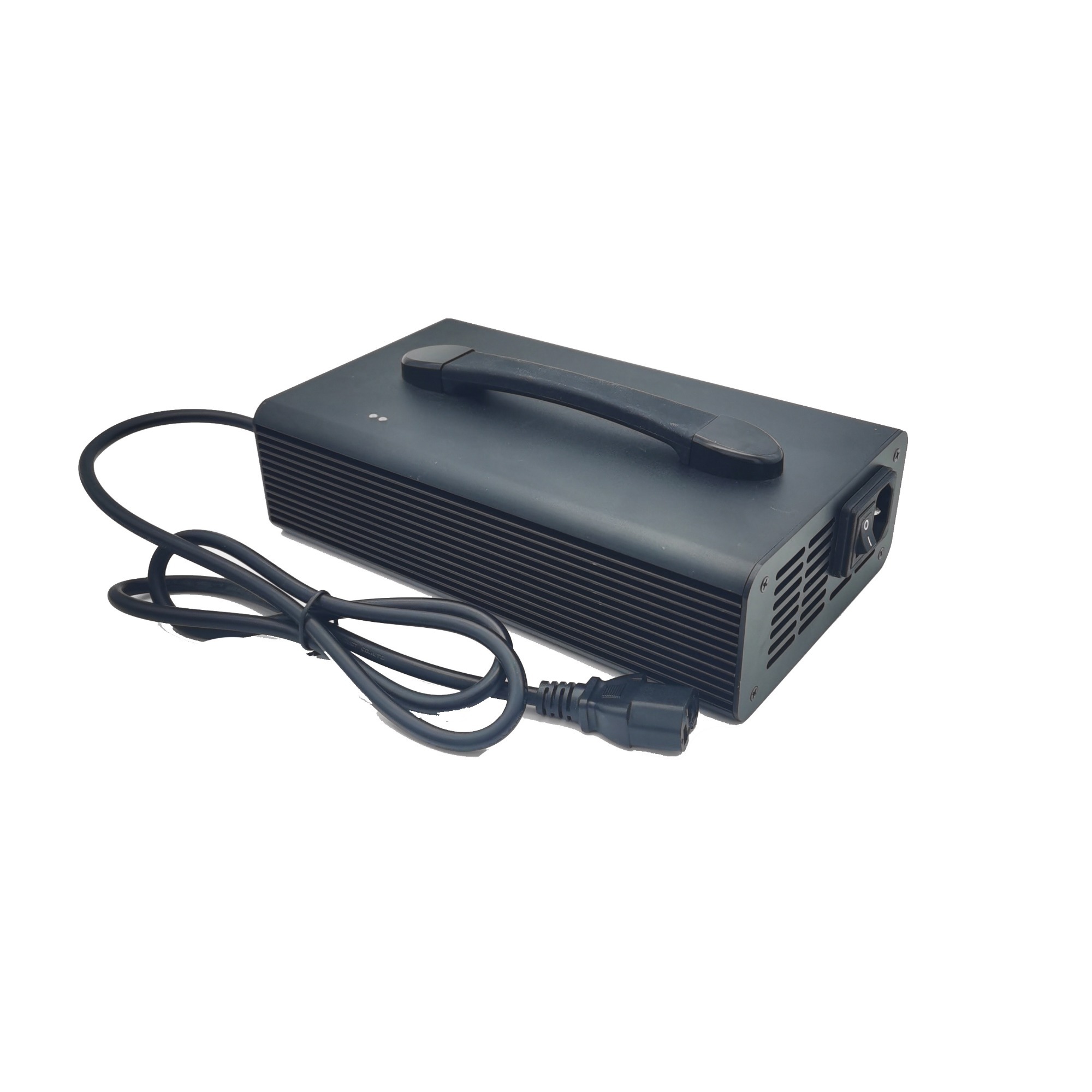

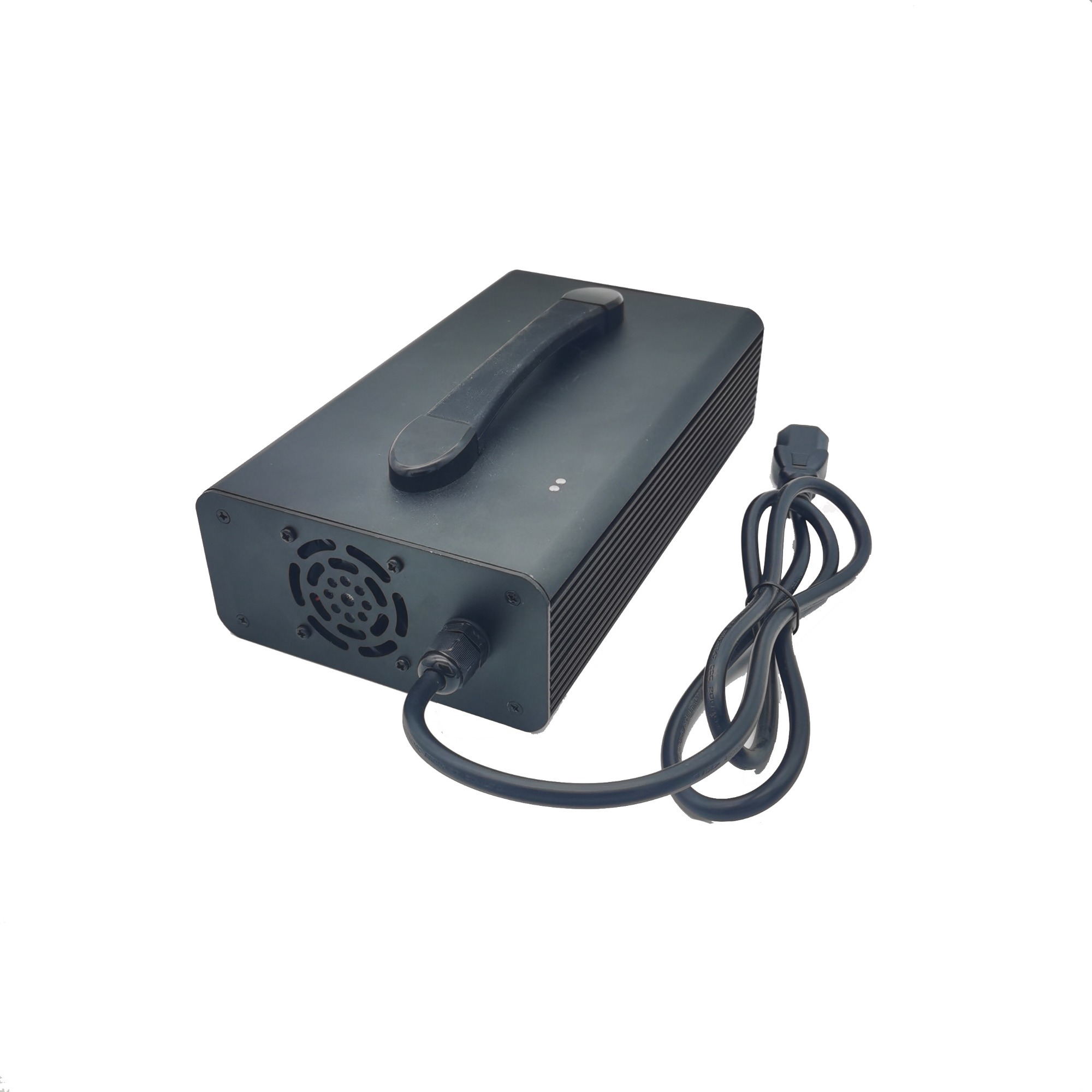

850W Series Lithium battery charger

No.00388
850W Series Lithium battery charger >Input Voltage:95-265VAC >Rated Frequency:50/60Hz >Dimension:203*112*61mm >Warranty:3 Years
Color:
Black
Sliver
AC Plug:
US
AUS
EU
UK
JP
KR
customizable
OutPut:
25.2V30A
29.2V30A
29.4V30A
50.4V15A
54.6V15A
58.8V15A
67.2V10A
73V10A
84V10A
87.6V10A
  • 850W Series Lithium battery charger
  • 850W Series Lithium battery charger
  • 850W Series Lithium battery charger
  • 850W Series Lithium battery charger
  • 850W Series Lithium battery charger
Description
Product Attributes:

Max Output 850

Input Voltage96~265VAC

Waterproof:   NO

PFC>=0.91

Dimension203*112*61mm

CoolingFan cooling

Nominal Voltage24V/36V/48V/60V/72V

Shell materialAluminium alloy

DC connectorICE13,GX16-3PIN,XT60,XRL-3PIN,etc

Communication485 CAN (option)

Weight2.3Kg

CertificationCE


 850W Series Lithium battery charger
 Use for  Battery charging
 Various Protection  OCP OVP OTP Short Circuit and polarity
 Charging Mode  4 Stages, Pre-charge Trickle, CC, CV, Full
The advantages of our charger
 Safe:  Multi-protection,Over current/Over Voltage/Over Temperature protection, Short Circuit and polarity protection
 Smart:  Out upon automatic identifying,no output on no-load,visible LED charge status indication
 Efficient:  Charge efficiency 93%-95%
 Design features:  Non-fan design,Low failure rate,Fully enclosed dustproof structure,metal case strong and durable
 Warranty:  Usingcertified long-life compinents 3years warranty

Before charging Read the instruction

 >Standby:Green LED blink 1S ON,1S OFF

 >Pre-charge:Red LED always on.

 >Fast charging:Red LED always on.

 >Full:Green LED alwasys on.

 >Power failure:Red light flashes
 >Battery connection error: Red light green light flashes alternately Battery

>Error or Failure:Red light flashes 4times green light flashes  1time and repeats.



Battery Charger Application
Widely uesed for:

Electric bicycles
Electric scooters
Electric golf carts
Electric motorcycles
Electric vehicles
Electric unmanned aircraft
Electric two wheeled vehicle
Electric tricycle
Electric patrol car


Electric cars
Electric forklift
Electric pallet truck
Electric four wheeled vehicles
Electric tools
Electric sightseeing cars
Electric sweeper, etc
Electric sanitation vehicle
