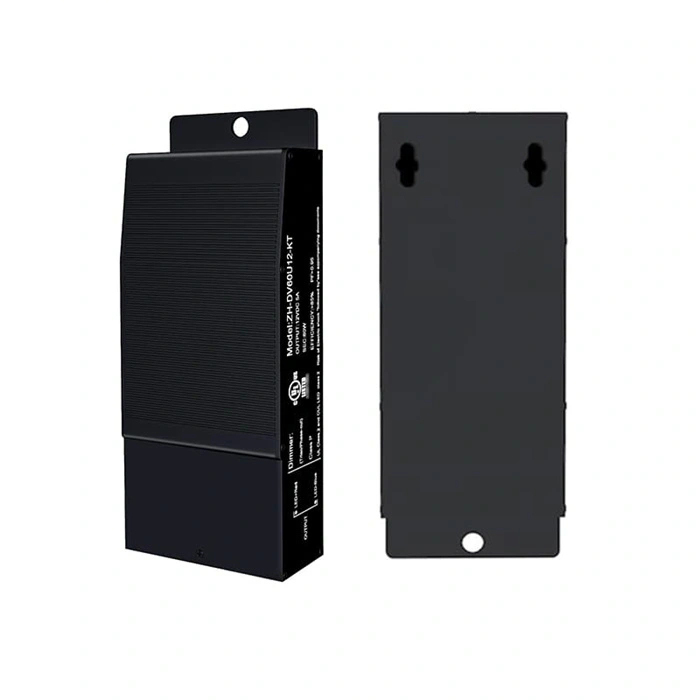

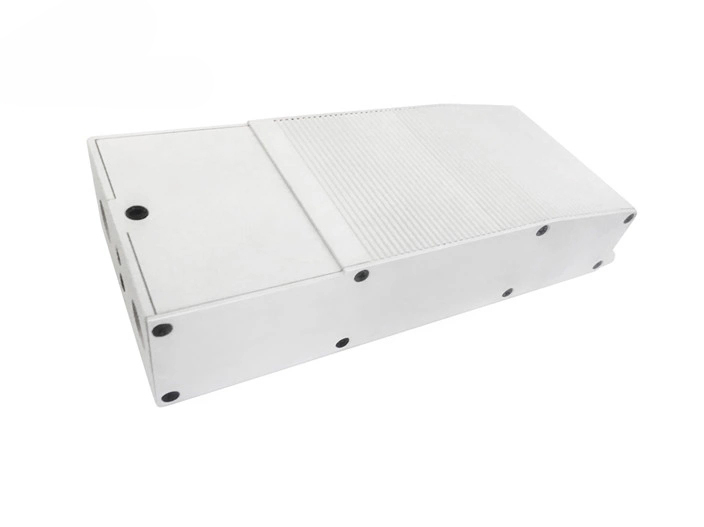

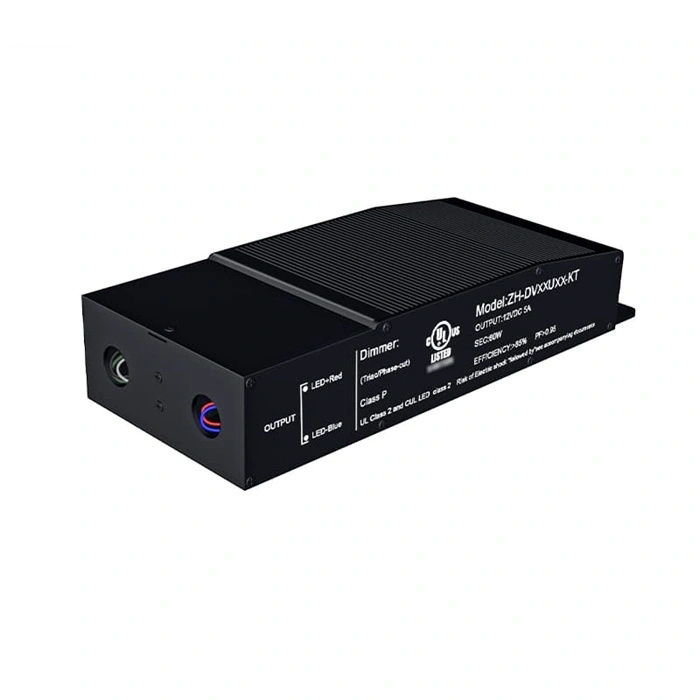

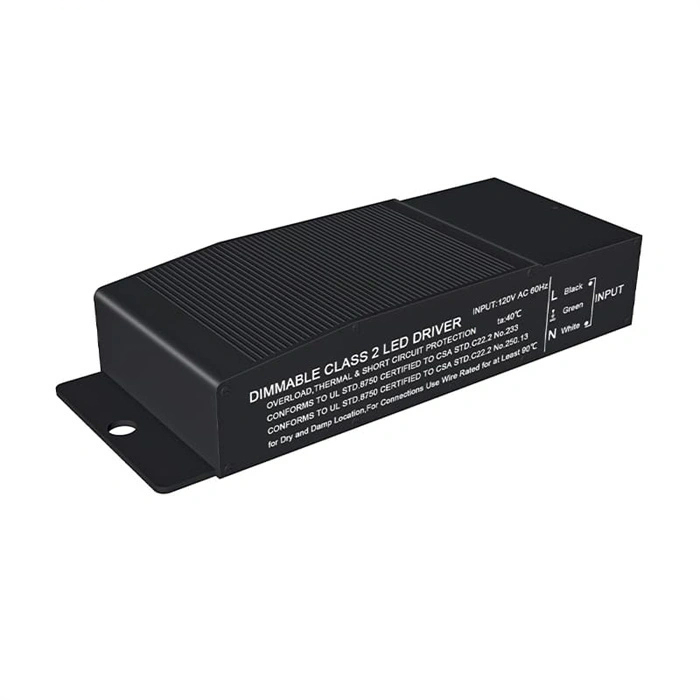

Class 2 UL cUL waterproof 24V 4A Triac Dimmable Outdoor Junction Box Led Driver

Item No.: 00547
-- UL/cUL 8750 CE Class 2
-- High PFC and Efficiency (up to 90%)
-- Metal Iron Junction Box Waterproof Design
-- Dry / Damp / Wet Location
-- Protection: OCP, OVP, SCP, OTP
-- 5 years warranty -- Flicker-free
  • Output:
    12V20W
    24V20W
    12V40W
    24V40W
    12V60W
    24V60W
    24V75W
    24V96W
  • Warranty:
    5Years
  • Color:
    White
    Black
Description Model List Product Structure Packing & Shipping
Description
Product Attributes:

Model No.ZH-DV96U24-KT

Warranty period (years)5-Year


place of originChina

Max Output Power96W

Output typeSingle

Power Supply ModeConstant Voltage Source

ColorBlack Or White

Efficiency90%

MaterialAluminum Case

ProtectionsOcp Ovp Scp

Input120vac

Dimensions LxWxH (in)6.97”×2.76”×1.38”

Power Factor@Max. Load>0.95

Output TypePwm Output

Warranty5 years

UsageOutdoor or Indoor Light

CertificationUL cUL Class 2 Class P

Envir. Protection RatingNEMA 3R / IP65

Features:

--120VAC 60Hz & 230VAC 50Hz Input

-- 12V/24V PWM Output

-- Flicker-free

-- Enclosure with junction Box

-- For forward & Recerse Phase,MLV,ELV

-- Metal Iron Junction Box IP66 Design

-- Waterproof Dry / Damp / Wet Location

-- Protection: OCP, OVP, SCP, OTP

-- 5 years warranty

-- UL/cUL 8750  Class 2, CE Approved

-- High Power factor,PF>0.95

-- Full Dimming Range:0-100%

-- Continuous & Smooth & Stable

-- NEMA 3R Rated



Constant Voltage 24V 4A 96W Triac Dimmable Outdoor Junction Box Led Driver, Input 120VAC North America waterproof led driver certified to meet UL8750 Class 2 safety approvals. The Led Power Supply use low profile aluminum case that included 2 knock-outs to enable easy installation makes led driver the power solutions for led tape/strip, modules, LED bar light. Featuring US Level VI energy efficiency standards of up to 90% and higher, Nema 3R environment Protection Rating, dimmable Led Driver Power Supply can outdoor use and provide outstanding led dimming peformance.


Connect Drawing:


Model List
Product Model Number Max.Watts Output Voltage(V) Output Current(A) Effciency Warranty Certificate
ZH-DV20U12-KT 20W 12V 1.7A 90%
5 Years

UL/cUL 8750 CE Class2
ZH-DV20U24-KT
20W 24V 0.84A 90%
5 Years
ZH-DV40U12-KT 40W 12V 3.34A 90% 5 Years
ZH-DV40U24-KT
40W 24V
1.67A
90%
5 Years
ZH-DV60U12-KT
60W
12V
5.0A
90%
5 Years
ZH-DV60U24-KT
60W
24V
2.5A
90%
5 Years
ZH-DV75U24-KT
75W
24V
3.13A
91%
5 Years
ZH-DV96U24-KT 96W
24V 4.0A
91%
5 Years

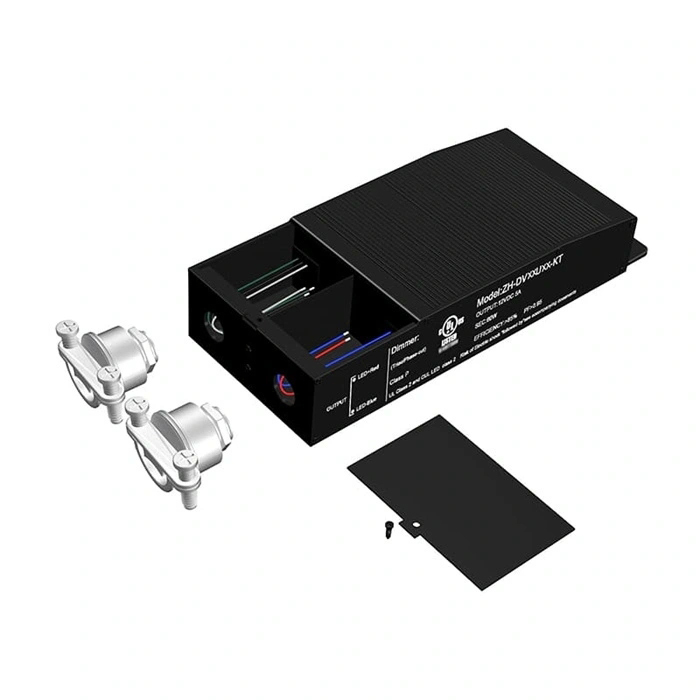

Product Structure

Packing & Shipping
Packing Info: Pcs/CTN Dimension/Carton Dimension/unit Weight/CTN Weight/pcs
OEM package 25Pcs 42*25*24.5cm 229*78*45mm 19Kg 0.72Kg
