Product Description

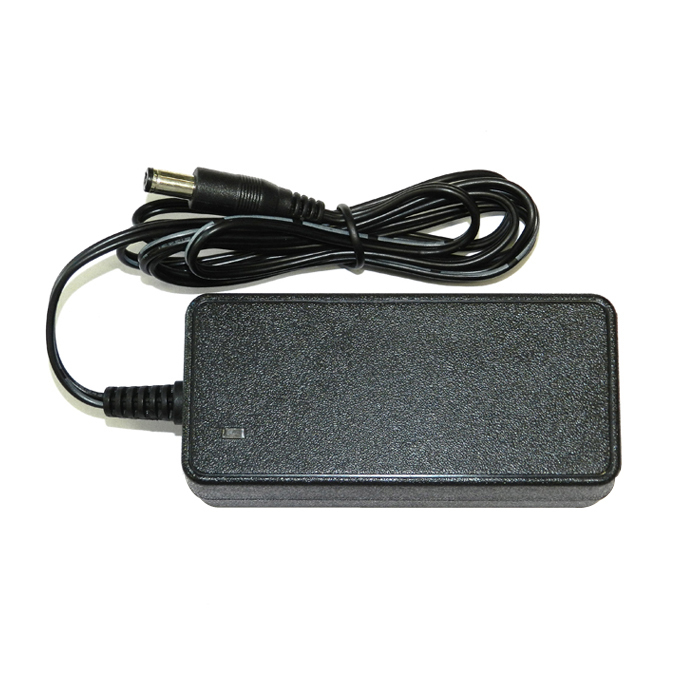

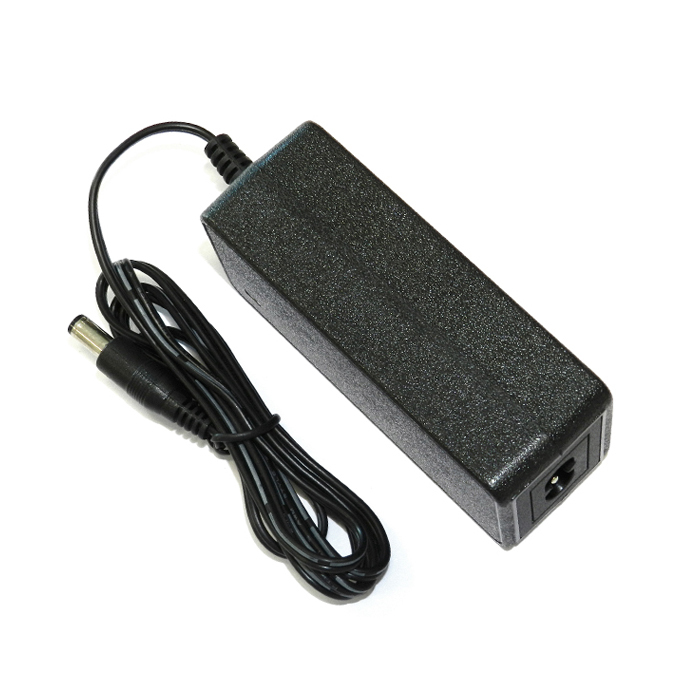

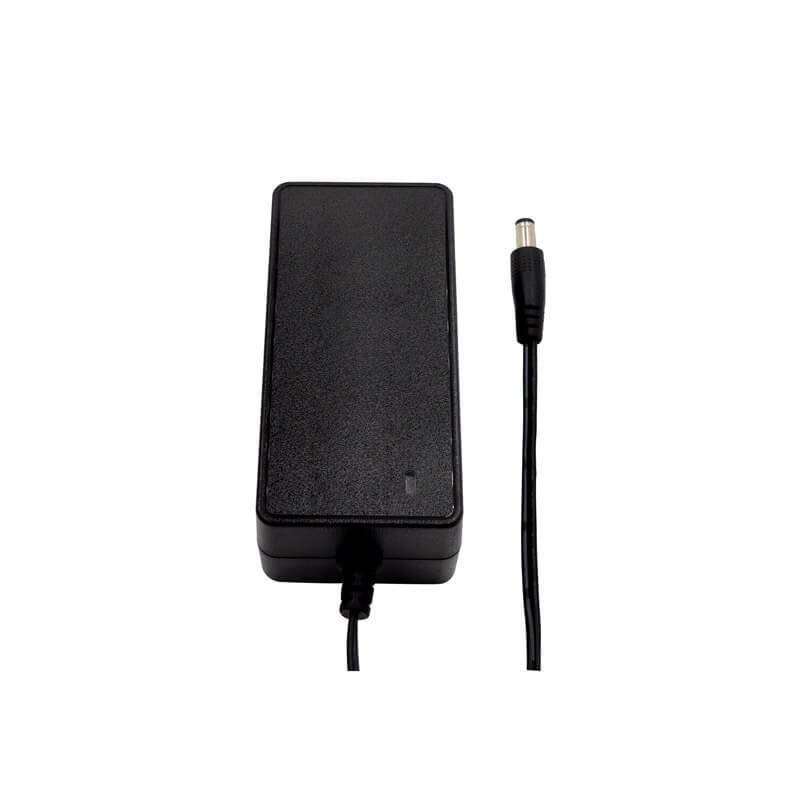

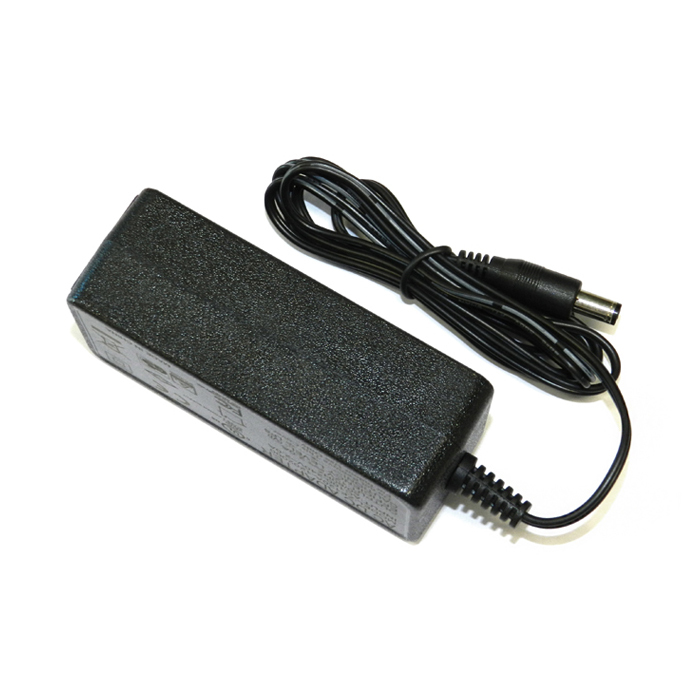

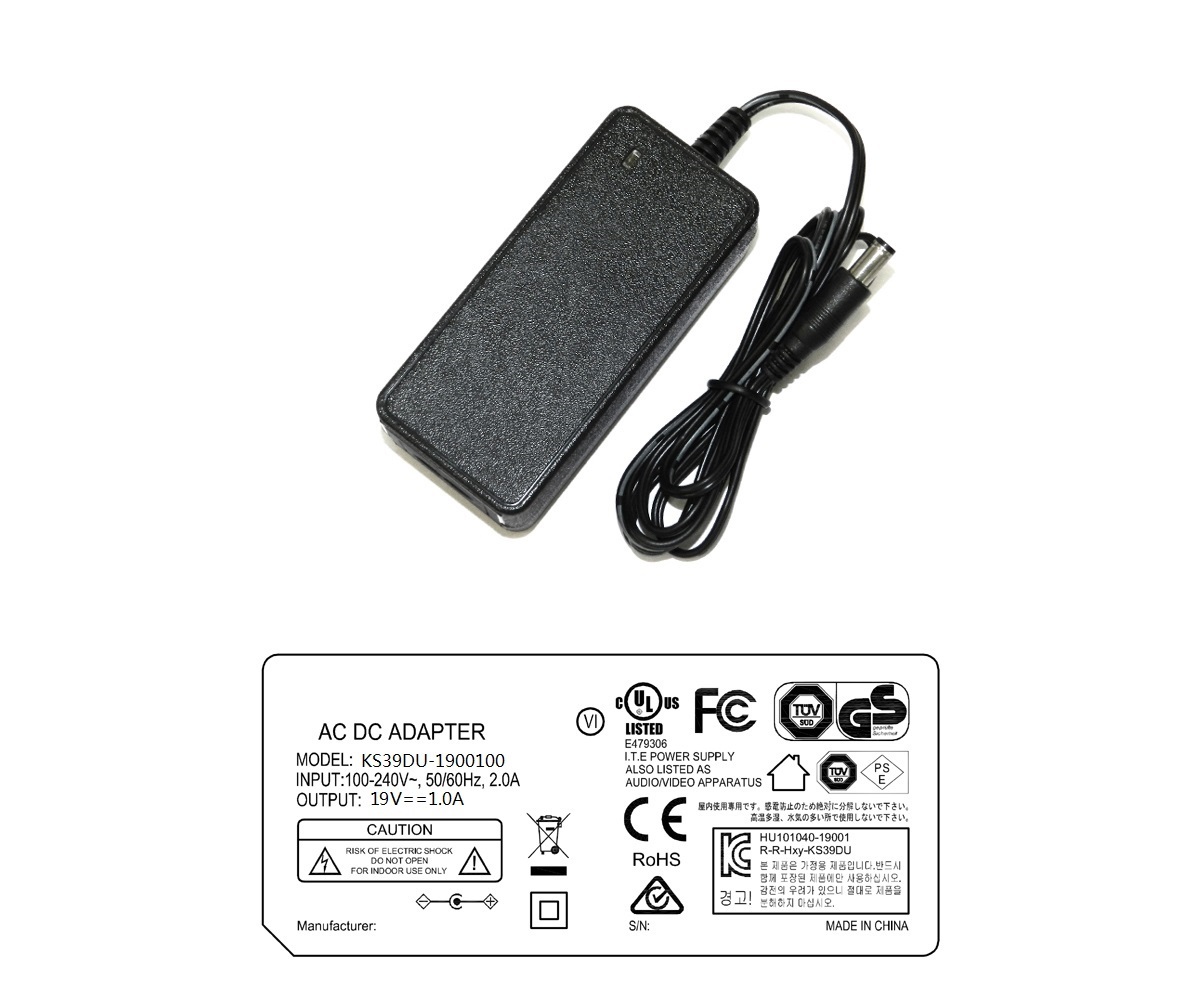

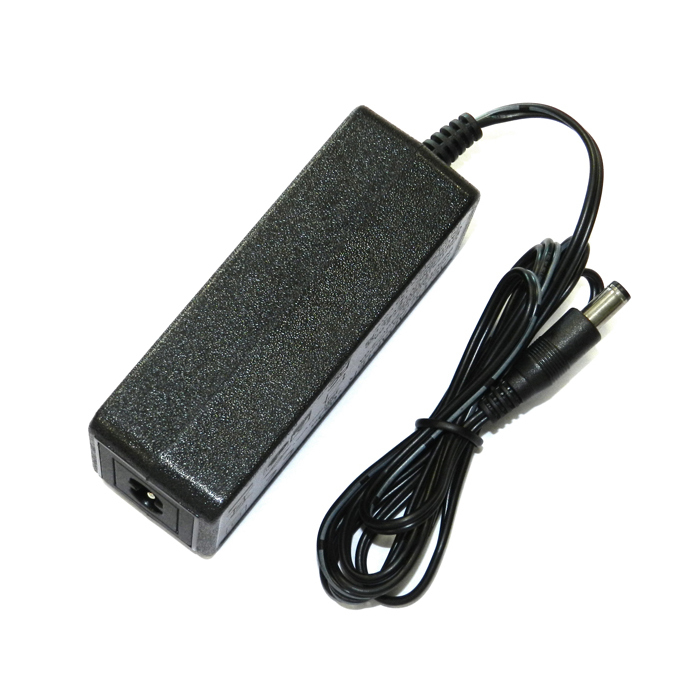

Desktop style, 19V 1.0A 19W universal ac input 100vac to 240vac single output Power Supplies with UL/cUL FCC PSE CE GS RCM safety approvals. The Power Adapter is designed to meet US DoE Level VI energy efficiency standards and equipped with three standard AC inlets options for IEC320-C6, IEC320-C8 and IEC320-C14. This Power Adaptor laptop adopts the eco-friendly PC flame retardant plastic housing that the adapters can effectively prevent customers from electric hazard.
Features
◆ Desktop style, up to 19W continuous power
◆ Universal AC input/ Full range
◆ Level VI energy efficiency
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin): IEC320-C8;
ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14
◆ Class 2 power units
◆ Pass LPS (Limited power source)
◆ Compact Size, fully enclosed plastic case
◆ LED indicator for power on
◆ 100% full load burn-in test
◆ 3 years Warranty
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
|
Input: |
100-240V AC±10％50 / 60Hz |
|
Work Environment: |
0℃-40℃5％-90％RH |
|
Storage Environment: |
-20℃-85％℃5％-95％RH |
|
Energy Efficiency: |
Level VI |
|
No Load Power Consumption: |
<0.1〜0.21W |
|
Ripple & Noise(max): |
<120mVp-p |
|
Line Regulation: |
±2％ |
|
Load Regulation: |
±5％ |
|
Material: |
PC + ABS |
|
Dimension(L*W*H): |
95*45*32（mm） |
|
AC Inlet: |
C8 / C14 / C6 optional |
|
Color: |
Black/White |
|
Safety Certificates： |
UL CUL CE KC TUV GS SAA RCM CB FCC RoHS PSE CCC VI |
|
Safety Standards： |
UL1310, UL62368, CSA22.2, TUV IEC/EN62368, AS/NZS 62368, GB4943, J62368(H22), K60950 |
| Packing Info: | Pcs/CTN | Dimension/Carton | Dimension/unit | Weight/CTN | Weight/pcs |
| Adapter | 50Pcs | 45.5*37*17.5cm | 155*85*35mm | 9Kg | 0.17KG |

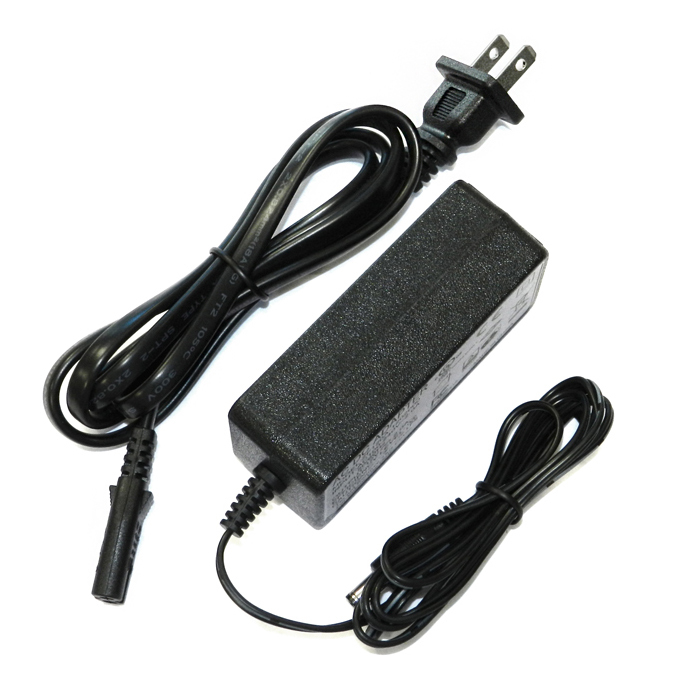

| Adapter+2Prong AC cable | 50Pcs | 50.0*42*17cm | 150*95*40mm | 13Kg | 0.24KG |
| Adapter+3Prong AC cable | 50Pcs | 50.0*42*20cm | 180*120*40mm | 16.5Kg | 0.3KG |
