Product Description

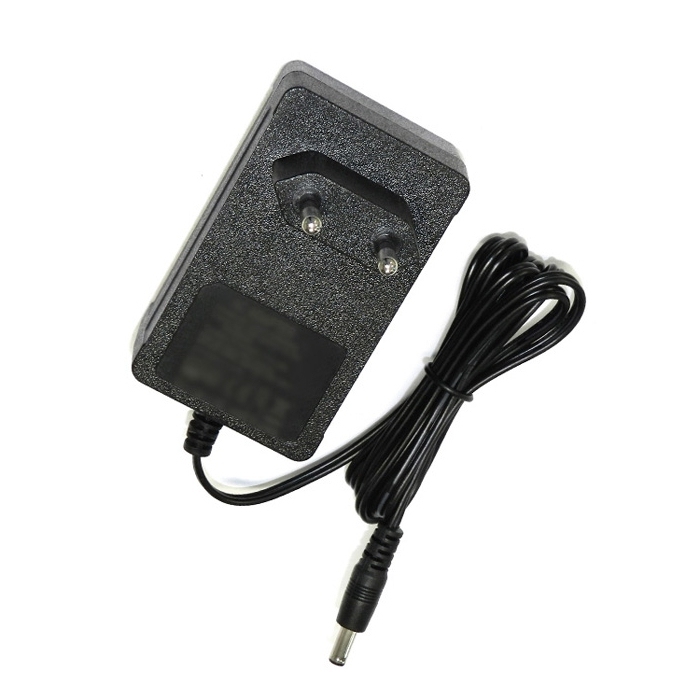

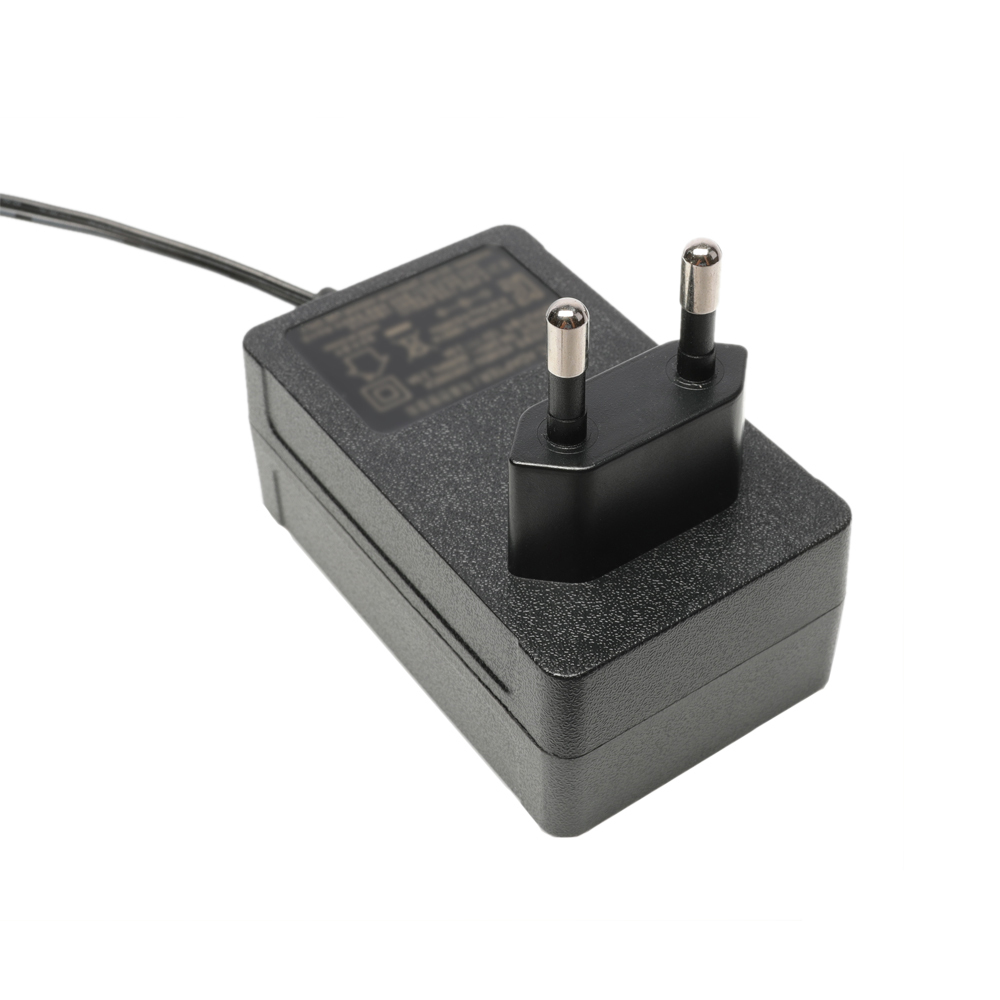

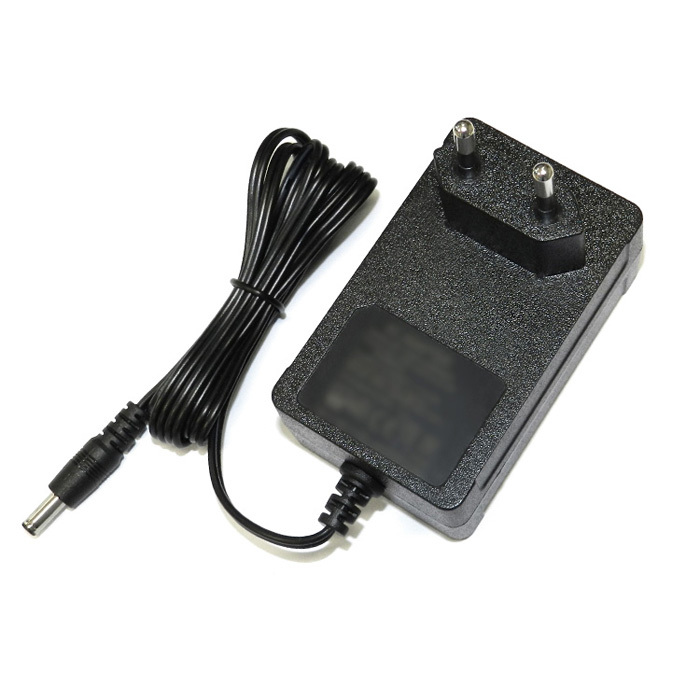

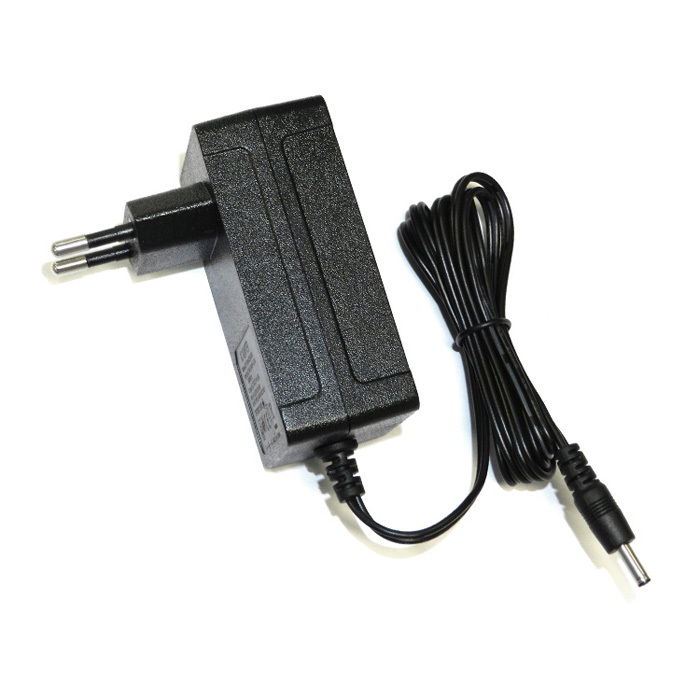

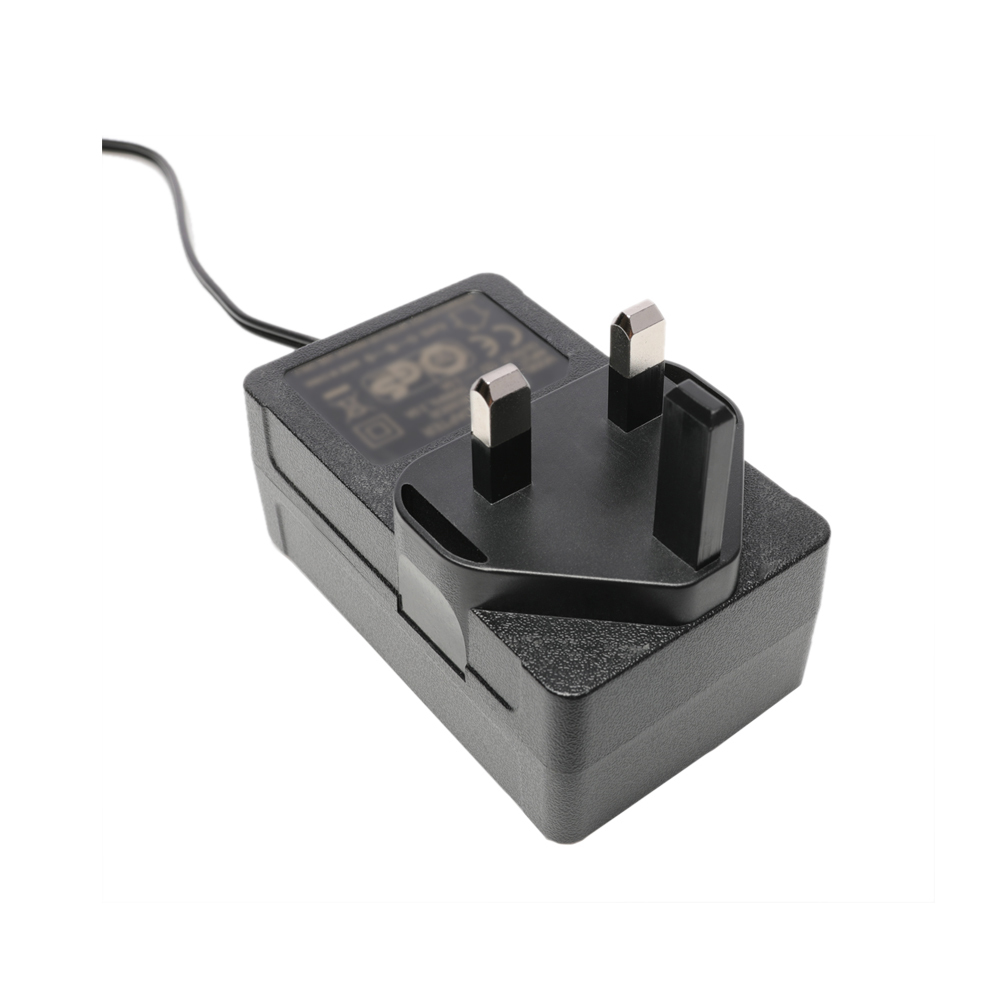

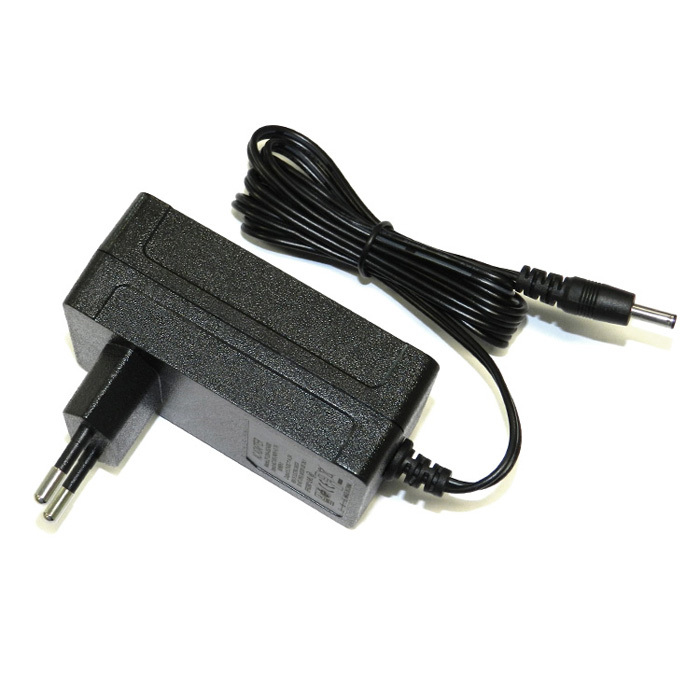

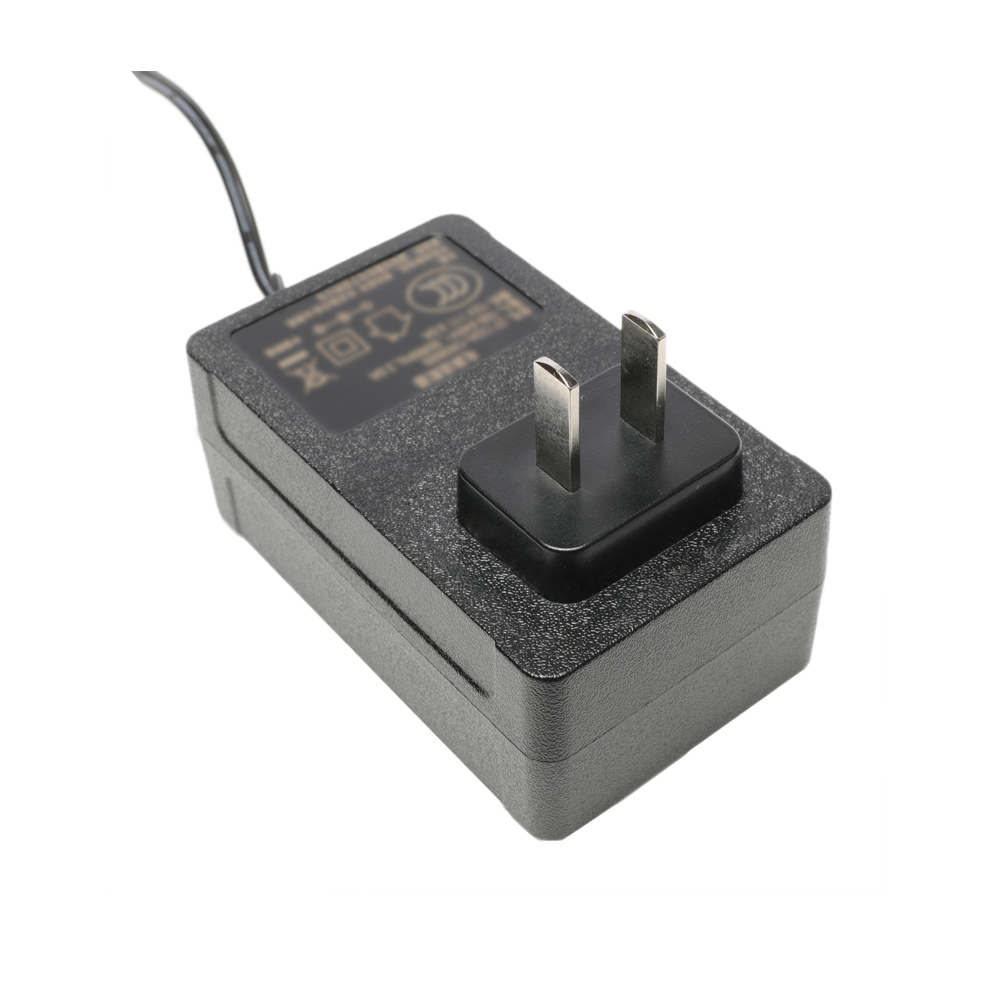

24V 1A 24W wall mounted Adapter. US AUS UK EU CN KR JP ac plug can choose.This safety mark Power Supply is equipped with an AC plug EU type and Class 2 rated without earth pin, accepting the universal AC input voltage range. Featuring the working efficiency of level VI, low no-load power consumption below 0.1W, Universal AC DC Adapter provides safety protections for over current, over voltage and short circuit.
Features
◆ 24V 1A 24W wall mounted Adapter
◆ Universal AC input/ Full range
◆ Level VI energy efficiency
◆ Protections: Short circuit / Over voltage / Over current
◆ Compact Size, fully enclosed plastic case
◆ LED indicator for power on
◆ 100% full load burn-in test
◆ 3 years Warranty
Model No.: KS39DU-2400100
place of origin: China
Output type: DC
Connection method: wall-mounted
Usage: Laptop LED LCD...
Output Type: Single Output
Certification: TUV GS UL CE KC PSE CCC UKCA...
Color: Black / White
Type: OEM
Connection: Desktop
Warranty: 3 Years
Material: PC
Input: 100-240VAC 50-60HZ
Efficiency: Level VI
Protections: OCP OVP SCP
DC Connector: Male 5.5*2.5mm Or Custom
DC Cord: 1.2m Or Custom
AC Plugs: US/ UK/ AU/ EU/ KR/ CN (optional)
Input: |
100-240V AC±10%50 / 60Hz |
Work Environment: |
0℃-40℃5%-90%RH |
Storage Environment: |
-20℃-85%℃5%-95%RH |
Energy Efficiency: |
Level VI |
No Load Power Consumption: |
<0.1〜0.21W |
Ripple & Noise(max): |
<120mVp-p |
Line Regulation: |
±2% |
Load Regulation: |
±5% |
Material: |
PC + ABS |
Dimension(L*W*H): |
77*47*31(mm) |
AC plug: |
US UK EU AUS KR CN JP optional |
Color: |
Black/White |
Safety Certificates: |
UL CUL CE KC TUV GS SAA RCM CB FCC RoHS PSE CCC VI |
Safety Standards: |
UL1310, UL62368, CSA22.2, TUV IEC/EN62368, AS/NZS 62368, GB4943, J62368(H22), K60950 |
Packing Info: | Pcs/CTN | Dimension/Carton | Dimension/unit | Weight/CTN | Weight/Pcs |
Adapter | 60Pcs | 36*35.2*25cm | 105*44*82mm | 11Kg | 0.155Kg |
